Introduction

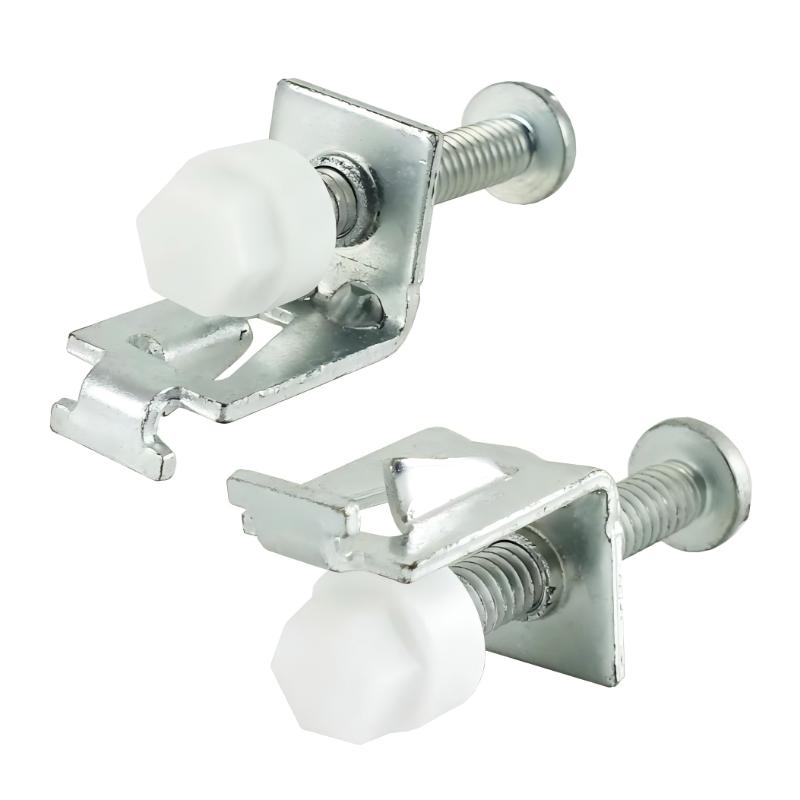

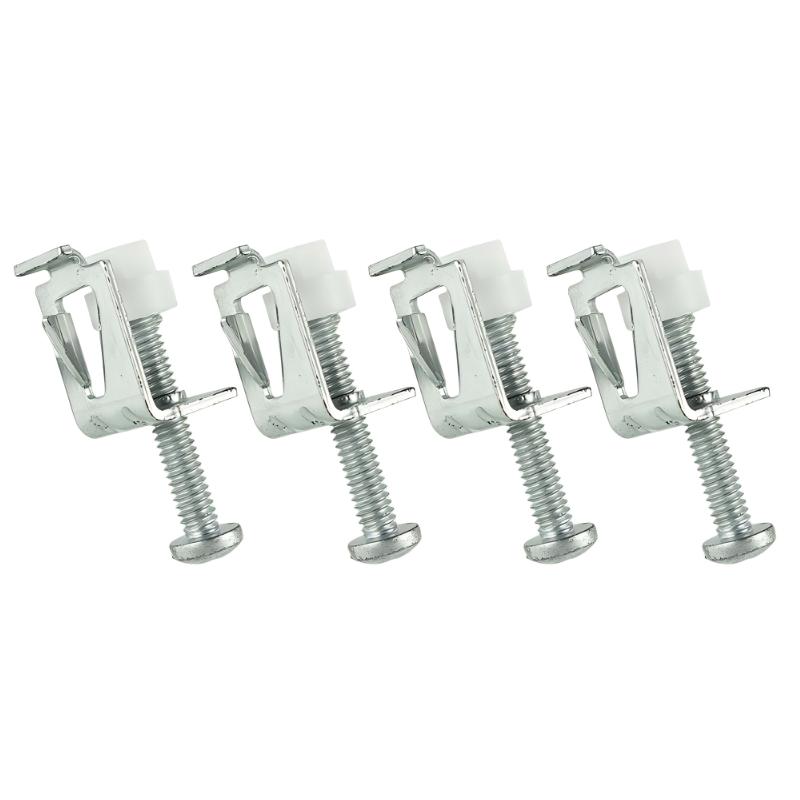

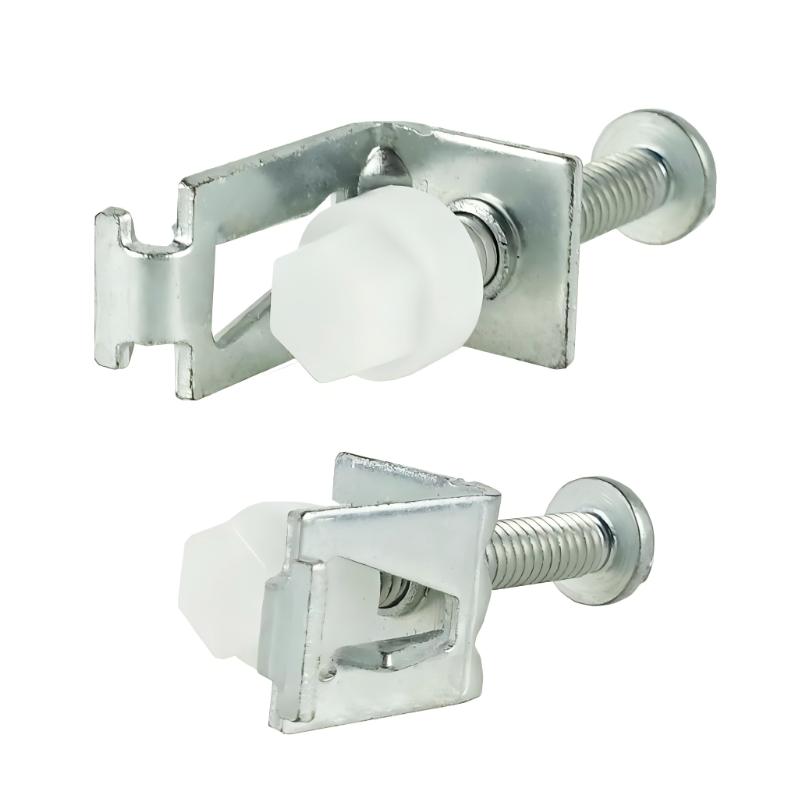

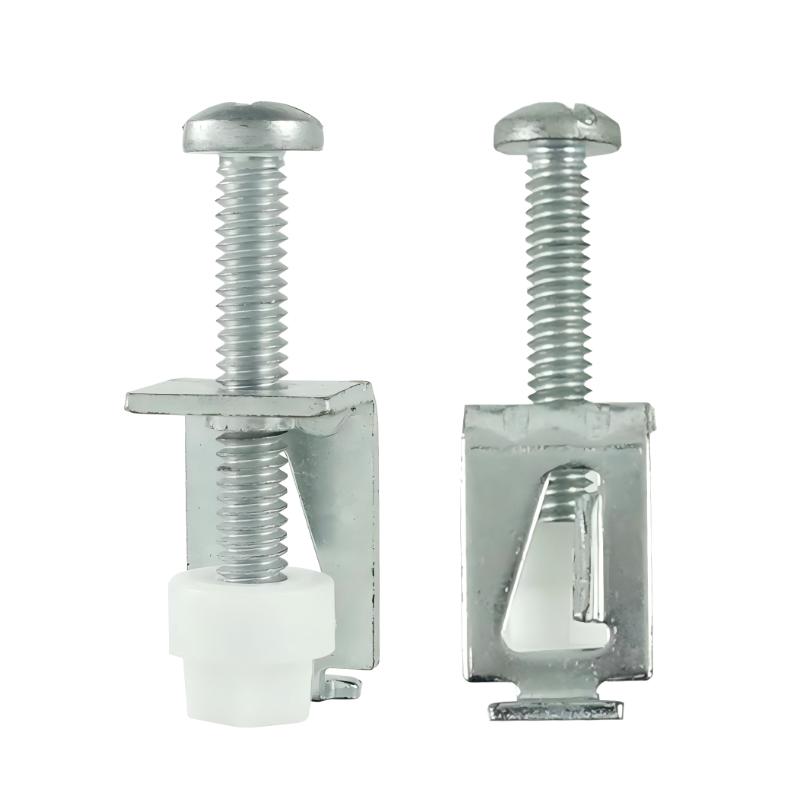

The Allen Bradley 77158-008-51 Mounting Clip Kit offers a compact, efficient solution for securely mounting control modules in industrial panels. Its robust polymer construction and snap-in design simplify installation, reduce downtime, and improve overall system organization. Though small in size, this clip kit ensures maximum stability and reliability for demanding automation environments.

Technical Specifications

Specification	Details
Dimensions	65 x 15 x 30 mm
Weight	0.09 kg (0.20 lb)
Material	High-strength polymer
Mounting Type	Snap-in, reusable
Orientation	Vertical or horizontal
Operating Temp	-20°C to +70°C

Applications

The Allen Bradley 77158-008-51 Mounting Clip Kit is engineered for industrial control systems where secure and efficient module installation is essential. It is ideal for:

Fast and reliable mounting of PLC and I/O modules
Organizing dense control panel layouts
Facilitating retrofits and upgrades without extensive rework
Ensuring stability in vibration-prone environments

This clip kit simplifies installation, reduces downtime, and maintains proper alignment of modules in automation panels.

Advantages

Snap-in design for rapid deployment without tools
Reusable and durable polymer construction
Maintains module stability under vibration and mechanical stress
Compact size saves panel space
Compatible with a wide range of Allen Bradley control modules

The 77158-008-51 provides a practical solution to optimize control panel assembly while improving long-term system reliability.

Technical FAQs

Which Allen Bradley modules is this clip compatible with?
It fits standard PLC and I/O modules commonly used in industrial automation.
Can the clips be reused after removal?
Yes, they are designed for multiple reuse cycles without losing strength.
What is the clip material and durability?
Made from high-strength industrial-grade polymer, resistant to wear and temperature fluctuations.
Is it suitable for high-vibration environments?
Yes, it provides secure retention even under continuous vibrations.
Does installation require any tools?
No, clips snap directly into place, reducing installation time.
Can it be mounted in both vertical and horizontal orientations?
Yes, the clips offer flexible mounting options.
What is the operational temperature range?
-20°C to +70°C, making it suitable for most industrial settings.
Are replacement clips available separately?
Yes, individual clips can be purchased for maintenance or expansion.
Will it affect electrical connections?
No, this is a purely mechanical mounting accessory.
Can it be used in retrofitted panels?
Absolutely, it adapts to existing installations for upgrades or rearrangements.
