Introduction

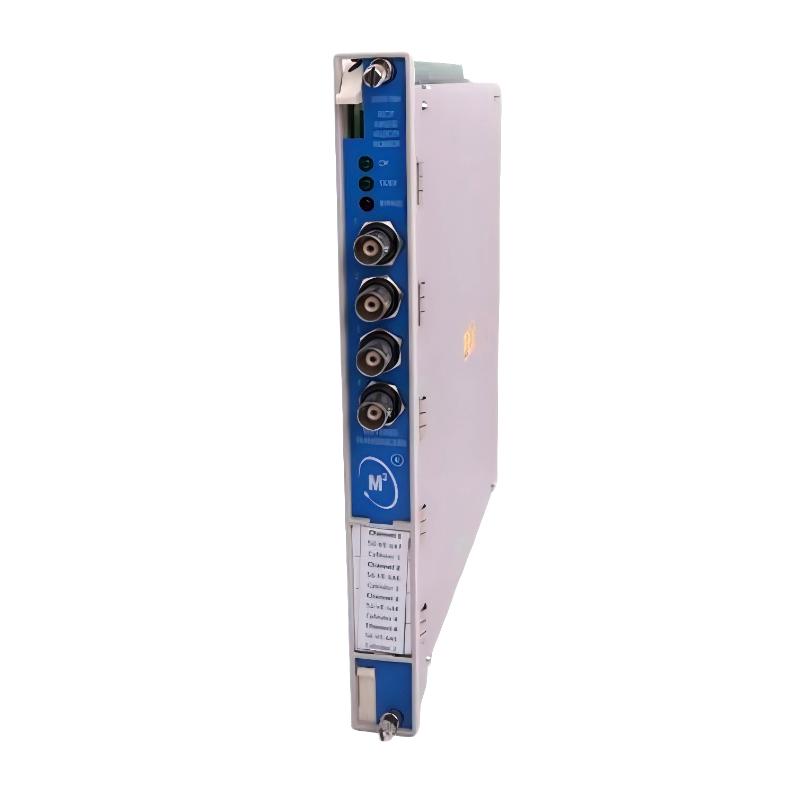

The Bently Nevada 3500/70M Reciprocating Pulse Velocity Monitor provides high-precision monitoring of reciprocating machinery motion. Its ability to capture pulse velocity data enables predictive maintenance, early fault detection, and enhanced machinery protection. With a robust and compact design, it integrates seamlessly into 3500 system racks, ensuring continuous and reliable monitoring for critical industrial equipment.

Technical Specifications

Specification Item	Description
Product Type	Reciprocating Pulse Velocity Monitor
Model	3500/70M
Part Number	176449-09
Dimensions	241.3 × 24.4 × 241.8 mm
Weight	0.91 kg
Primary Function	Measure pulse velocity of reciprocating machinery components
Installation Method	3500 system rack mounting
Operating Mode	Continuous industrial operation
System Compatibility	Bently Nevada 3500 series
Application Environment	Industrial machinery vibration monitoring
Construction	Industrial-grade monitoring module

Recommended Related Models

Bently Nevada 3500/70 Reciprocating Rod Position Monitor
Bently Nevada 3500/33 Proximity Probe Module
Bently Nevada 3500/22M Transient Data Interface Module

Popular Related Models

Bently Nevada 3500 Series Condition Monitoring Modules
Bently Nevada Reciprocating Machinery Protection Systems
Bently Nevada Industrial Vibration Monitoring Modules

Applications

The Bently Nevada 3500/70M Reciprocating Pulse Velocity Monitor is engineered to measure the dynamic velocity of reciprocating machinery components in real time. It is essential for compressors, pumps, and other reciprocating equipment where vibration monitoring helps detect mechanical faults early and ensures optimal performance. Typical applications include industrial process plants, power generation facilities, and any system requiring high-precision vibration and velocity monitoring for machinery protection.

Advantages

High-Precision Pulse Velocity Monitoring: Provides accurate measurements of reciprocating machinery motion.
Enhanced Machinery Protection: Early detection of abnormal vibration prevents mechanical damage and downtime.
Compact Industrial Form Factor: Dimensions of 241.3 × 24.4 × 241.8 mm allow seamless integration into 3500 system racks.
Reliable Industrial Design: Built for continuous operation in demanding industrial environments.
System Integration Ready: Fully compatible with other Bently Nevada 3500 series monitoring modules.

Technical FAQs

What is the primary function of the 3500/70M module?
It monitors pulse velocity of reciprocating machinery components to detect abnormal movement.
Which systems typically use this module?
Bently Nevada 3500 monitoring systems for reciprocating compressors, pumps, and industrial machinery.
Is it suitable for continuous operation?
Yes, engineered for 24/7 industrial use.
Does it support predictive maintenance?
Yes, by providing real-time velocity data for early fault detection.
Where is it installed?
Mounted in 3500 system racks as part of the machinery monitoring system.
Can it improve operational safety?
Yes, by alerting operators to abnormal vibration or velocity conditions.
Does it integrate with other 3500 series modules?
Yes, fully compatible within the 3500 system architecture.
What are the physical dimensions of the module?
241.3 × 24.4 × 241.8 mm.
What is the approximate weight?
Approximately 0.91 kg.
Is it designed for industrial-grade reliability?
Yes, built to withstand harsh operational environments.
