Introduction

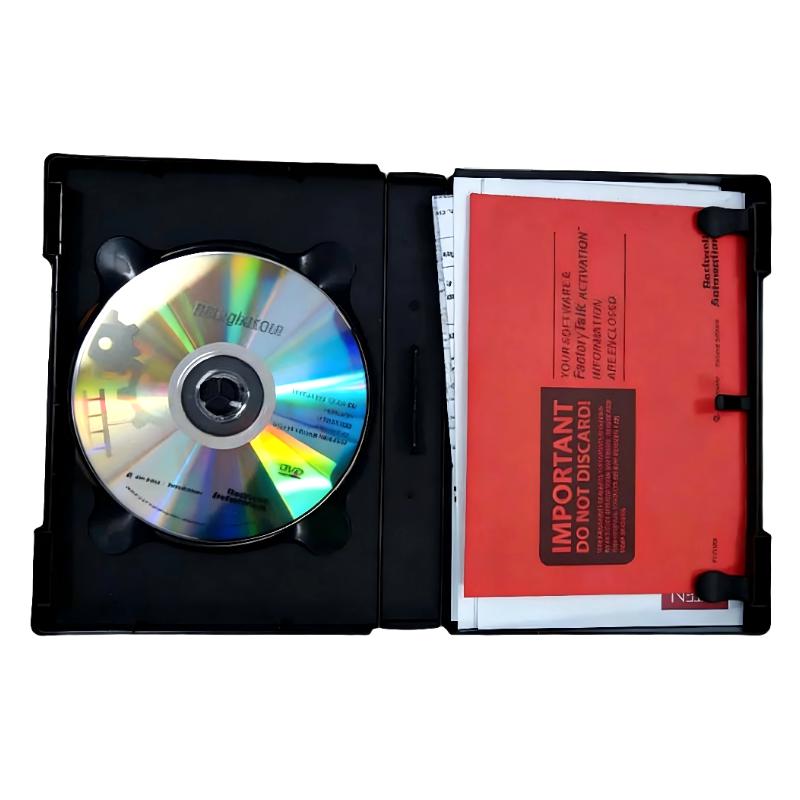

The Allen Bradley 9324-RLD200ENE Studio 5000 Mini Software is a lightweight yet powerful tool for industrial automation programming. It combines essential programming, configuration, and troubleshooting features in a compact package suitable for engineers, technicians, and field service personnel. Designed for seamless integration with Allen Bradley controllers, it ensures efficient development and reliable operation of automation systems.

Technical Specifications

Specification	Details
Product Type	Mini Software
Manufacturer	Allen Bradley
Model Number	9324-RLD200ENE
Dimensions	110 x 25 x 90 mm
Weight	0.14 kg (0.31 lb)
Function	PLC Programming and Configuration
Supported Controllers	CompactLogix, MicroLogix
Operating System	Windows
Installation Type	Standalone or Workstation
Deployment	Field and Office Use

Applications

The Allen Bradley 9324-RLD200ENE Studio 5000 Mini Software is designed to streamline programming, configuration, and maintenance of Allen Bradley automation systems. It is ideal for:

Programming and configuring CompactLogix and MicroLogix controllers
Developing, debugging, and testing PLC applications
Managing control routines for small to mid-sized automation projects
Updating and maintaining industrial control software efficiently
Integrating with Studio 5000 environments for consistent project workflows

This software enables engineers and technicians to reduce development time while ensuring reliable control system operation.

Advantages

Intuitive interface for rapid programming and configuration
Compact installation footprint suitable for laptops or workstations
Supports essential Studio 5000 functionality in a mini edition
Reduces commissioning time for new automation projects
Provides easy project backup, download, and troubleshooting tools
Compatible with Allen Bradley controllers, ensuring smooth integration

The 9324-RLD200ENE Mini Software offers a balance of lightweight deployment and professional-grade functionality, making it ideal for field engineers and control system developers.

Technical FAQs

Which controllers are compatible with this software?
Primarily CompactLogix and MicroLogix controllers that support Studio 5000 projects.
Can it run on standard Windows laptops?
Yes, it is optimized for Windows-based systems meeting the minimum hardware requirements.
Does it include full Studio 5000 functionality?
It includes core programming and configuration features suitable for small to medium projects.
Is project backup supported?
Yes, users can backup, export, and restore projects within the software environment.
Can it be used offline without network connectivity?
Yes, the software can operate offline for programming and project preparation.
Does it support ladder logic and structured text programming?
Yes, it supports ladder logic, structured text, and basic function block programming.
Is it suitable for commissioning new systems?
Yes, it provides tools for download, testing, and verification of control systems.
Can it manage multiple projects simultaneously?
Yes, users can open and work on multiple projects within the software interface.
Does it include troubleshooting tools?
Yes, it offers online monitoring, debugging, and diagnostics tools for efficient troubleshooting.
Is it compatible with older PLC hardware?
It supports controllers that are compatible with Studio 5000 Mini edition, generally including recent MicroLogix and CompactLogix models.
