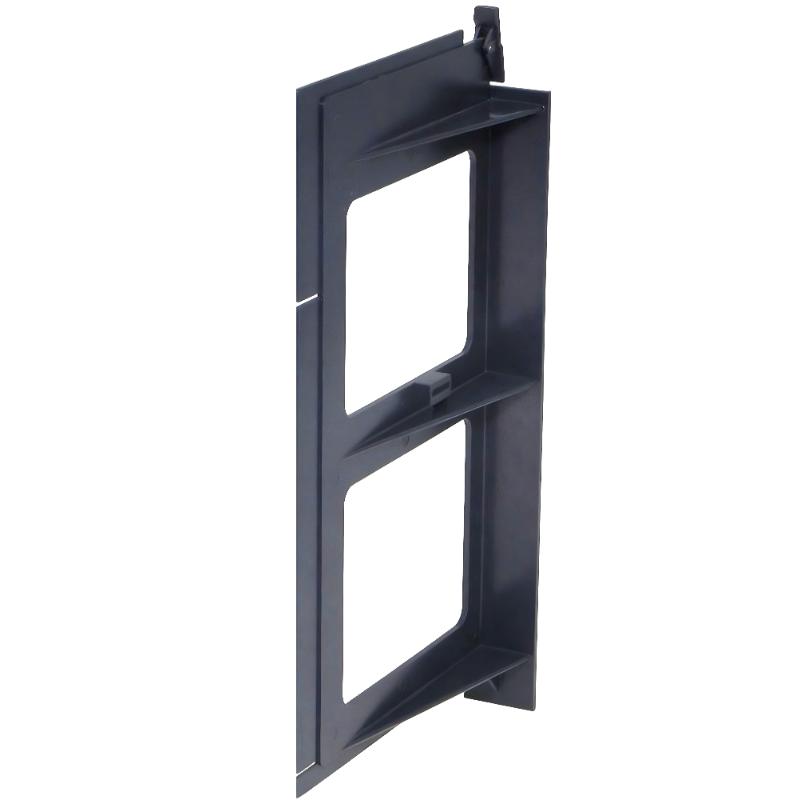

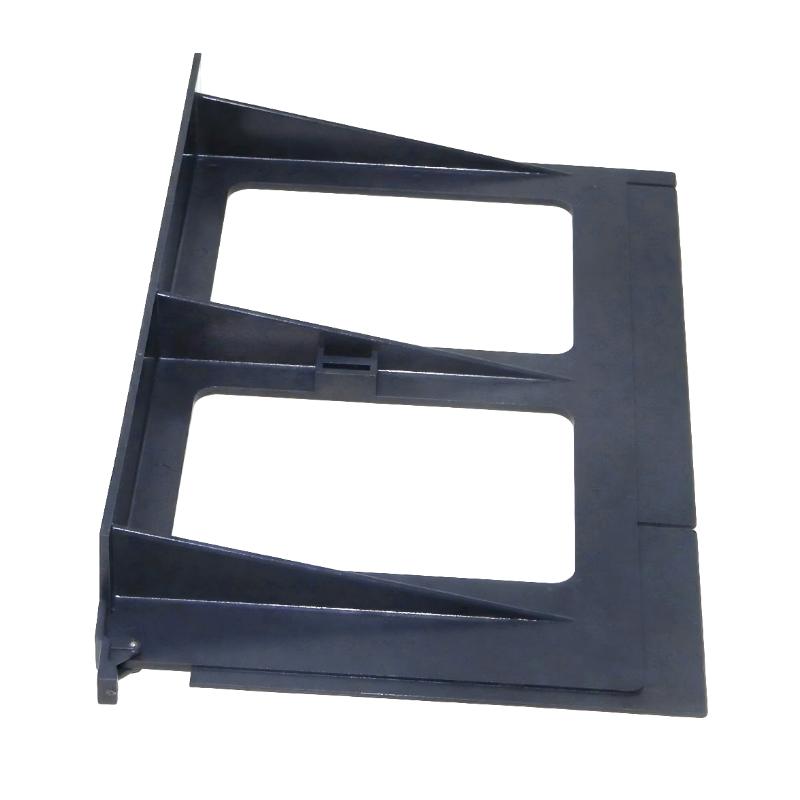

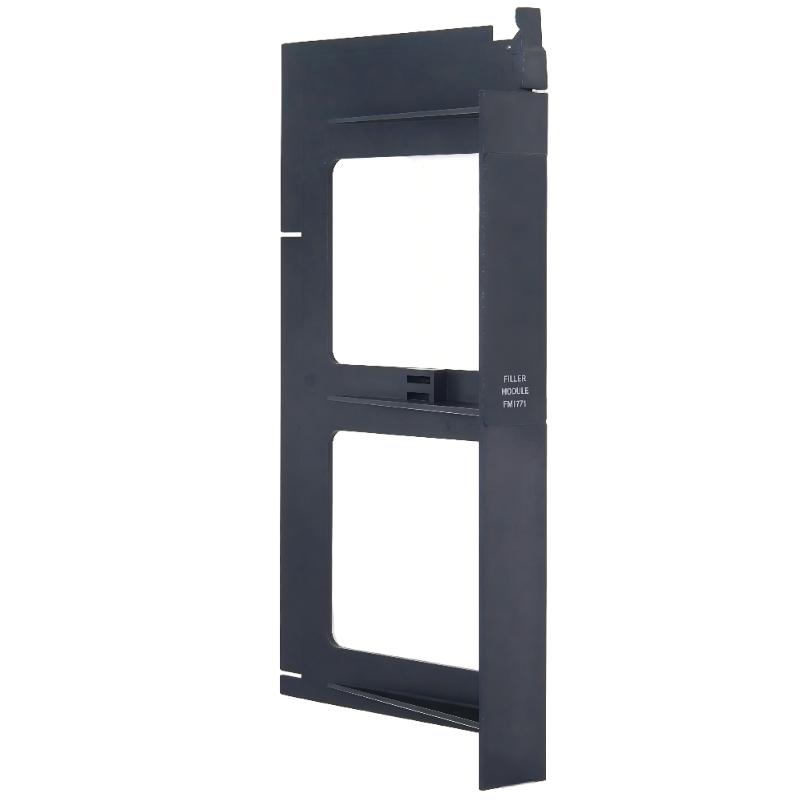

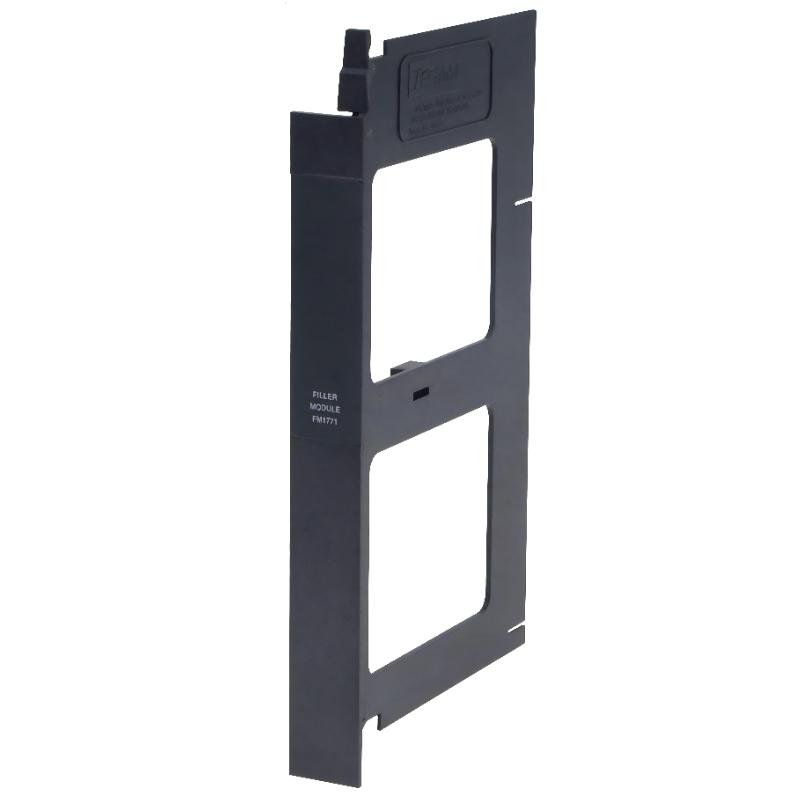

Allen Bradley FM1771 Empty Slot Filling Card

Applications

The Allen Bradley FM1771 Empty Slot Filling Card is designed to maintain system integrity in industrial control racks and chassis when unused slots are present. Its applications include:

• Preventing dust, debris, and contaminants from entering empty module slots
• Ensuring proper airflow and thermal management in control racks
• Maintaining electrical isolation and system safety
• Supporting PLC and I/O chassis maintenance and expansion
• Temporary or permanent slot coverage in industrial automation systems

This card provides a simple yet critical solution to protect your control system hardware and maintain optimal operational conditions.

Advantages

• Protects unused slots from dust and foreign material
• Maintains proper cooling and airflow within the chassis
• Preserves electrical isolation for system safety
• Simple plug-in design for quick installation
• Lightweight, durable construction for long-term use
• Ensures consistent rack appearance and organization

The FM1771 card helps extend the lifespan of your equipment and prevents potential damage from environmental factors or accidental contact.

Technical FAQs

1. What is the primary purpose of the FM1771 card?
   To fill empty slots in a control chassis and maintain system protection and airflow.
2. Is it compatible with all Allen Bradley racks?
   It is designed specifically for FM1771 series control racks and compatible chassis.
3. Does it provide electrical connectivity?
   No, it is a passive slot filler providing protection and airflow management.
4. Can it be used in high-vibration environments?
   Yes, it is securely fitted to maintain position even in industrial machinery settings.
5. Is the installation tool-free?
   Yes, the card is designed to snap into place without requiring tools.
6. Does it affect system cooling?
   No, it actually helps maintain proper airflow by guiding cooling within the chassis.
7. Can multiple cards be used simultaneously?
   Yes, each empty slot should have a filler card for consistent protection and airflow.
8. Is the card reusable if removed?
   Yes, it can be reused when slots become available again.
9. Does it support hot-swapping?
   The card can be installed or removed while the system is powered off; hot-swapping is not required.
10. What environments is it suitable for?
    Industrial automation and manufacturing environments with FM1771 series control racks.
