Introduction

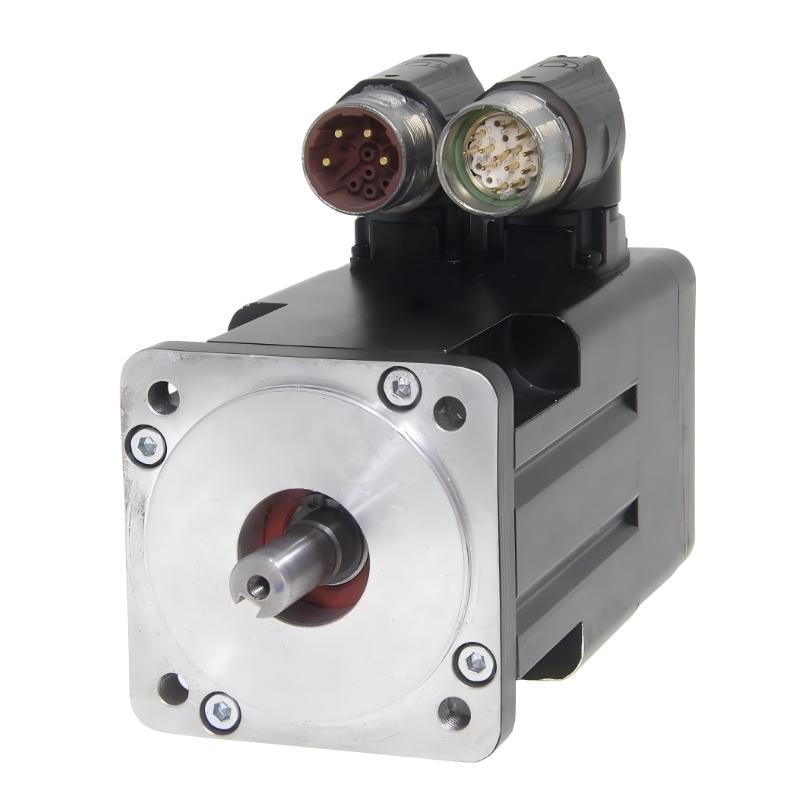

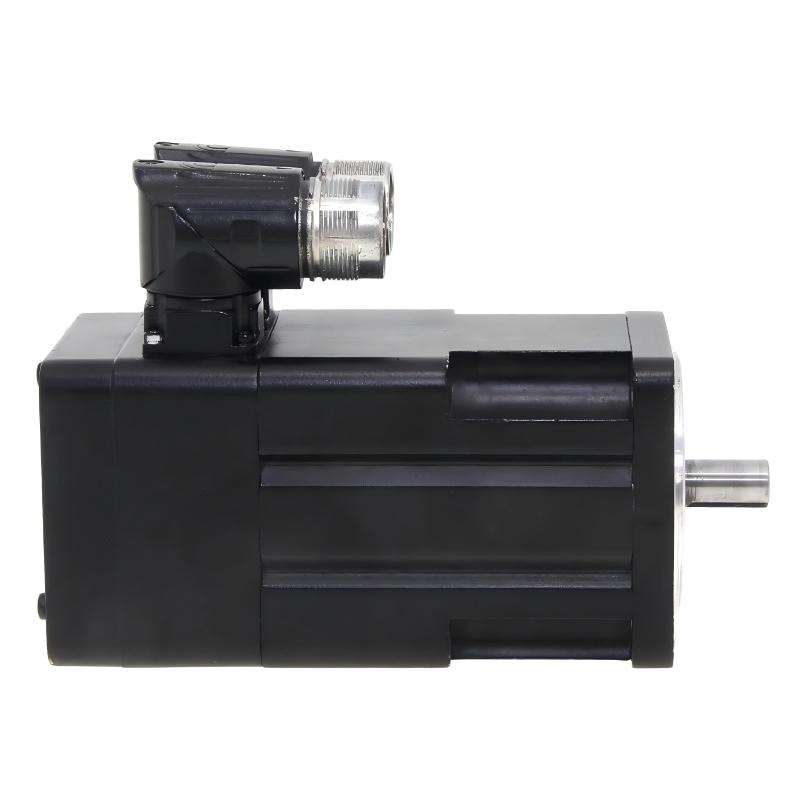

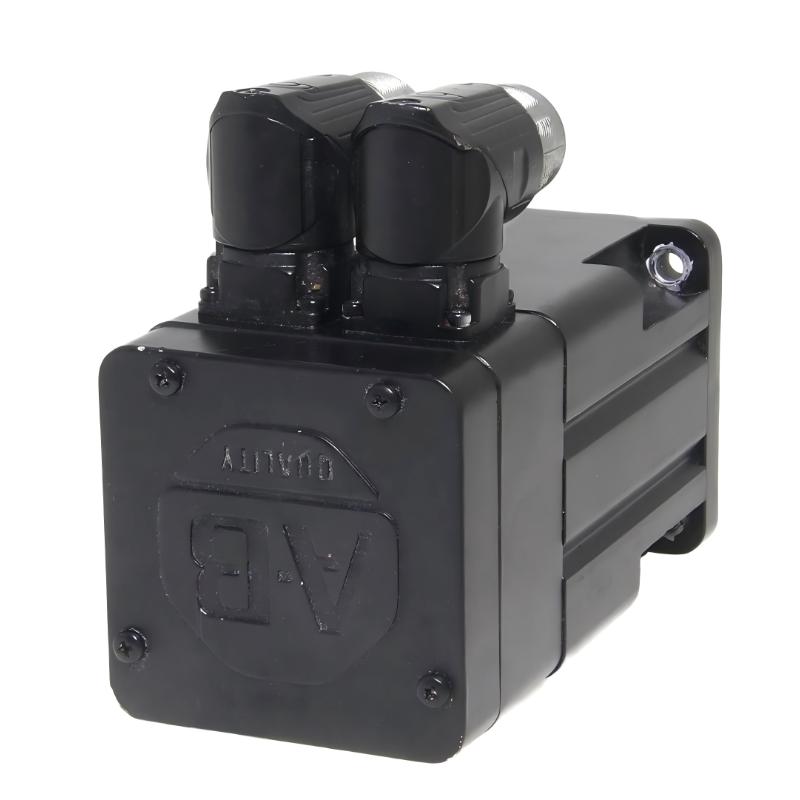

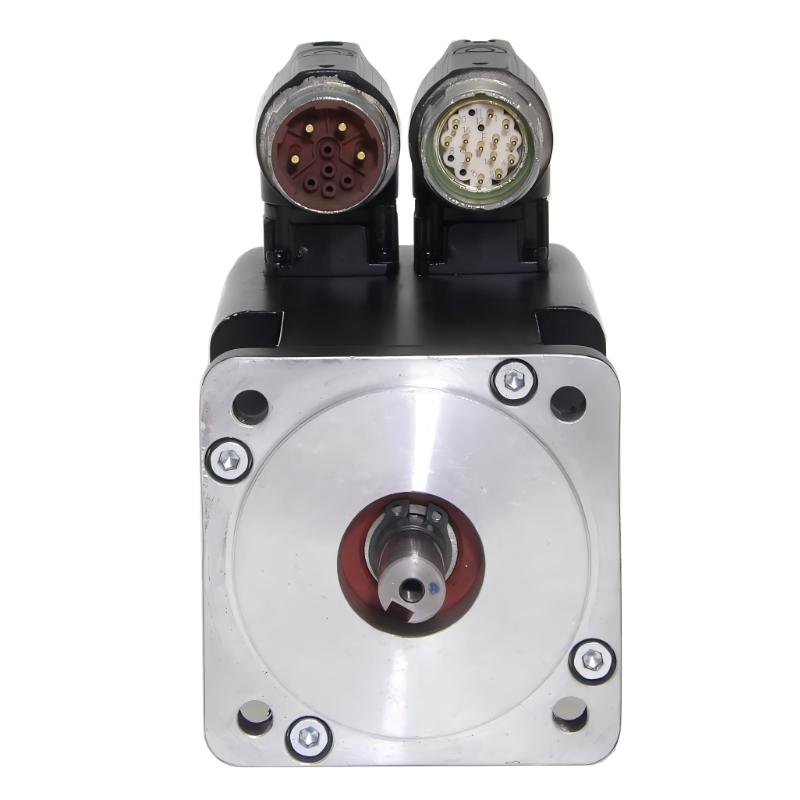

The Allen Bradley MPL-B220T-HJ72AA Servo Motor is part of the MP-Series low-inertia motion control family, designed to deliver high-speed precision and reliable torque performance in demanding industrial environments. Its 75 mm frame size makes it ideal for compact automation systems that require both fast response and accurate positioning.

Built for integration with modern servo drive systems, this motor provides consistent performance in applications where motion quality directly influences productivity and system stability.

Technical Specifications

Specification	Details
Product Type	AC Servo Motor
Series	MP-Series MPL
Frame Size	75 mm
Rated Voltage	460 VAC
Rated Speed	6000 RPM
Feedback Type	High-resolution encoder
Brake	Optional / variant dependent
Mounting Type	IEC flange mount
Protection Class	Industrial-grade enclosure
Weight	2.0 kg (4.41 lb)
Application	Precision industrial motion control

Applications

The Allen Bradley MPL-B220T-HJ72AA Servo Motor is designed for high-performance motion control in industrial automation systems requiring precise positioning, fast dynamic response, and stable torque output. With a 75 mm frame size, it is commonly used in compact, high-speed machinery.

High-speed packaging and labeling systems
CNC machining and precision motion platforms
Robotic pick-and-place and assembly equipment
Conveyor synchronization and indexing systems
Electronic manufacturing automation lines
General-purpose servo-driven industrial machinery

This motor is engineered for applications where responsiveness and positional accuracy directly impact production efficiency and product quality.

Advantages

Low-inertia design for rapid acceleration and deceleration
High-resolution feedback for precise motion control
Compact 75 mm frame suitable for space-limited installations
Optimized for integration with Allen Bradley Kinetix servo drives
Smooth torque output for stable high-speed operation
Industrial-grade construction for continuous-duty environments
Excellent dynamic response for fast cycle-time applications

The MPL-B220T-HJ72AA delivers strong motion performance in compact systems where speed and accuracy are equally critical.

Technical FAQs

Which drive systems are compatible with this motor?
It is designed for use with Allen Bradley Kinetix servo drive platforms.
What type of encoder feedback does it use?
It typically uses a high-resolution incremental or absolute encoder depending on configuration.
Is this motor suitable for high-speed operation?
Yes, it supports high-speed motion control up to approximately 6000 RPM depending on system setup.
Can it be used in continuous-duty applications?
Yes, it is designed for industrial continuous operation environments.
Is this motor suitable for robotics applications?
Yes, its low inertia and fast response make it well-suited for robotic systems.
Does it support precise positioning control?
Yes, it is engineered for high-accuracy motion and repeatable positioning.
Is a brake available for this model?
Brake configurations may vary depending on exact motor variant.
What industries commonly use this motor?
It is widely used in packaging, electronics, automotive, and general automation industries.
What is the benefit of a low-inertia servo motor?
It allows faster acceleration and deceleration, improving cycle time and system responsiveness.
Is special maintenance required?
Routine inspection of mounting, connectors, and feedback alignment is typically sufficient.
