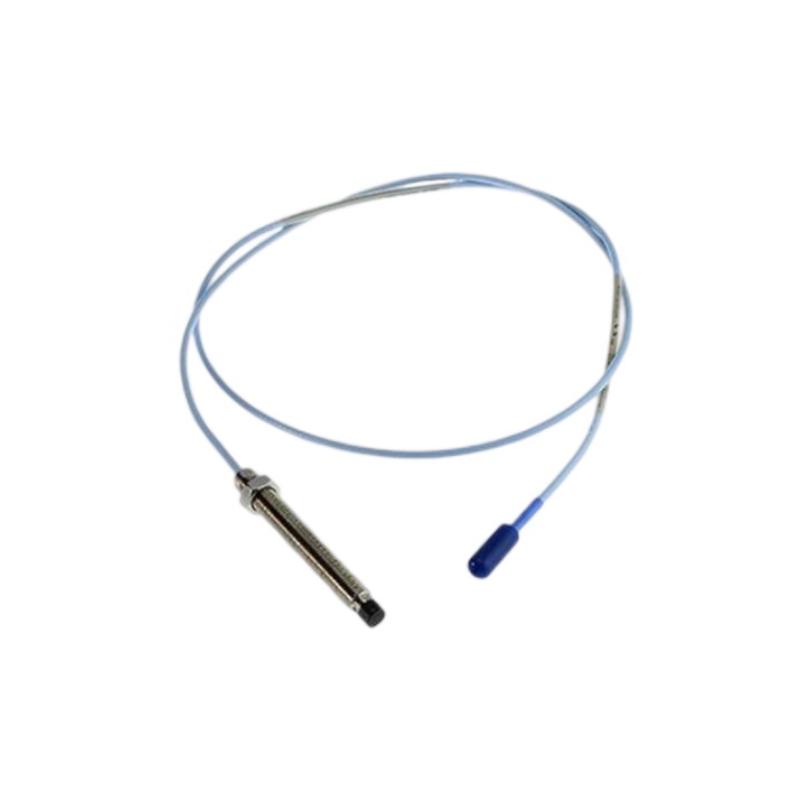

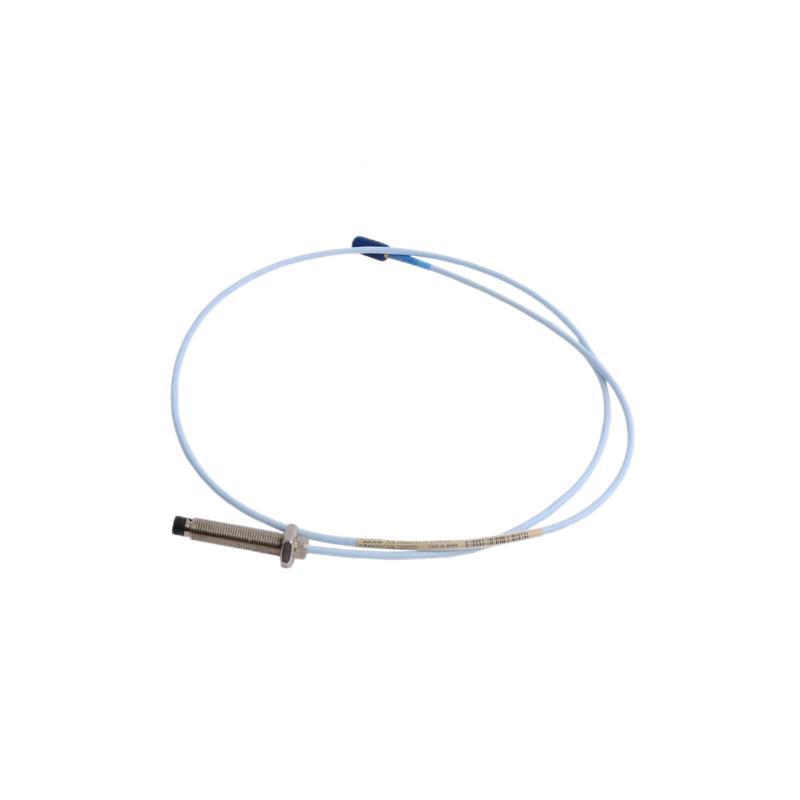

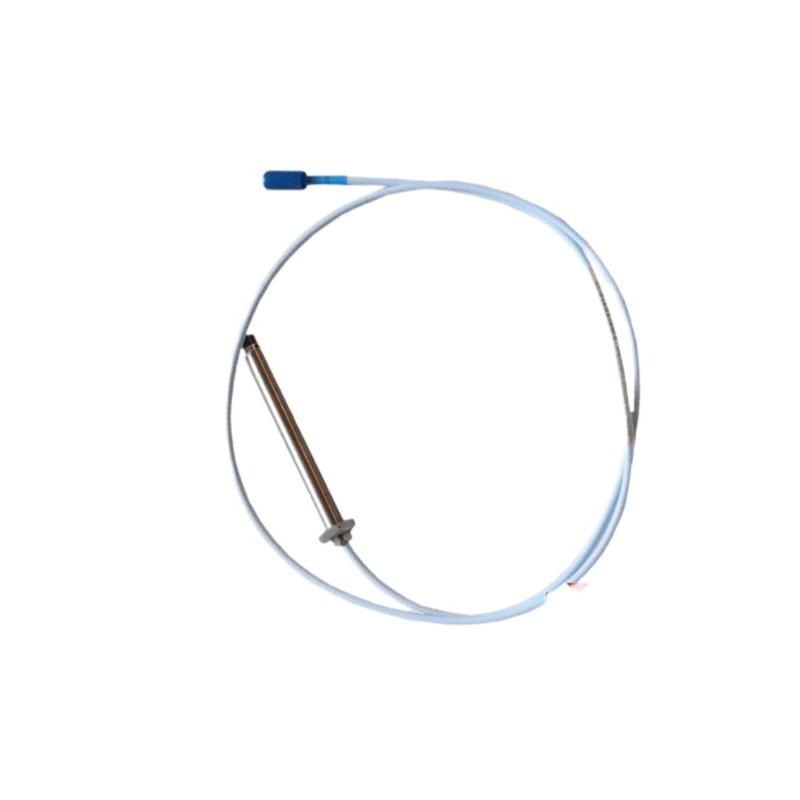

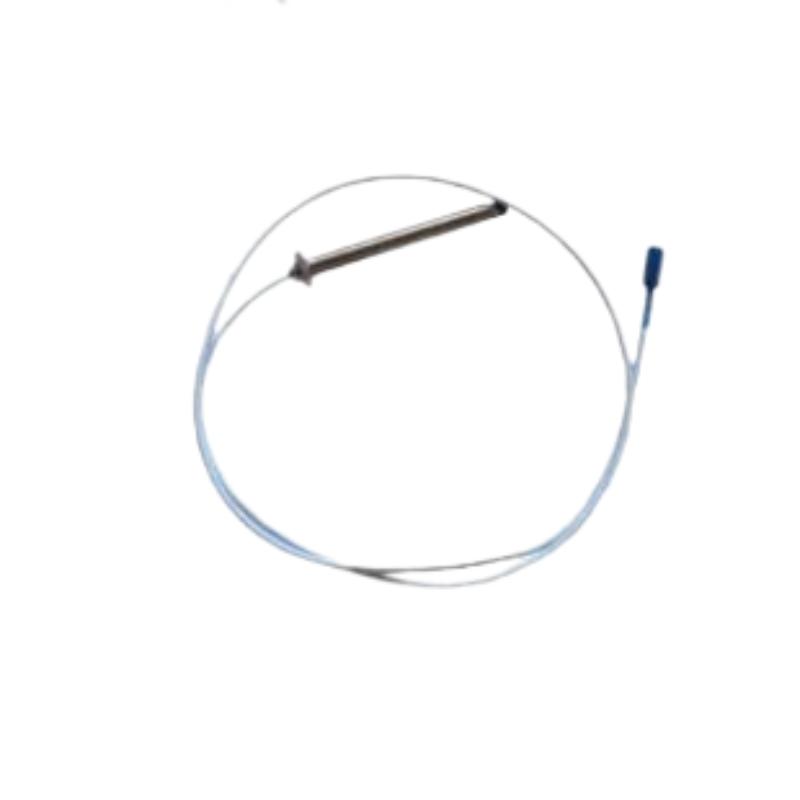

The Bently Nevada 330103-00-14-10-01-00 is part of the 3300 XL 8 mm Proximity Probe Series, designed for accurate, non-contact measurement of shaft vibration, radial displacement, and shaft position in rotating machinery.

This configuration uses a 140 mm probe case length with a 1.0-meter integrated cable assembly, making it suitable for installations requiring deeper probe reach while maintaining stable signal transmission and reliable long-term performance in industrial environments such as turbines, compressors, and generators.

Technical Specifications

Parameter	Specification
Product Series	3300 XL 8 mm Proximity Probe
Model Number	330103-00-14-10-01-00
Measurement Type	Eddy current, non-contact
Probe Diameter	8 mm
Thread Type	M10 × 1
Probe Case Length	140 mm
Cable Length	1.0 m
Connector Type	Miniature ClickLoc™ connector
Cable Type	Standard industrial coaxial cable
Housing Material	Stainless steel
Probe Tip Material	PPS (Polyphenylene Sulfide)
Function	Shaft vibration, position, displacement
System Compatibility	3300 XL Proximitor® sensors

Dimensions & Weight

Probe case length: 140 mm
Cable length: 1.0 m
Thread: M10 × 1

Net weight: ~0.34–0.36 kg
Shipping weight: ~1.5–2.0 kg

Interpretation of Model Code (Typical 3300 XL Structure)

330103 → 8 mm proximity probe family
00 → standard configuration (no special option)
14 → 140 mm probe case length
10 → 1.0 m cable length
01 → standard ClickLoc connector / cable type
00 → no special agency approval variant

Applications

This probe is widely used in:

Steam turbine vibration monitoring
Gas turbine shaft displacement measurement
Centrifugal compressors
Industrial pump condition monitoring
Electric motors and generators
Gearbox vibration diagnostics
Petrochemical and refinery rotating equipment
Power generation machinery protection systems

Key Advantages

High-accuracy non-contact displacement measurement
Extended 140 mm probe body for deeper mounting reach
Stable signal output for long-term monitoring
Rugged stainless-steel industrial construction
Proven compatibility with 3300 XL monitoring systems
Supports predictive maintenance and early fault detection
Reliable performance in harsh industrial environments

Technical FAQs

1. What does this probe measure?

It measures shaft vibration, radial displacement, and shaft position in rotating machinery.

2. What does “14” mean in the model number?

It indicates a 140 mm probe case length.

3. What does “10” represent?

It indicates a 1.0 meter integrated cable length.

4. What sensing technology is used?

It uses eddy-current non-contact measurement technology.

5. Is it compatible with 3300 XL systems?

Yes, it is fully compatible with Bently Nevada 3300 XL Proximitor® systems.

6. What is the probe diameter?

The probe diameter is 8 mm.

7. What is the installation thread?

It uses an M10 × 1 threaded mounting.

8. What is the approximate weight?

Around 0.34–0.36 kg.

9. What materials are used?

Stainless steel housing with PPS probe tip.

10. Why is this model used?

It is used for reliable, high-precision vibration monitoring in critical rotating machinery where uptime and accuracy are essential.
