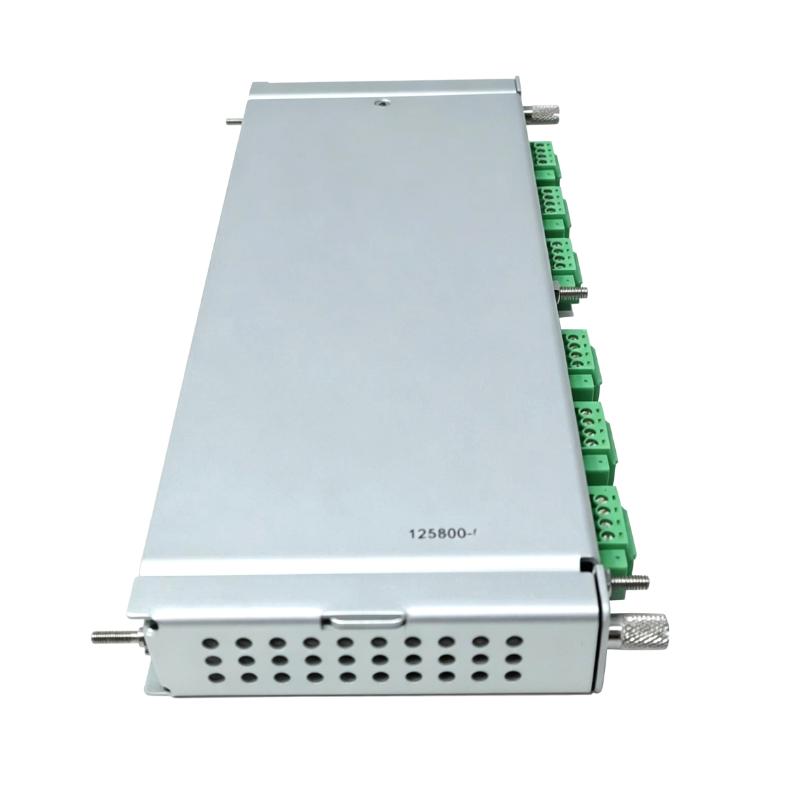

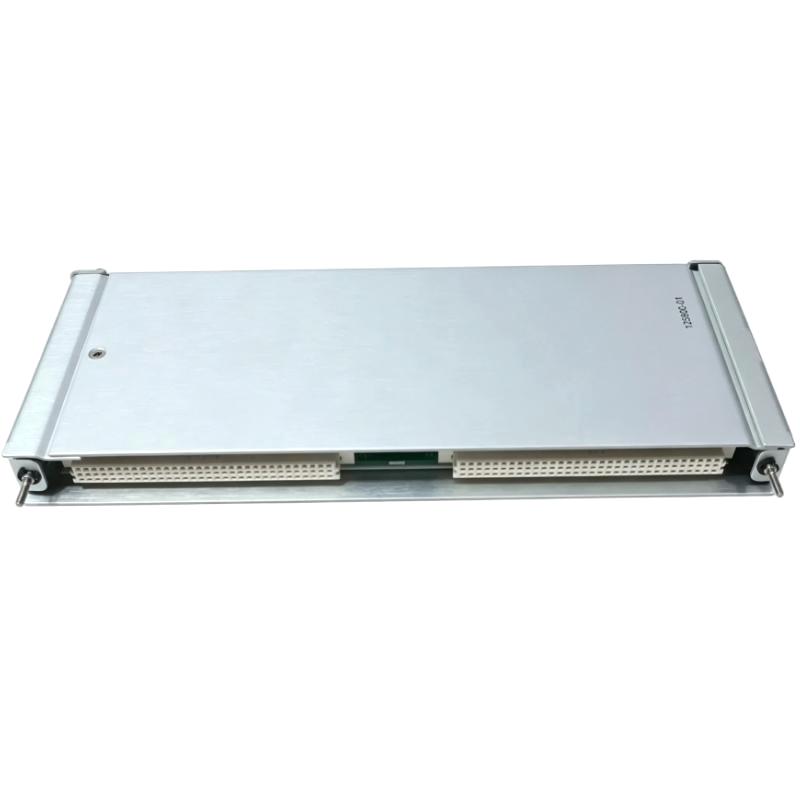

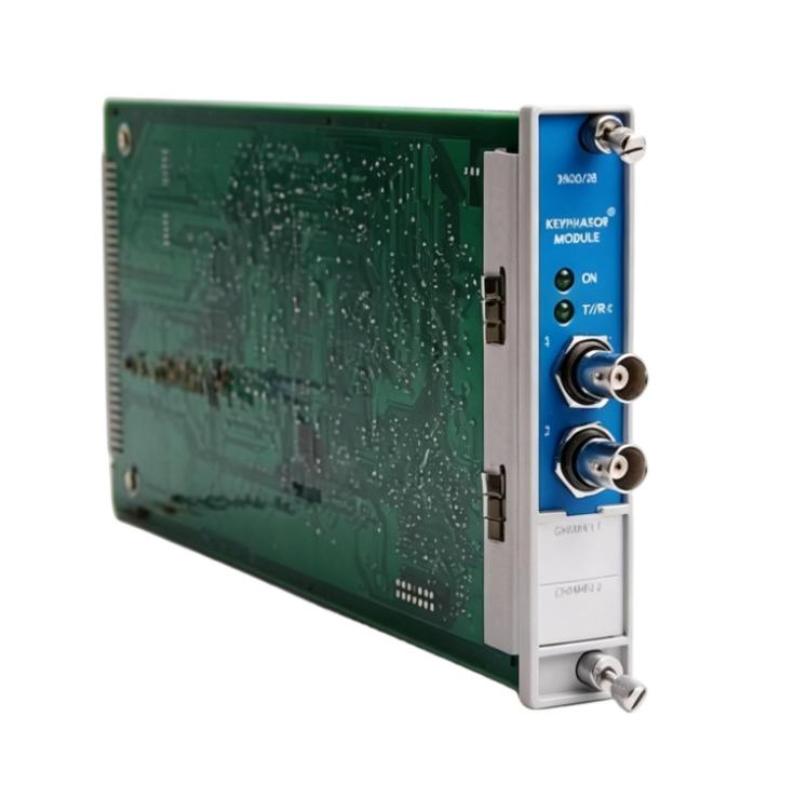

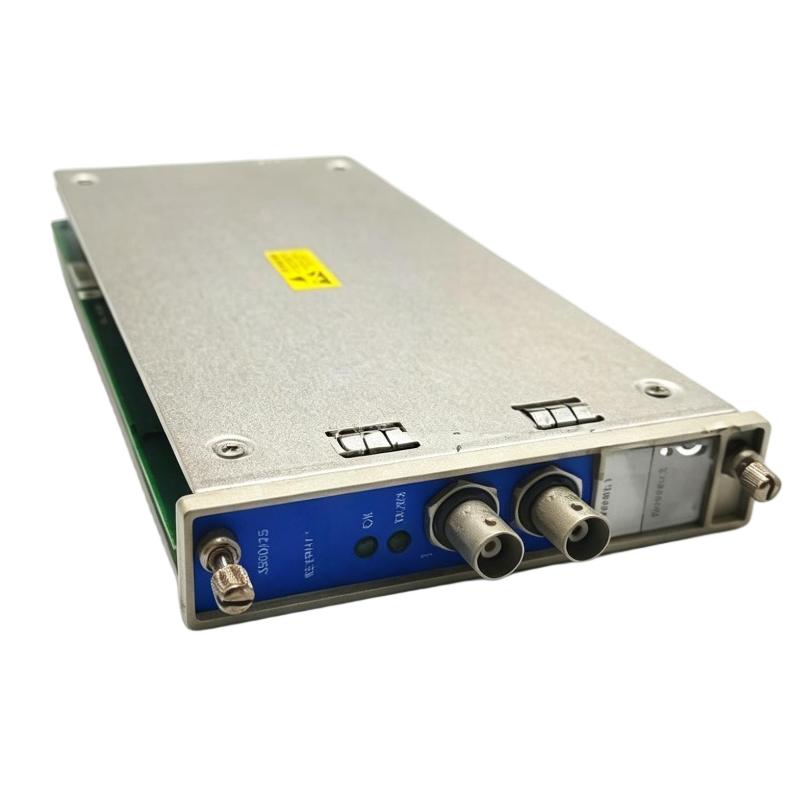

Bently Nevada 3500/25-01-01-01 149369-01+125800-01 Enhanced Bond Phase Module + I/O module

Applications

• Rotating machinery speed and phase reference monitoring
   Provides precise Keyphasor® signals for shaft rotational speed measurement and phase reference tracking in critical machinery protection systems.

• Turbine monitoring systems
   Used in steam, gas, and hydro turbines to establish accurate shaft position references for vibration analysis.

• Compressor protection applications
   Supplies timing and phase information required for advanced vibration monitoring and machinery diagnostics.

• Generator condition monitoring
   Supports rotor dynamics analysis and machinery protection in power generation facilities.

• Machinery balancing and diagnostics
   Enables phase angle measurements necessary for balancing procedures and fault identification.

• API 670 compliant monitoring systems
   Serves as a key component in machinery protection architectures that require accurate rotational reference signals.

Key Advantages

• Enhanced Keyphasor signal processing
   Provides highly accurate speed and phase reference information for advanced machinery monitoring applications.

• Dual-channel monitoring capability
   Supports multiple Keyphasor inputs for increased flexibility in complex rotating equipment systems.

• Seamless integration with 3500 Series racks
   Designed specifically for Bently Nevada 3500 machinery protection systems.

• High-speed signal accuracy
   Maintains reliable rotational measurements across a wide range of operating conditions.

• Improved machinery diagnostics
   Enhances vibration analysis by supplying precise phase reference data.

• Industrial-grade reliability
   Built for continuous operation in demanding power generation and process industry environments.

Technical FAQs

Q1: What is the primary function of the 3500/25 Enhanced Keyphasor Module?
A1: It provides rotational speed and phase reference signals for machinery monitoring and protection systems.

Q2: What is a Keyphasor signal?
A2: A Keyphasor signal is a once-per-revolution or multiple-per-revolution reference pulse used to determine shaft speed and rotational position.

Q3: Why is phase reference important in vibration monitoring?
A3: It allows vibration measurements to be correlated with shaft position for advanced diagnostics and balancing.

Q4: Can this module be used with turbines and compressors?
A4: Yes, it is widely used in turbines, compressors, generators, and other rotating machinery.

Q5: Is the module compatible with the Bently Nevada 3500 system?
A5: Yes, it is specifically designed for installation within 3500 Series monitoring racks.

Q6: What role does the I/O module play?
A6: The I/O module manages field signal connections and communication between the Keyphasor module and external devices.

Q7: Does the module support continuous monitoring?
A7: Yes, it is designed for continuous online machinery protection and condition monitoring.

Q8: What industries commonly use this module?
A8: Power generation, oil & gas, petrochemical, mining, and heavy industrial sectors.

Q9: Can it improve machinery fault detection?
A9: Yes, accurate phase references help identify imbalance, misalignment, and other rotating equipment issues.

Q10: What is the advantage of the enhanced version compared to basic phase monitoring?
A10: It offers improved signal processing, diagnostic capability, and compatibility with advanced machinery analysis functions.
