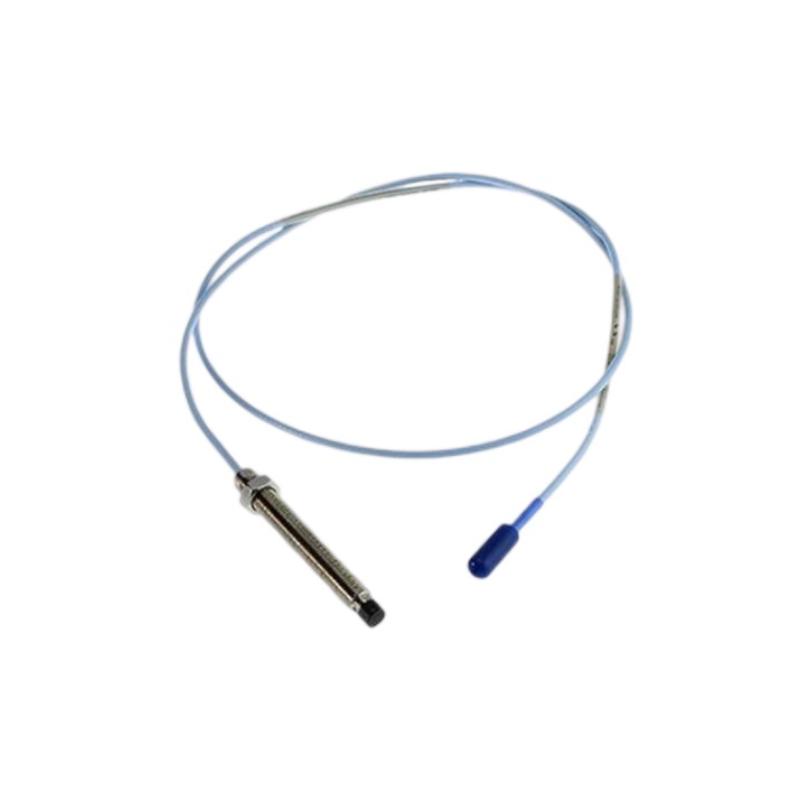

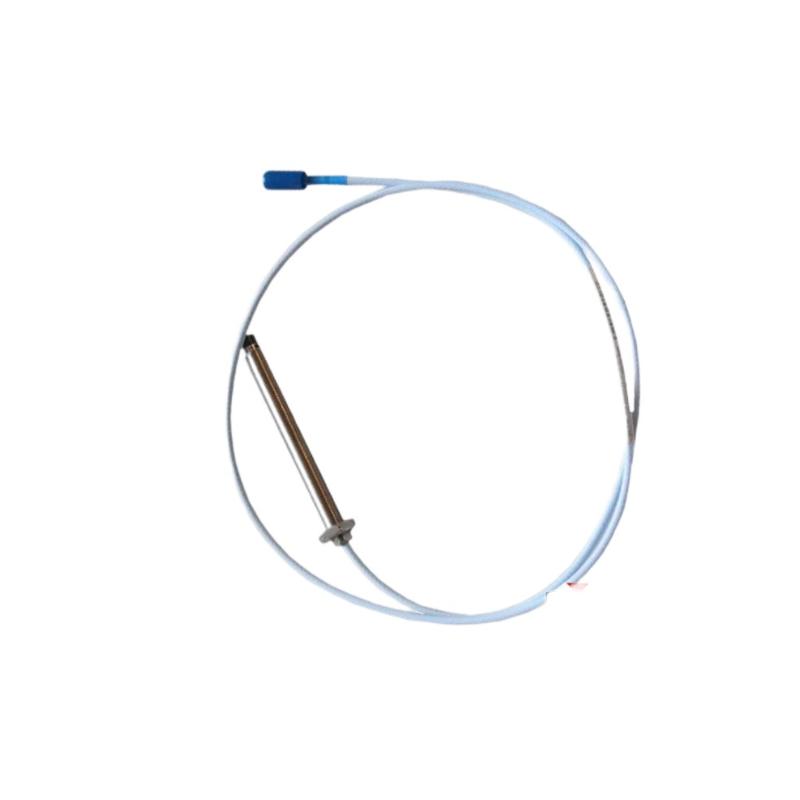

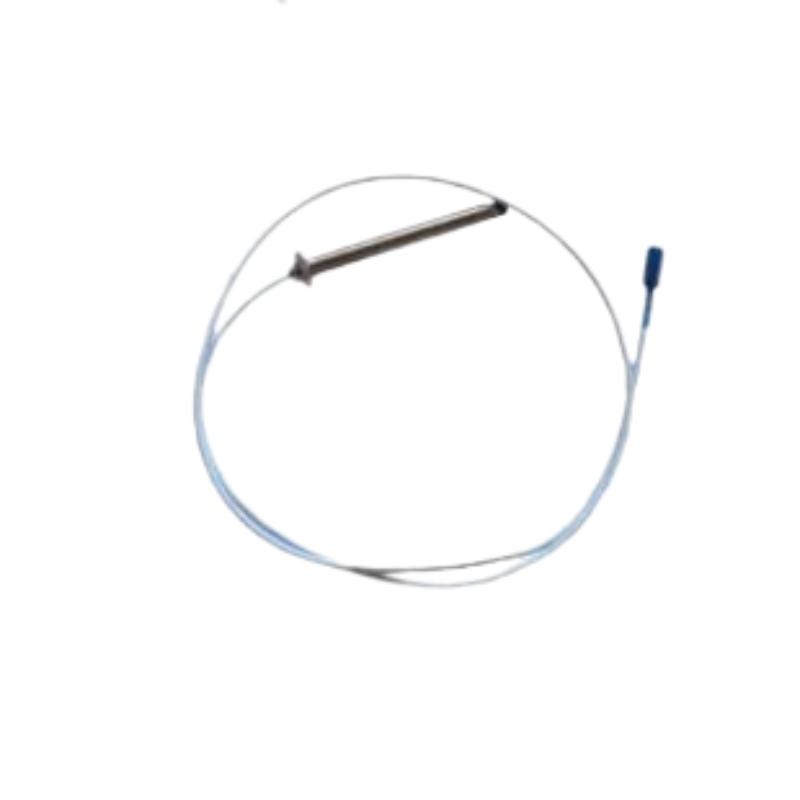

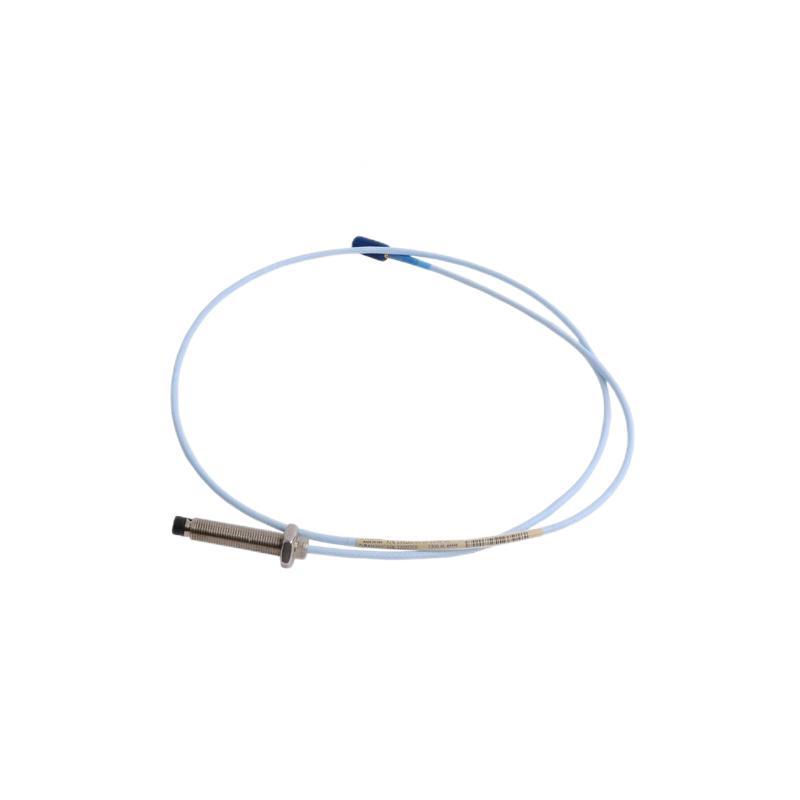

The Bently Nevada 330103-00-15-05-01-00 is a 3300 XL 8 mm proximity probe designed for accurate, non-contact measurement of shaft vibration, radial displacement, and shaft position in rotating machinery systems.

This configuration belongs to the 3300 XL probe family and is used in industrial condition monitoring applications such as turbines, compressors, pumps, and generators, where stable long-term signal performance is required for machinery protection systems.

Technical Specifications

Parameter	Specification
Product series	3300 XL 8 mm proximity probe
Model number	330103-00-15-05-01-00
Measurement principle	Eddy-current, non-contact
Probe diameter	8 mm
Probe case length	150 mm
Cable length	0.5 m
Thread type	M10 × 1
Connector type	Miniature ClickLoc™ connector
Cable type	Industrial coaxial cable
Housing material	Stainless steel
Probe tip material	PPS (Polyphenylene Sulfide)
Function	Shaft vibration, displacement, position
System compatibility	Bently Nevada 3300 XL Proximitor® systems

Code Breakdown (Typical 3300 XL Structure)

330103 → 8 mm proximity probe family
00 → standard configuration
15 → 150 mm probe case length
05 → 0.5 m cable length
01 → standard connector / cable assembly
00 → no special agency approval variant

Dimensions & Weight

Probe length: 150 mm
Cable length: 0.5 m
Thread: M10 × 1

Net weight: ~0.33–0.36 kg
Shipping weight: ~1.5–2.0 kg

Applications

This probe is widely used in:

Steam turbine monitoring systems
Gas turbine protection systems
Centrifugal compressors
Industrial pumps
Electric motors and generators
Gearboxes and rotating machinery
Petrochemical processing equipment
Power generation plants

Key Advantages

High-accuracy non-contact eddy-current measurement
Stable performance in continuous industrial operation
Extended 150 mm probe body for deeper installation reach
Rugged stainless-steel construction for harsh environments
Compatible with Bently Nevada 3300 XL monitoring systems
Supports predictive maintenance and early fault detection
Long service life with minimal maintenance requirements

Technical FAQs

1. What does this probe measure?

It measures shaft vibration, radial displacement, and shaft position in rotating machinery.

2. What does “15” mean in the model number?

It indicates a 150 mm probe case length.

3. What does “05” represent?

It indicates a 0.5 m cable length configuration.

4. What sensing technology is used?

It uses eddy-current non-contact displacement measurement technology.

5. Is it compatible with 3300 XL systems?

Yes, it is designed for Bently Nevada 3300 XL Proximitor® systems.

6. What is the probe diameter?

8 mm.

7. What mounting thread is used?

M10 × 1.

8. What materials are used?

Stainless steel housing with PPS probe tip.

9. What is the approximate weight?

About 0.33–0.36 kg.

10. Why is this model used?

It is used for reliable vibration and displacement monitoring in critical rotating machinery where uptime and safety are essential.
