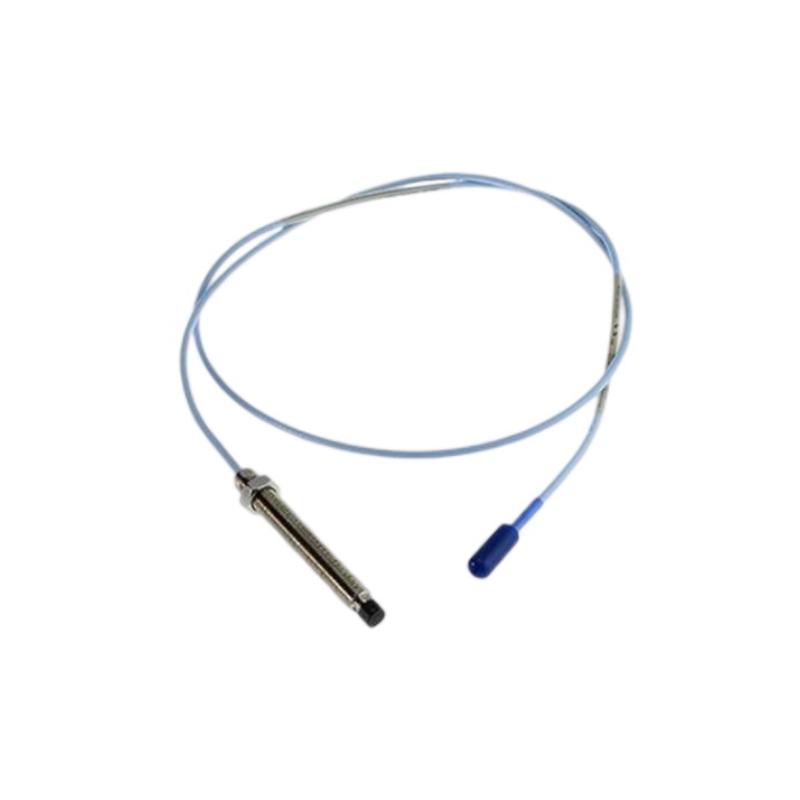

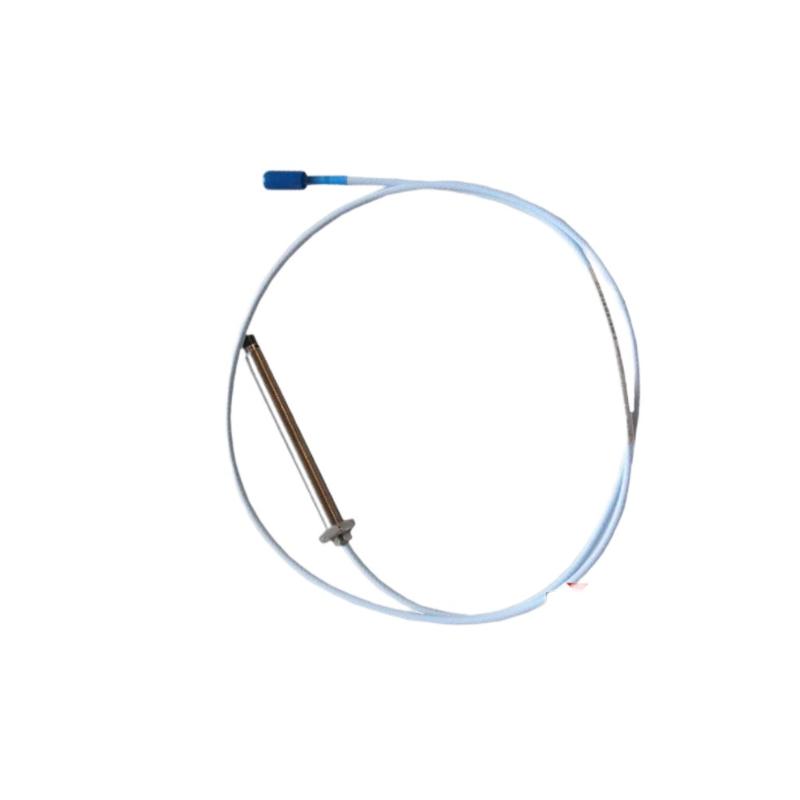

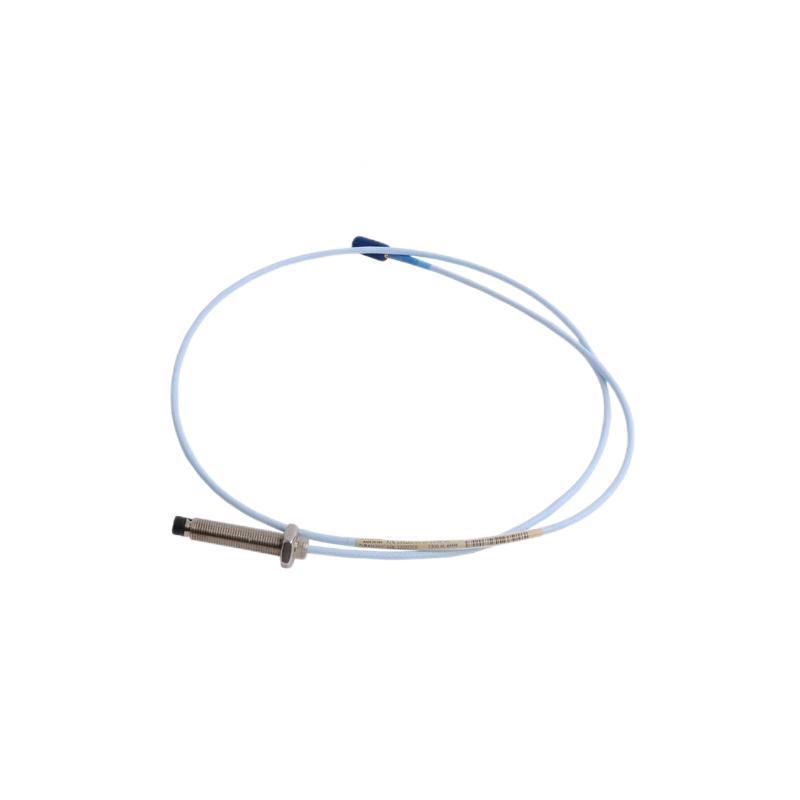

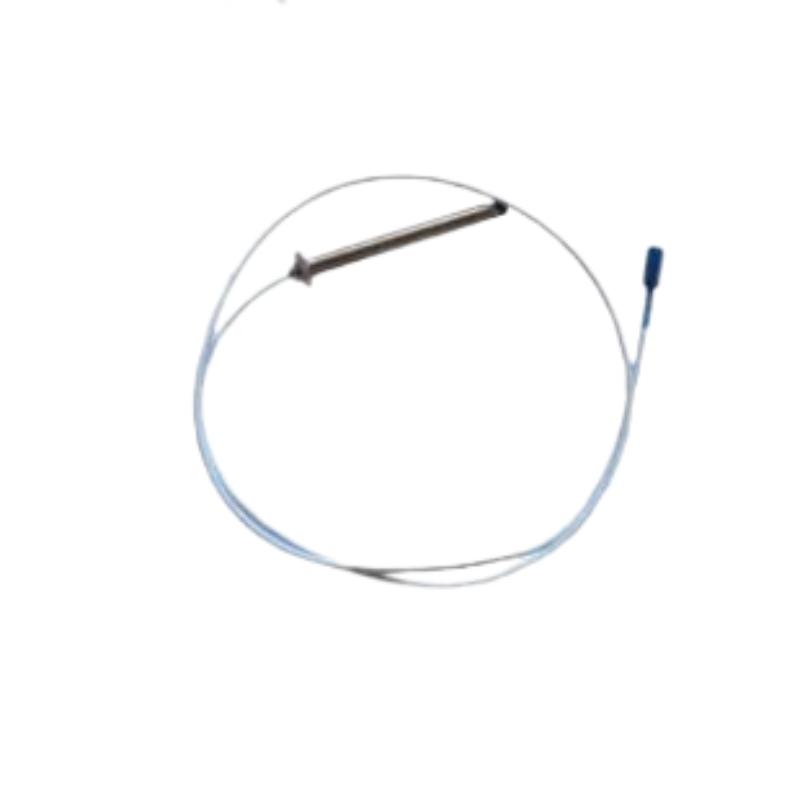

The Bently Nevada 330103-00-16-10-12-05 is a 3300 XL 8 mm Proximity Probe Module designed for precise, non-contact measurement of shaft vibration, radial displacement, shaft position, and dynamic movement in rotating machinery.

This model features a 160 mm probe case length and a 1.0 m integrated cable assembly, making it suitable for installations requiring extended probe reach while maintaining excellent signal integrity within the 3300 XL Proximitor® Sensor System.

Technical Specifications

Parameter	Specification
Product Series	3300 XL 8 mm Proximity Probe
Model Number	330103-00-16-10-12-05
Product Type	Eddy-Current Proximity Probe
Measurement Technology	Non-contact Eddy Current
Probe Diameter	8 mm
Unthreaded Length	0 mm
Probe Case Length	160 mm
Cable Length	1.0 m (3.3 ft)
Thread Type	M10 × 1
Connector Type	Miniature ClickLoc™ Connector
Cable Option	Armored / Enhanced Cable Configuration
Probe Housing Material	Stainless Steel
Probe Tip Material	Polyphenylene Sulfide (PPS)
Agency Approvals	CSA, ATEX, IECEx
System Compatibility	Bently Nevada 3300 XL Proximitor® Sensor Systems

Model Number Breakdown

Code Segment	Description
330103	3300 XL 8 mm Proximity Probe
00	0 mm Unthreaded Length
16	160 mm Probe Case Length
10	1.0 m Cable Length
12	Armored / Enhanced Cable and Connector Configuration
05	CSA, ATEX, IECEx Agency Approvals

Dimensions & Weight

Item	Value
Probe Diameter	8 mm
Probe Case Length	160 mm
Cable Length	1.0 m
Mounting Thread	M10 × 1
Approximate Weight	0.32–0.36 kg

Shipping weight typically varies between 1.5–2.0 kg depending on packaging and supplier.

Operating Characteristics

Parameter	Value
Operating Temperature	-52°C to +177°C
Calibration Target Material	AISI 4140 Steel
Nominal Gap Setting	1.27 mm (50 mils)
Pressure Seal	Viton® O-ring
Environmental Protection	Industrial Heavy-Duty Design

Typical Applications

The 330103-00-16-10-12-05 is commonly installed in:

Steam turbines
Gas turbines
Centrifugal compressors
Industrial pumps
Electric motors
Generators
Gearboxes
Refinery equipment
Petrochemical facilities
Power generation plants

Key Advantages

Extended 160 mm probe body for deep mounting applications
1.0 m integrated cable for installation flexibility
High-precision shaft vibration and displacement monitoring
Enhanced cable configuration for demanding environments
CSA, ATEX, and IECEx certified version
Rugged stainless-steel construction
Excellent long-term signal stability
Compatible with Bently Nevada 3300 XL monitoring systems
Supports predictive maintenance and machinery protection programs

Technical FAQs

1. What does this probe measure?

It measures shaft vibration, shaft position, radial displacement, and dynamic shaft movement.

2. What does the "16" code indicate?

It specifies a 160 mm probe case length.

3. What does the "10" code indicate?

It specifies a 1.0 meter cable length.

4. What does the "12" code indicate?

It identifies an enhanced cable/connector configuration used in certain 3300 XL probe assemblies.

5. What does the "05" code indicate?

It designates CSA, ATEX, and IECEx agency approvals for hazardous-area applications.

6. What is the probe diameter?

The probe diameter is 8 mm.

7. What mounting thread is used?

The probe uses an M10 × 1 metric thread.

8. What materials are used?

The probe body is constructed from stainless steel, and the sensing tip is made from PPS (Polyphenylene Sulfide).

9. What is the approximate weight?

Approximately 0.32–0.36 kg.

10. Is this model suitable for hazardous-area installations?

Yes. The -05 approval option includes certifications such as CSA, ATEX, and IECEx, making it suitable for many hazardous-area applications when installed according to applicable regulations.
