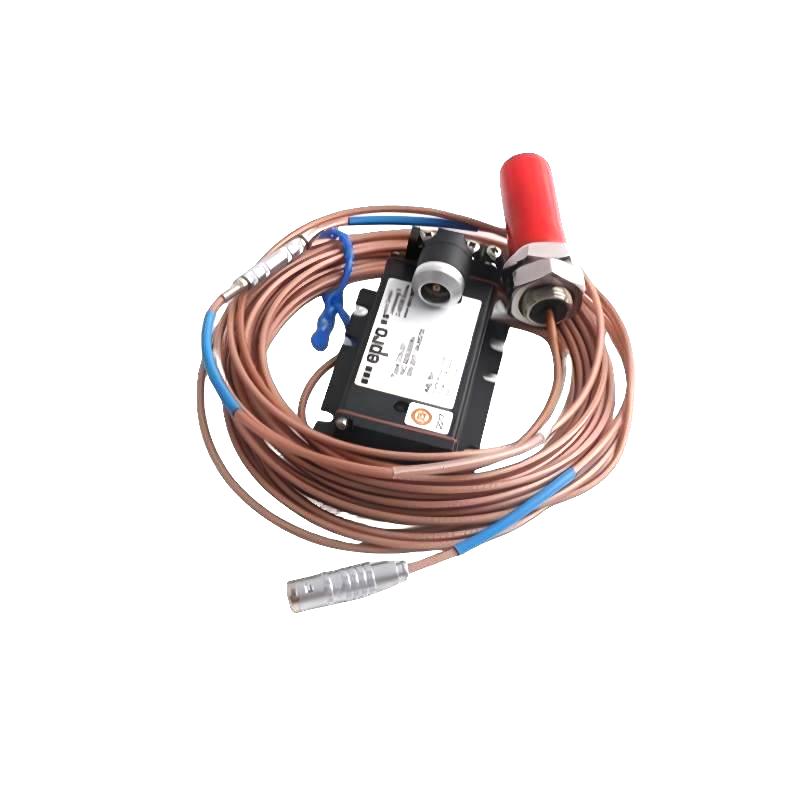

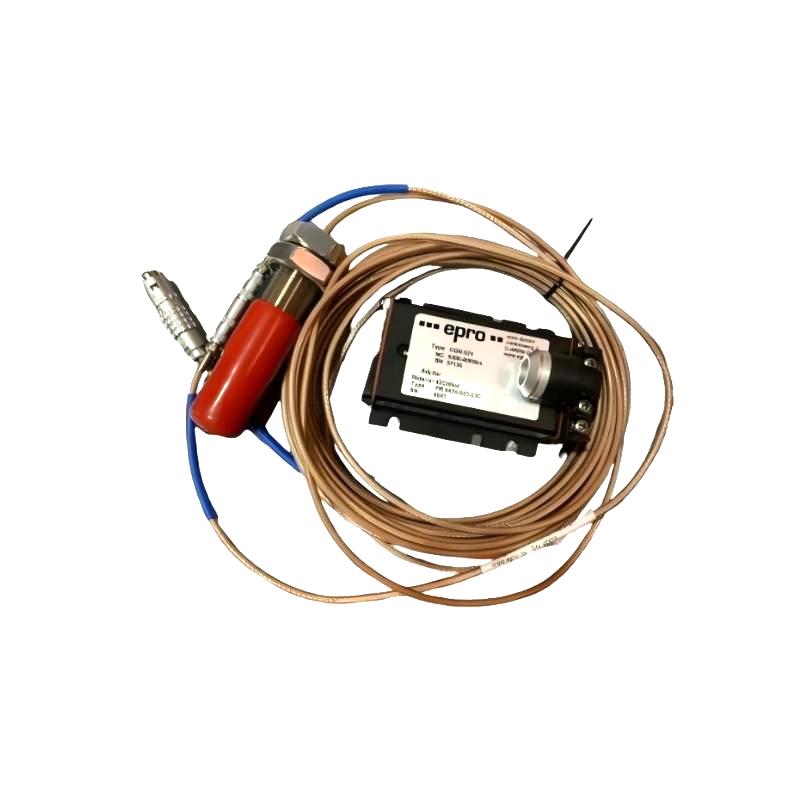

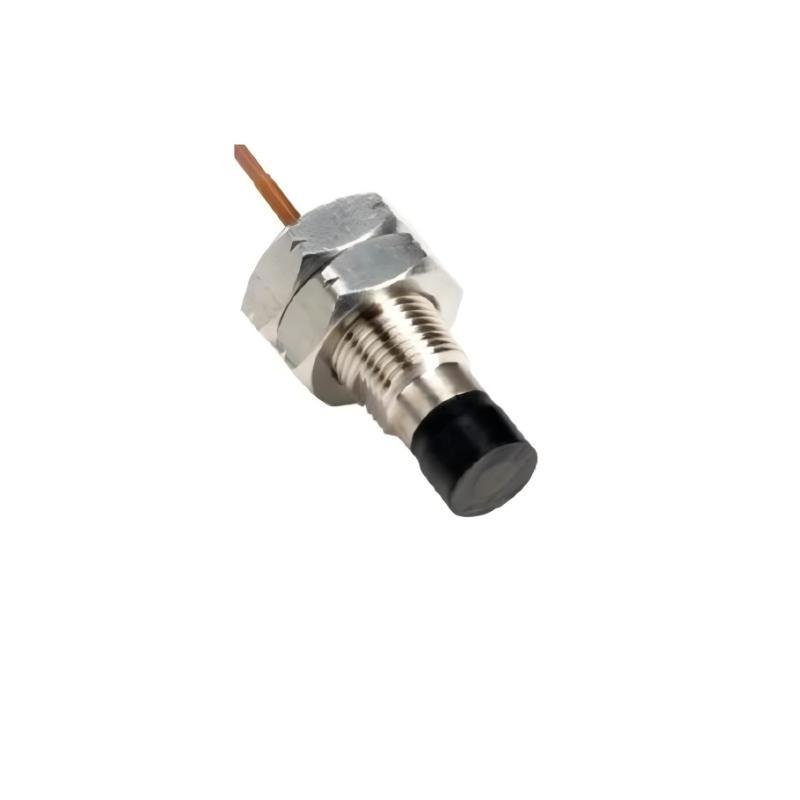

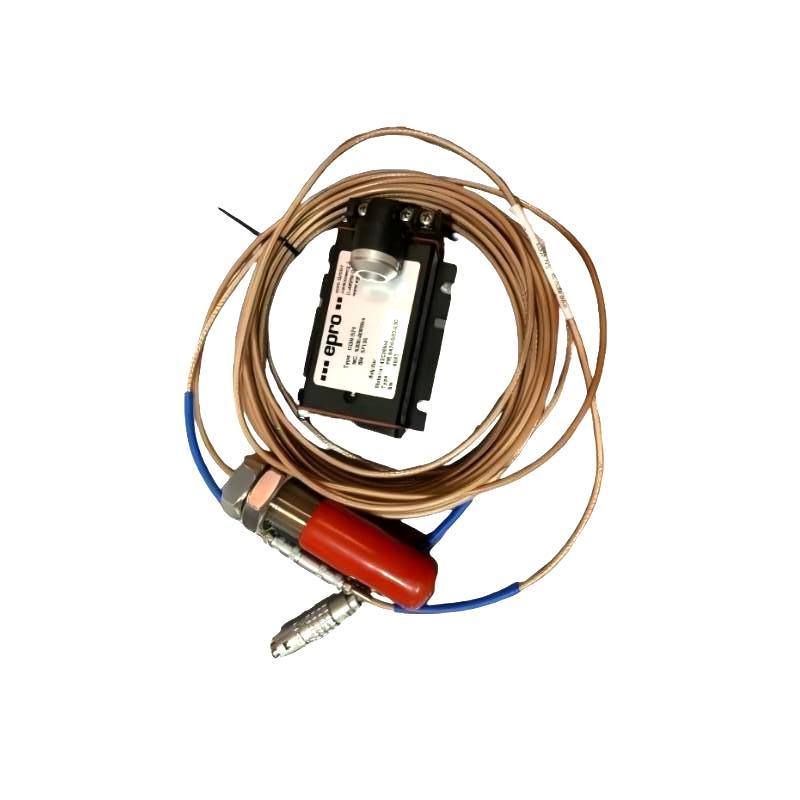

Epro PR6424/010-040+CON021 16 mm Eddy Current Sensor
Epro PR6424/010-040+CON021 16 mm Eddy Current Sensor
0.0
Points
Brand:Epro PLC Item No.:PR6424/010-040+CON021 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The EPRO PR6424/010-040+CON021 is a 16 mm eddy-current sensor system designed for high-precision condition monitoring of rotating machinery. It combines a robust proximity probe with a dedicated signal converter to deliver stable, high-resolution measurement data in demanding industrial environments.
This system is widely used in critical asset monitoring applications where measurement accuracy, operational safety, and long-term reliability are essential.
Technical Specifications
Parameter
Specification
Model
PR6424/010-040+CON021
Product Type
16 mm Eddy Current Sensor System
Sensor Head Diameter
16 mm
Measurement Principle
Eddy-current non-contact sensing
Signal Converter
CON021 module
Sensitivity
4 V/mm (±1.5%)
Linear Range
±2.0 mm
Dynamic Range
0 to 1000 µm
Nominal Air Gap
~2.7 mm
Operating Temperature
-35 to 180 °C
Target Material
Ferromagnetic steel
Frequency Response
Up to 20 kHz (system dependent)
Installation Type
Fixed industrial mounting for turbomachinery
Weight
0.32 kg (0.71 lb)
Applications
The PR6424/010-040+CON021 system is widely used in turbomachinery environments where continuous, high-accuracy shaft monitoring is required:
Steam and gas turbines in power generation stations
Centrifugal and axial compressors in oil & gas processing facilities
Industrial pumps and high-speed rotating machinery
Hydro turbine generator systems
Large rotating equipment in petrochemical and refinery plants
It is commonly deployed in protection-grade monitoring architectures where signal stability and long-term reliability are essential.
Advantages
Integrated probe + CON021 converter ensures stable signal conditioning
Strong immunity to vibration, EMI, and harsh industrial environments
Stable long-term performance for predictive maintenance systems
Accurate monitoring of shaft displacement, vibration, and eccentricity
Suitable for continuous 24/7 industrial operation
Proven suitability for turbomachinery protection systems
Technical FAQs
1. What is the function of the CON021 module in this system?
It converts raw probe signals into a stable conditioned output for monitoring and control systems.
2. What does the sensor measure?
It measures shaft displacement, vibration, position, and eccentricity.
3. Is this system suitable for turbines and compressors?
Yes, it is designed specifically for turbomachinery applications.
4. Does it require physical contact with the shaft?
No, it uses non-contact eddy-current measurement technology.
5. Can it operate in harsh industrial environments?
Yes, it is designed for high temperature, vibration, and contaminated conditions.
6. Is it suitable for continuous monitoring?
Yes, it is intended for 24/7 condition monitoring systems.
7. What shaft materials are compatible?
It is optimized for conductive ferromagnetic steel shafts.
8. Does it support radial and axial measurement?
Yes, depending on installation configuration, both measurement modes are supported.
9. How does it handle electrical noise?
The CON021 module provides strong signal conditioning and noise suppression.
10. What is its role in predictive maintenance?
It enables early detection of faults such as imbalance, misalignment, and bearing wear.
