Brand:Yokogawa Electric Item No.:ASI133-H00 Product Origin:Japan Product Dimensions:130 x 107.5 x 32.8 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Introduction: Reliable Analog Input for Industrial Systems

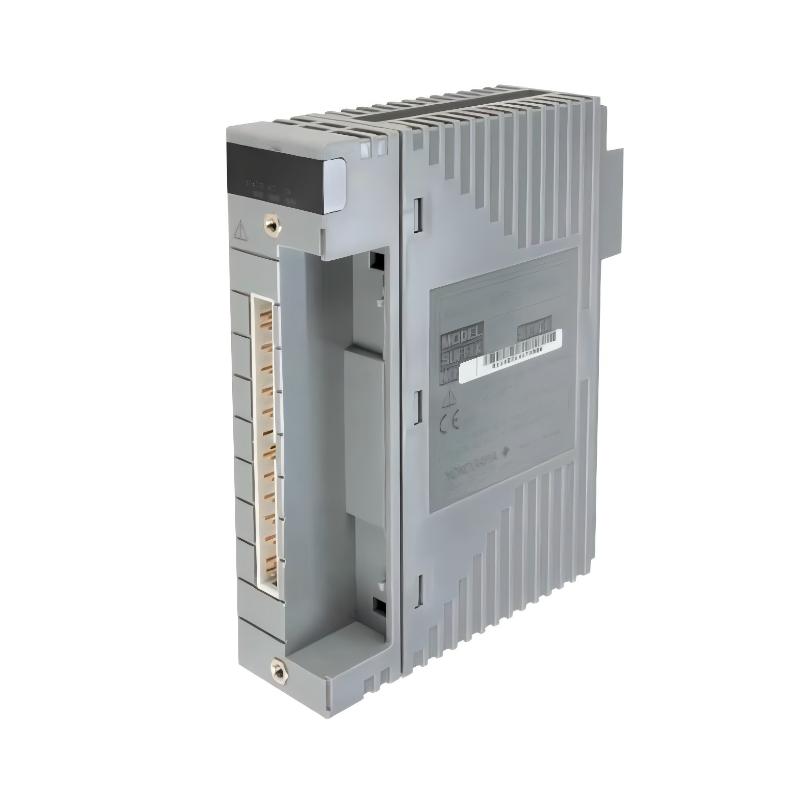

The ASI133-H00 Analog Input Module delivers precise and stable analog signal acquisition for industrial automation.Its robust design ensures reliable operation even under noisy conditions, while advanced diagnostics and modular flexibility provide confidence in process performance and system scalability.
Technical Specifications
Feature
Specification
Input Type
Analog Voltage/Current
Accuracy
±0.05% of span
Sampling Rate
Up to 50 ms per channel
Isolation
Channel-to-channel and channel-to-ground
Operating Temperature
0–55°C
Storage Temperature
-20–70°C
Humidity
5–95% RH, non-condensing
Power Supply
24 VDC ±10%
Dimensions
130 mm × 107.5 mm × 32.8 mm
Weight
0.3 kg
Recommended Related Models
ASI133-H01 – Analog input module with extended channel count
ASI133-H02 – High-speed analog input for dynamic processes
ASI133-H03 – Module with integrated diagnostics and status monitoring
ASI133-H04 – Analog input for hazardous area applications
Popular Related Models
ASI133-H10 – Standard analog input module with 16 channels
ASI133-H11 – Analog input module compatible with legacy CENTUM VP systems
ASI133-H12 – High-precision analog input for critical process measurement
ASI133-H13 – Enhanced module with remote diagnostics support
Applications: Accurate Analog Measurement
Process automation – precise analog input monitoring for chemical, oil, and gas processes.
Power generation – acquisition of voltage and current signals for turbines and generator control.
Water and wastewater treatment – reliable measurement of pH, conductivity, and flow.
Pharmaceutical manufacturing – ensures high-precision analog data for critical processes.
Industrial machinery – monitoring of sensors for temperature, pressure, and level.
Advantages: High Accuracy and Reliability
High precision input – reduces measurement errors and ensures reliable data acquisition.
Noise-resistant design – maintains stability in environments with strong electromagnetic interference.
Seamless DCS integration – compatible with CENTUM VP and other Yokogawa control systems.
Modular and scalable – supports easy system expansion and flexible configuration.
Advanced diagnostics – detects input faults and provides channel-level status.
Technical FAQs
1. What types of signals can ASI133-H00 accept?
It supports analog voltage (0–10V, ±10V) and current (0–20mA, 4–20mA) inputs.
2. Is it suitable for dynamic process control?
Yes, it features fast sampling for real-time monitoring.
3. How does it handle temperature variations?
Built-in temperature compensation ensures stable performance across the operating range.
4. Can it detect sensor or wiring faults?
Yes, it provides diagnostics for open circuits, short circuits, and sensor malfunctions.
5. Can multiple modules operate in the same rack?
Yes, its modular design prevents interference and allows easy expansion.
6. How is it protected against electrical noise?
Channel isolation and filtering guard against EMI and RFI.
7. Is it compatible with older Yokogawa systems?
Yes, it works seamlessly with legacy and modern CENTUM VP platforms.
8. Can it be used in hazardous areas?
Yes, with proper safety barriers, it is suitable for classified hazardous locations.
9. Does it require calibration?
Factory calibration is standard, optional field calibration is available for high-precision applications.
10. How can module status be monitored remotely?
The DCS interface provides real-time monitoring and diagnostics for each input channel.
