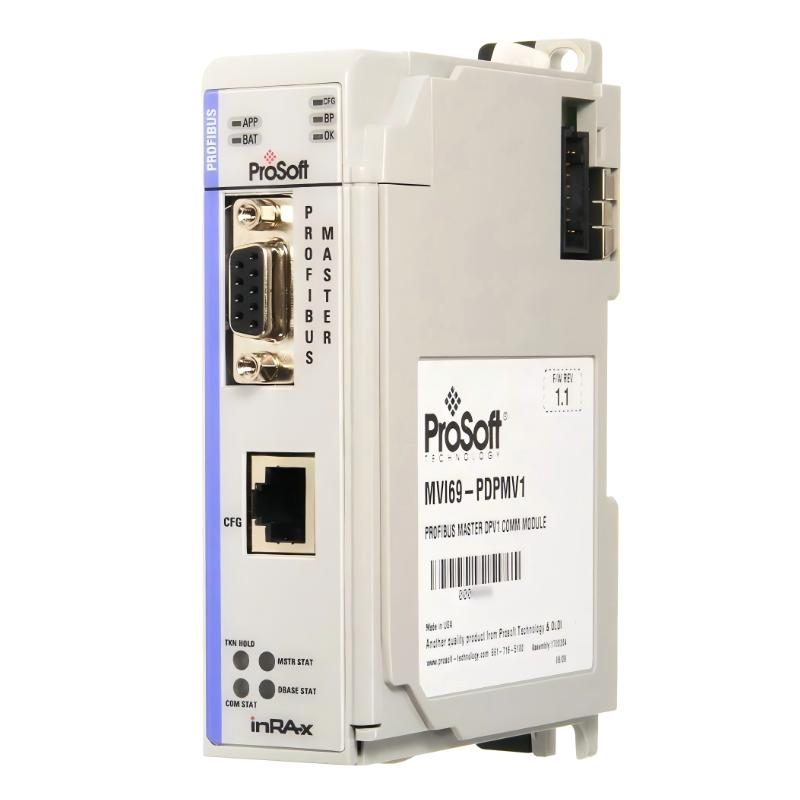

ProSoft MVI69-PDPMV1 PROFIBUS DP V1 Master Communication Module

Applications

• In CompactLogix and MicroLogix 1769 systems, the module is used to enable PROFIBUS DP V1 master communication between Rockwell PLCs and distributed field devices such as drives, remote I/O, and process instruments.

• It is widely deployed in manufacturing and process automation environments where high-speed cyclic data exchange is required between PLC systems and PROFIBUS slave networks.

• In factory control systems, it is used to integrate Siemens-based PROFIBUS devices into Rockwell Automation architectures for unified production control and monitoring.

• It is applied in retrofit projects where legacy PROFIBUS fieldbus networks must be retained while upgrading the central control system to CompactLogix or MicroLogix platforms.

• It is suitable for large-scale industrial plants where deterministic real-time communication is required for coordinated machine control and system synchronization.

Key Advantages

• It supports full PROFIBUS DP V0/V1 master functionality, enabling high-speed deterministic communication with up to large-scale slave networks.

• It provides robust cyclic and acyclic data exchange, allowing both real-time control and parameter-level device diagnostics.

• It integrates directly into the 1769 backplane architecture, eliminating the need for external PROFIBUS gateways or additional hardware.

• It supports advanced diagnostic and alarm handling features, improving system visibility and maintenance efficiency.

• It is designed for industrial reliability, ensuring stable performance in continuous-duty automation environments with heavy communication loads.

Technical FAQs

1. What is the main function of this module?
It enables PROFIBUS DP V1 master communication between CompactLogix/MicroLogix PLCs and PROFIBUS devices.

2. What type of network does it support?
It supports PROFIBUS DP V0 and DP V1 industrial fieldbus networks.

3. Which PLC platforms is it compatible with?
It is designed for CompactLogix and MicroLogix 1769 systems.

4. Is it a master or slave module?
It operates as a PROFIBUS master.

5. What type of devices can it connect to?
It connects to drives, remote I/O, sensors, and other PROFIBUS slave devices.

6. Is it suitable for retrofit applications?
Yes, it is commonly used to integrate legacy PROFIBUS networks into modern PLC systems.

7. Does it support diagnostic functions?
Yes, it supports DP V1 diagnostic and acyclic data services.

8. Does it require external gateways?
No, it installs directly into the PLC backplane.

9. Where is it commonly used?
It is used in manufacturing plants, process industries, and large automation systems.

10. Is it suitable for continuous operation?
Yes, it is designed for long-term industrial use in demanding environments.
