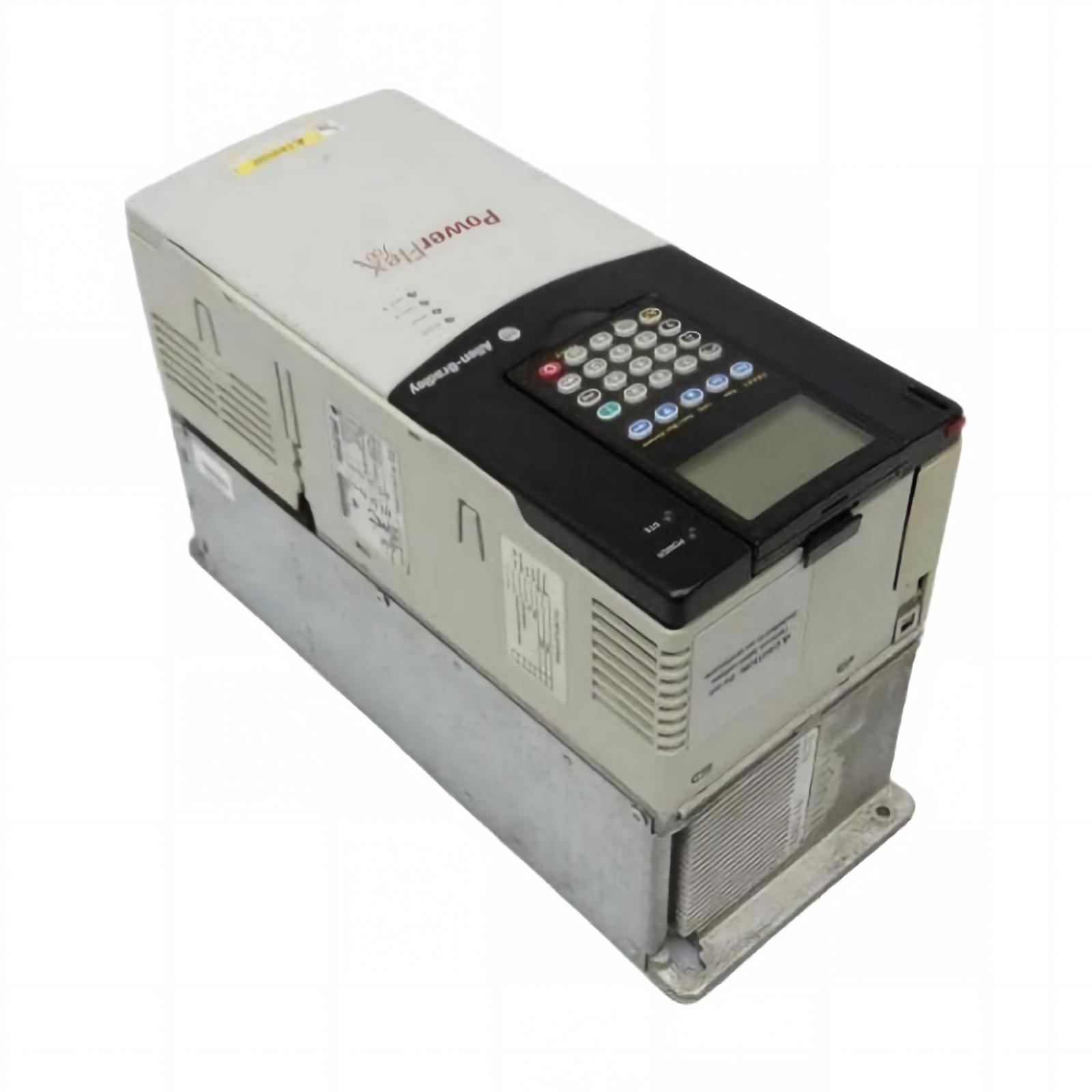

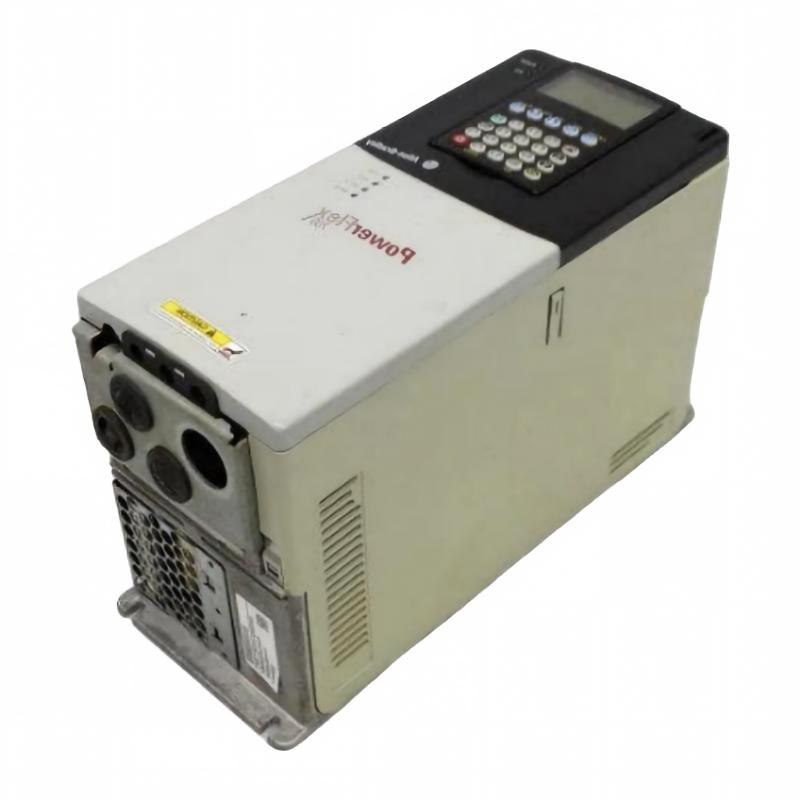

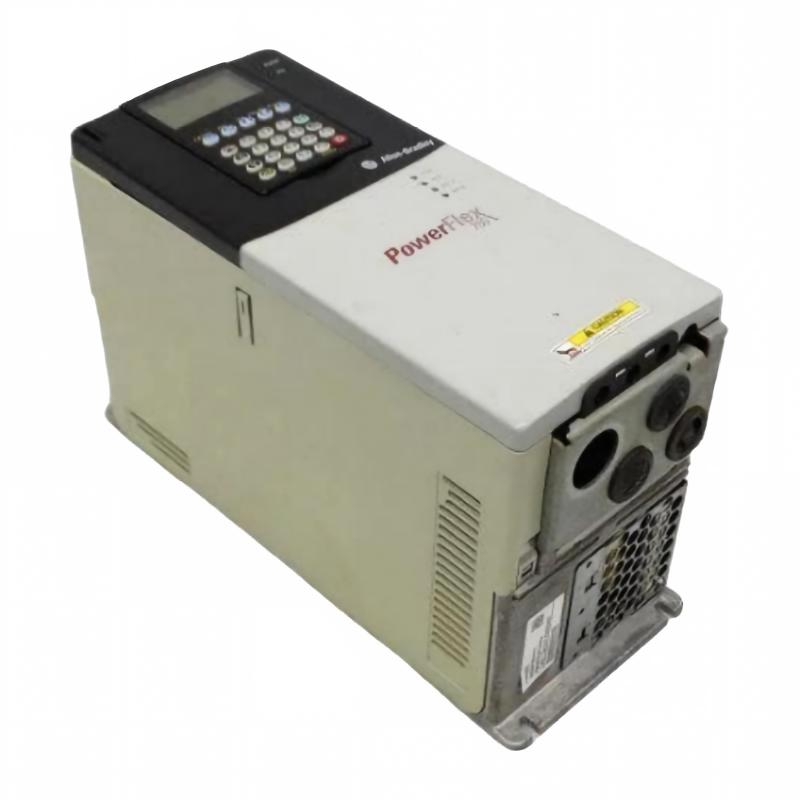

Allen Bradley 20BD022A0AYNANC0 PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BD022A0AYNANC0 PowerFlex 700 AC Drive is identified as an industrial variable-frequency drive in the PowerFlex 700 product family. AC drives regulate the operation of compatible motors, allowing equipment speed and operation to be adjusted according to process requirements.

Potential application areas for suitably configured PowerFlex drives include:

• Material handling systems: Conveyor equipment, transfer machinery, and automated production lines.

• Pumping applications: Industrial pumps requiring adjustable motor operation.

• Fans and ventilation: Motor-driven air-handling equipment in industrial facilities.

• Manufacturing machinery: Production equipment that requires controlled motor starting, stopping, or speed adjustment.

• Packaging and processing: Automated machinery that coordinates motor operation with production sequences.

• Industrial automation systems: Motor-control installations integrated with PLCs and other industrial control equipment.

The suitability of model 20BD022A0AYNANC0 for a specific application depends on its verified electrical ratings, motor characteristics, installed options, and operating environment. Confirm these details before selecting the drive for a new installation or replacement project.

Advantages

1. Adjustable Motor-Speed Control

The PowerFlex 700 family is designed for industrial variable-speed motor applications. Correct configuration allows motor operation to be adjusted to meet process requirements.

2. Integration with Automation Systems

A compatible drive can be incorporated into a larger control architecture, coordinating motor operation with machine commands and production sequences.

3. Flexible Industrial Applications

PowerFlex drives are used in a variety of motor-driven systems. Appropriate model selection helps match the drive to the application, load, and operating conditions.

4. Controlled Acceleration and Deceleration

Suitable drive settings can provide controlled motor acceleration and deceleration, helping reduce abrupt mechanical changes in compatible applications.

5. Potential Energy Optimization

Where process demand varies, reducing motor speed when full output is unnecessary may help reduce energy consumption. Actual savings depend on the load profile and overall system design.

6. Simplified Equipment Identification

The complete catalog number helps maintenance personnel identify the required unit and distinguish it from other models in the PowerFlex product range.

7. Support for Spare-Parts Management

Verifying the exact model and installed configuration helps purchasing teams evaluate replacement options and reduce the risk of ordering incompatible equipment.

Technical FAQs

Q1. What is the Allen Bradley 20BD022A0AYNANC0?

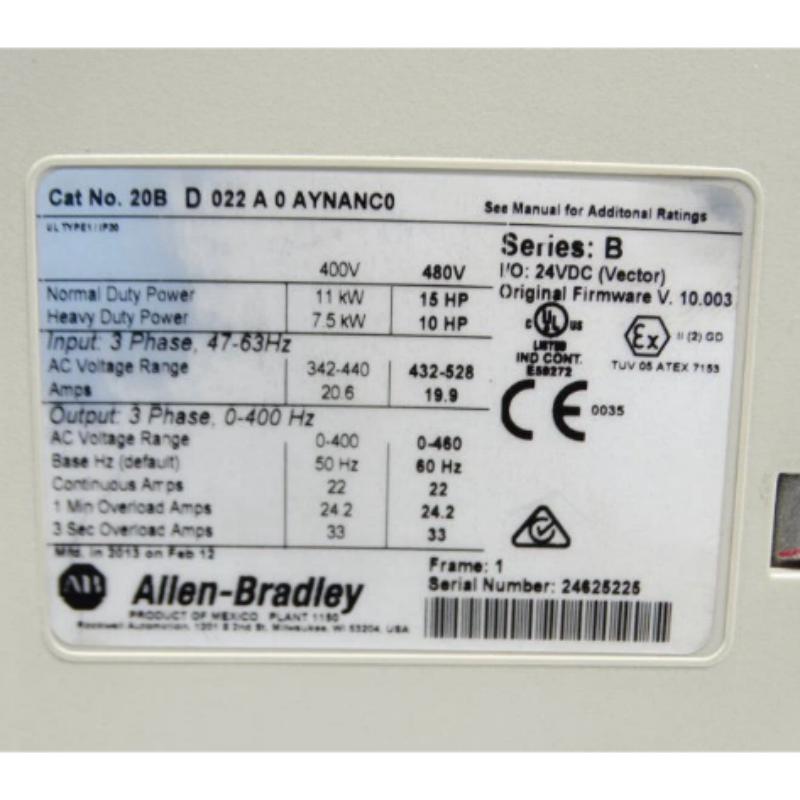

It is identified in this listing as an Allen Bradley PowerFlex 700 AC Drive. Its exact electrical ratings and hardware configuration should be confirmed using the product nameplate and model-specific documentation.

Q2. What is the primary function of a PowerFlex 700 AC drive?

An AC drive regulates the electrical supply to a compatible AC motor, enabling controlled motor operation and adjustable speed according to the application's configuration.

Q3. How can I determine whether this drive is suitable for my motor?

Compare the drive's rated voltage, output current, power rating, supported motor type, and control requirements with the motor nameplate. The load characteristics and required operating range should also be considered.

Q4. Can this drive work with a PLC?

PowerFlex drives can be integrated into industrial automation systems. The available control interfaces and communication protocols depend on the exact drive configuration and installed options.

Q5. Can the 20BD022A0AYNANC0 replace another PowerFlex 700 model?

Not automatically. Models in the same family may differ in electrical ratings, hardware configuration, and installed options. Check the complete catalog numbers and technical specifications before selecting a substitute.

Q6. What should I check if the drive will not start?

Inspect the incoming power supply, protective devices, drive status and fault indications, control commands, enable conditions, and motor connections. Follow the manufacturer's troubleshooting procedures and site electrical-safety requirements.

Q7. What can cause an incorrect motor speed?

Possible causes include an incorrect speed reference, unsuitable parameter settings, an unexpected command source, or a control-system configuration issue. Review the active reference and relevant settings before making adjustments.

Q8. How should a drive fault be diagnosed?

Record the fault code and operating conditions first. Then investigate the relevant supply, motor, load, wiring, and parameter conditions using the applicable technical documentation.

Q9. What safety measures are required before maintenance?

Qualified personnel should isolate all relevant power sources, follow lockout/tagout procedures, observe the specified DC-bus discharge period, and verify that hazardous voltage is absent before accessing electrical components.

Q10. What information should I provide when ordering this drive?

Provide the full catalog number, nameplate details, required quantity, and any available information about installed options. For a replacement project, include the existing drive's electrical ratings and control-system requirements.
