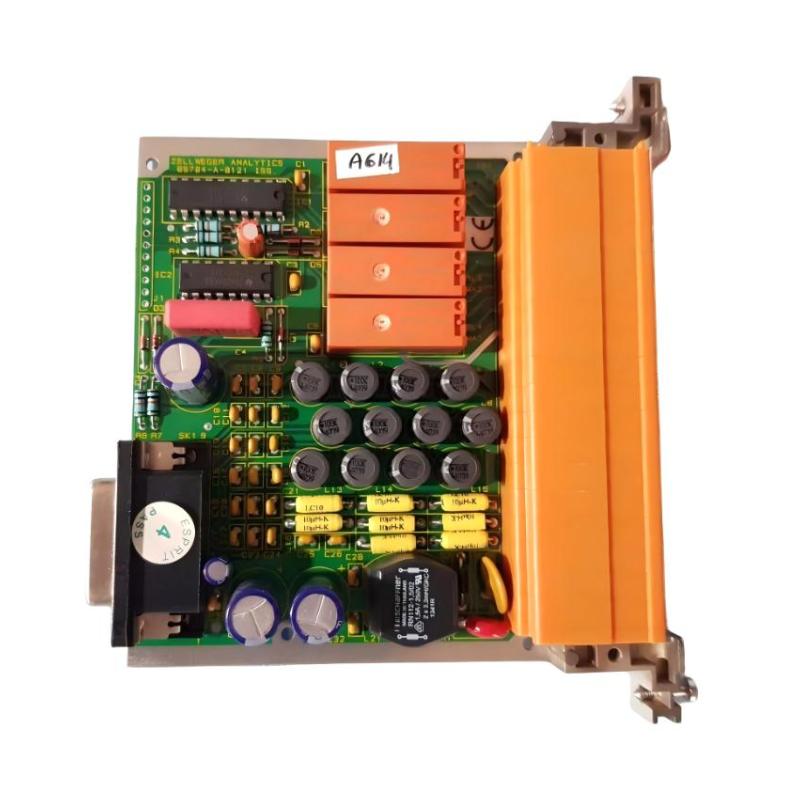

Honeywell 05704-A-0121 faults are commonly misdiagnosed as control card or sensor failures. Field evidence shows most issues originate from relay contact wear, wiring termination problems, or backplane instability.

Fault Symptoms in System 57 Relay Systems

• No relay activation during alarm condition
• Intermittent alarm output failure
• Relay chatter or unstable switching
• Incorrect relay mapping (wrong alarm output)
• Delayed alarm response

In one refinery fire system, A2 alarms were triggered in the control system but not reflected at the ESD panel due to relay output wiring issues.

Field Diagnostic Approach

1. Relay Output Verification

• Measure continuity across NO/NC contacts
• Confirm relay energization during alarm simulation
• Check for intermittent open circuits

A weak relay contact often behaves correctly under no load but fails under real field load conditions.

2. Terminal Connection Inspection

• Check tightening torque on relay terminals
• Inspect for corrosion or oxidation
• Verify correct wire placement (NO/NC/COM)

A partially loosened COM wire was found to be the root cause of repeated false “no alarm output” events.

3. Backplane and Power Stability Check

• Confirm stable 24 V DC supply
• Check ripple and voltage dips under load
• Inspect backplane connector seating

Voltage dips during motor startup can cause relay dropouts if system grounding is weak.

Common Field Failure Modes

Relay Contact Wear (Most Common in Aging Systems)

• Symptoms: intermittent output failure
• Fix: replace interface card or relay assembly

Loose Terminal Wiring

• Symptoms: random alarm loss
• Fix: re-terminate and tighten wiring

Electrical Noise / Inductive Interference

• Symptoms: relay chatter or unstable switching
• Fix: add suppression diodes and improve grounding

Field Recovery Case Study

Scenario: Fire alarm not reaching shutdown system.

Diagnosis:

• Control system confirmed A2 alarm active
• Relay output at 05704-A-0121 not switching reliably
• Loose COM terminal found on RL3 circuit

Corrective Actions:

• Re-terminated relay wiring
• Tightened all output terminals
• Verified full relay function under test

Result:
Alarm chain restored; system passed full safety loop validation.
