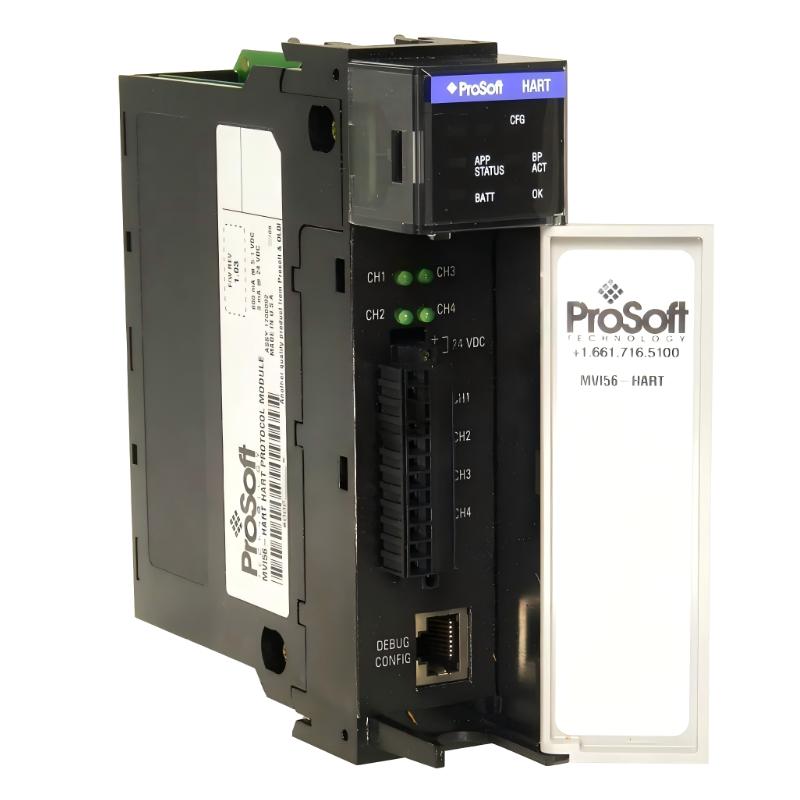

ProSoft MVI56-HART HART Multipoint Master Communication Module

Applications

• HART Field Device Integration
Enables communication between ControlLogix systems and HART-enabled instruments such as transmitters, valves, and smart sensors.

• Process Industry Automation
Widely used in chemical, oil and gas, refining, and petrochemical plants for field instrumentation management.

• Flow, Pressure, and Temperature Monitoring
Supports real-time data acquisition from HART-compatible measurement devices.

• Asset Management Systems
Facilitates device diagnostics, configuration, and health monitoring through HART communication.

• Remote Monitoring Stations
Ideal for offshore platforms, pipelines, and distributed industrial assets requiring multipoint communication.

• Energy and Utility Systems
Used in power plants and utility networks for intelligent field device integration.

• Industrial Maintenance Systems
Supports predictive maintenance by accessing diagnostic data from smart instruments.

• SCADA and DCS Integration
Provides reliable data exchange between field devices and supervisory control systems.

Key Advantages

• Multi-Drop HART Architecture
Supports multiple HART devices on a single channel, improving network efficiency and reducing wiring complexity.

• High Device Capacity per Channel
Allows connection of multiple field instruments on each master port for scalable system design.

• Advanced Device Diagnostics
Enables access to detailed device health and status information for predictive maintenance.

• Flexible Communication Modes
Supports both point-to-point and multi-drop HART configurations depending on application needs.

• Robust Industrial Performance
Designed for continuous operation in harsh process environments.

• Efficient Data Acquisition
Collects and organizes field device data into a structured internal database for PLC access.

• Seamless ControlLogix Integration
Works directly within Rockwell Automation ControlLogix architectures.

• Improved Asset Visibility
Provides enhanced insight into field instrumentation performance and condition.

Technical FAQs

1. What is the main function of the MVI56-HART module?

It enables ControlLogix systems to communicate with HART-compatible field devices in both point-to-point and multi-drop configurations.

2. How many HART devices can be connected?

Each channel can support multiple HART devices, typically up to 15 per channel depending on configuration.

3. What type of devices can it communicate with?

It supports HART-enabled transmitters, sensors, valves, and other intelligent field instruments.

4. Does it support multi-drop communication mode?

Yes. It fully supports HART multi-drop operation for connecting multiple devices on a single loop.

5. Can it be used for asset management applications?

Yes. It provides diagnostic and status data useful for predictive maintenance systems.

6. How does it communicate with the PLC?

It exchanges data with ControlLogix processors through the backplane architecture.

7. Is configuration required before use?

Yes. The module must be configured for channel settings, device addressing, and data mapping.

8. Can it operate in harsh industrial environments?

Yes. It is designed for process industries with continuous and demanding operating conditions.

9. Does it support diagnostic functions?

Yes. It provides access to device-level diagnostics and communication status information.

10. What industries commonly use this module?

It is commonly used in oil and gas, chemical processing, power generation, and water treatment industries.
