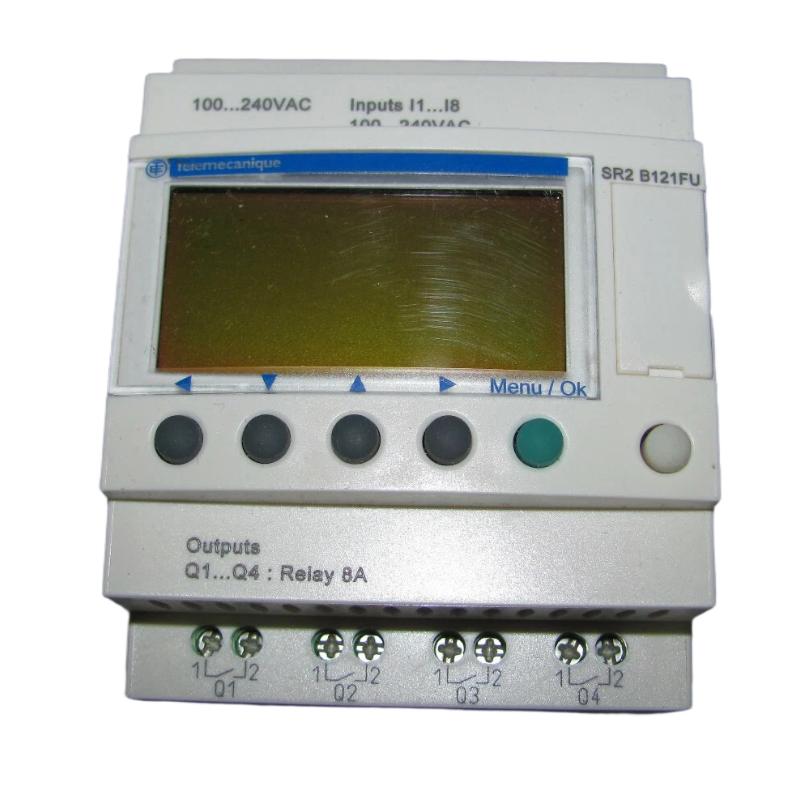

Introduction to Schneider SR2B121FU Compact Intelligent Relay

The Schneider SR2B121FU Compact Intelligent Relay is a dependable programmable control solution designed for applications where compact size, simple operation, and reliable automation performance are required. Belonging to the Zelio Logic series, this smart relay provides an efficient way to implement automation functions without requiring a full-scale PLC system.

The device integrates essential automation features including programmable logic, relay outputs, clock management, local display, and memory protection. These capabilities make it suitable for applications requiring flexible control sequences and easy maintenance.

For machine builders and industrial users, the SR2B121FU offers a practical combination of performance, simplicity, and reliability. It helps reduce control cabinet complexity while providing professional automation functionality for small and medium control projects.

Technical Specifications of Schneider SR2B121FU Compact Intelligent Relay

Specification	Details
Product Type	Compact Intelligent Relay
Model Number	SR2B121FU
Product Family	Zelio Logic
Supply Voltage	100–240 V AC
Supply Frequency	50/60 Hz
Total I/O Points	12
Digital Inputs	8
Relay Outputs	4
Local Display	Integrated LCD Display
Clock Function	Yes
Programming Method	Ladder Logic / Function Block Diagram
Program Memory	EEPROM
Backup Retention	10 Years at 25°C
Cycle Time	6–90 ms
Mounting Type	DIN Rail Mount
Application Type	Industrial Automation Control
Dimensions	107.6 × 71.2 × 59.5 mm
Weight	0.25 kg (0.55 lb)

Recommended Related Models

Model	Product Type	Application
Schneider SR2B121BD	Compact Intelligent Relay	24 V DC Automation Control
Schneider SR2B201FU	Compact Intelligent Relay	Expanded Small Machine Control
Schneider SR2E121FU	Smart Relay Module	Compact Logic Applications
Schneider SR3B261FU	Advanced Intelligent Relay	Larger Zelio Logic Systems

Popular Related Models

Model	Product Type
Schneider SR2A101FU	Compact Intelligent Relay
Schneider SR2B121BD	Compact Intelligent Relay
Schneider SR2B201FU	Compact Intelligent Relay
Schneider SR3B261FU	Smart Relay Controller
Schneider SR3XT101FU	Zelio Logic Extension Module

Automation Applications and Intelligent Control Integration

The Schneider SR2B121FU Compact Intelligent Relay is a flexible programmable control device designed for compact automation systems requiring reliable logic processing, efficient control management, and simplified installation. As part of the Zelio Logic smart relay family, the SR2B121FU provides an effective solution between traditional relay circuits and advanced PLC-based control systems.

This intelligent relay is widely applied in small machine automation, lighting control systems, pump management, HVAC equipment, building automation, access control systems, and industrial sequence control applications. With integrated logic functions, clock capability, display interface, and relay outputs, it enables engineers to build customized automation solutions with reduced wiring complexity.

Designed for OEM equipment manufacturers, system integrators, and maintenance engineers, the SR2B121FU helps improve control efficiency while reducing the space and cost requirements typically associated with traditional control panels.

Key Advantages and Industrial Performance Features

Compact Automation Controller with Integrated Functions
The SR2B121FU combines programmable logic processing, input monitoring, relay output control, display functions, and timing operations in a single compact unit. This integrated design allows users to create efficient control systems without additional complex hardware.

Simple Programming for Faster Commissioning
Supporting ladder logic and function block programming methods, the SR2B121FU allows technicians to develop and modify control programs quickly. The built-in display and navigation interface simplify parameter adjustment, operation monitoring, and troubleshooting.

Reliable Relay Output Control
Equipped with four relay outputs and eight discrete inputs, the SR2B121FU is suitable for controlling contactors, valves, motors, indicator devices, and other electrical components used in compact automation applications.

Built-In Clock and Scheduling Capability
The integrated clock function allows users to create time-based automation sequences, making the relay suitable for applications such as lighting schedules, energy management systems, and automatic equipment operation.

Secure Program Storage and Recovery
The internal EEPROM memory protects user programs and maintains configuration data during power interruptions. This improves system reliability and reduces the risk of programming loss.

Efficient DIN Rail Installation
The compact housing design allows convenient DIN rail mounting inside electrical cabinets, helping engineers optimize panel space while maintaining professional industrial installation standards.

Technical FAQs About Schneider SR2B121FU Compact Intelligent Relay

Q1: What applications are suitable for the Schneider SR2B121FU?
A: The SR2B121FU is suitable for small automation systems, machine control, lighting management, HVAC applications, pump control, and industrial sequencing tasks.

Q2: What power supply does the SR2B121FU require?
A: The SR2B121FU operates with a 100–240 V AC power supply, making it suitable for many industrial and commercial electrical systems.

Q3: How many inputs and outputs are available on this smart relay?
A: The SR2B121FU provides 12 I/O points, including 8 discrete inputs and 4 relay outputs for automation control applications.

Q4: Which programming methods are supported by the SR2B121FU?
A: The relay supports ladder logic programming and function block diagram programming, allowing flexible control logic development.

Q5: Can the SR2B121FU replace traditional relay control circuits?
A: Yes. It can replace complex relay-based circuits by integrating timers, counters, logic operations, and sequence functions into one programmable device.

Q6: How is the user program protected after power loss?
A: The SR2B121FU uses EEPROM memory technology to retain user programs and settings, supporting reliable recovery after power interruptions.

Q7: What should technicians check if outputs do not operate correctly?
A: Technicians should verify input signals, program logic, output wiring, load conditions, and relay status during troubleshooting.

Q8: Can the SR2B121FU control industrial equipment directly?
A: Yes. Its relay outputs can control compatible industrial loads such as contactors, valves, and signal devices within the specified electrical limits.

Q9: How can incorrect automation sequences be diagnosed?
A: Engineers should review ladder logic programs, timer settings, counter values, input states, and real-time operating conditions.

Q10: What maintenance practices are recommended for the SR2B121FU?
A: Regular inspection of wiring terminals, cabinet environment, program backups, and operating conditions helps ensure stable long-term performance.
