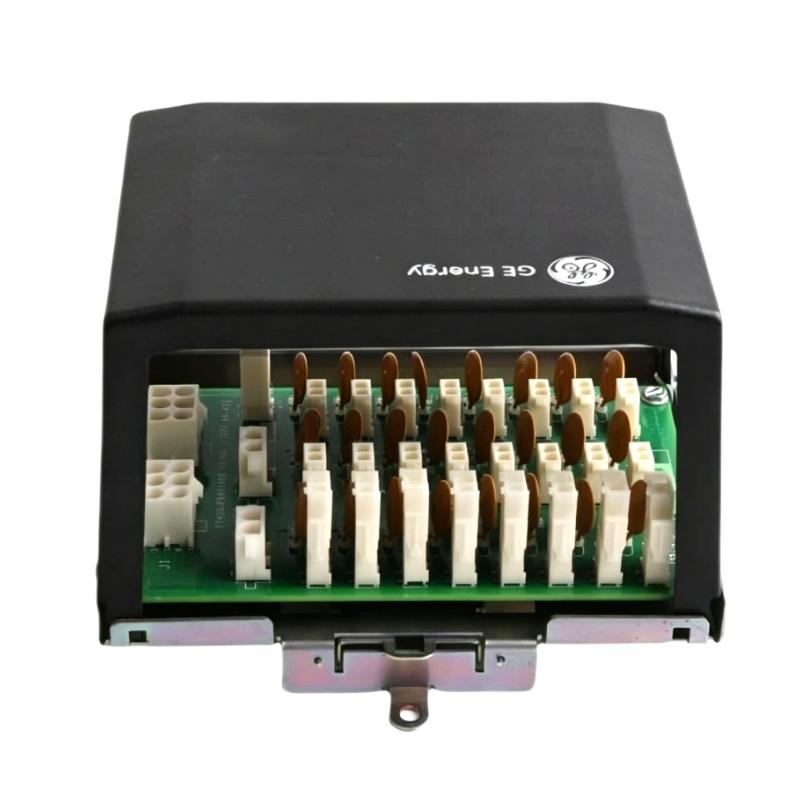

GE IS400JPDHG1A High-density Power Distribution Board

Applications

• Power distribution management in GE Mark VIe turbine control systems

• 28V DC supply routing for multiple I/O packs and Ethernet switches in automation cabinets

• Redundant and scalable power architecture for power plants and process industries

• High-reliability control cabinet power segmentation in gas and steam turbine systems

• Industrial retrofit projects upgrading legacy distribution boards in Mark VIe platforms

• Compact power allocation solution for multi-channel control system architectures

Advantages

• High-density architecture enables efficient power distribution to up to 24 I/O packs

• Supports scalable system expansion through daisy-chain configuration

• Integrated protection design improves circuit reliability and reduces failure risk

• Optimized for GE Mark VIe systems ensuring seamless platform compatibility

• Rugged industrial-grade construction suitable for power generation environments

• Compact layout reduces cabinet space while maintaining high output capacity

Technical FAQs

Q1: What is the main function of the IS400JPDHG1A?
It distributes 28V DC power to I/O packs and Ethernet switches in GE Mark VIe systems.

Q2: How many devices can it typically support?
It can support up to 24 I/O packs and 3 Ethernet switches.

Q3: Is it part of a redundant system architecture?
Yes, it supports simplex, redundant, and TMR system configurations.

Q4: Does it include protection features?
Yes, each output channel includes protection using PTC fuse technology.

Q5: Can multiple boards be connected together?
Yes, it supports daisy-chain expansion for larger systems.

Q6: What is the input voltage?
It typically operates on 28V DC input power.

Q7: Is it used outside turbine systems?
It is primarily designed for GE Mark VIe turbine and industrial control systems.

Q8: Does it require software configuration?
No direct configuration is required; it is system-integrated hardware.

Q9: What kind of environment is it designed for?
It is designed for harsh industrial environments such as power plants.

Q10: Is it still widely used today?
Yes, it remains common in installed GE Mark VIe infrastructures.
