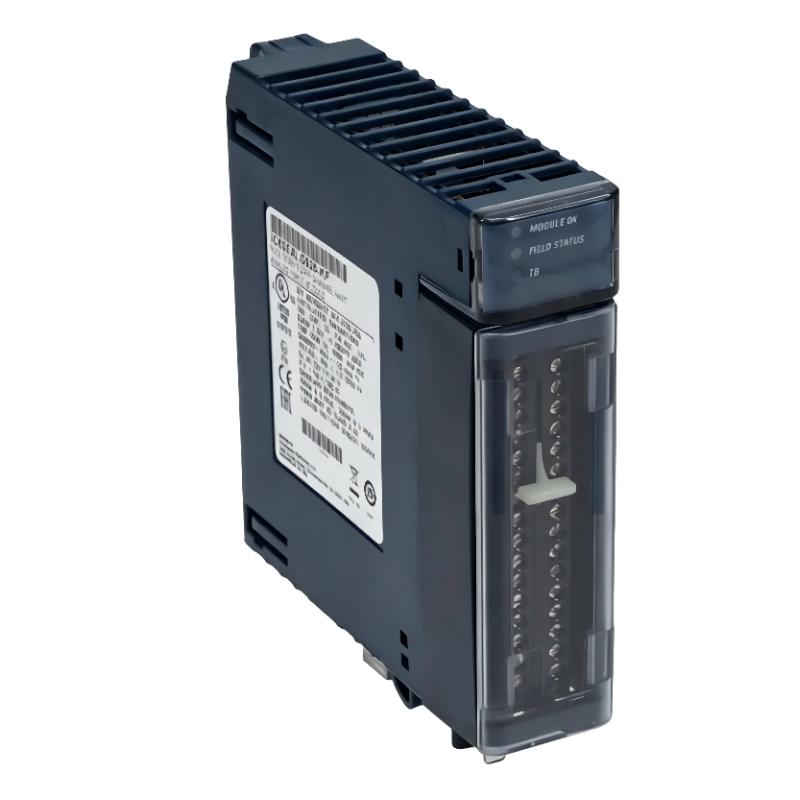

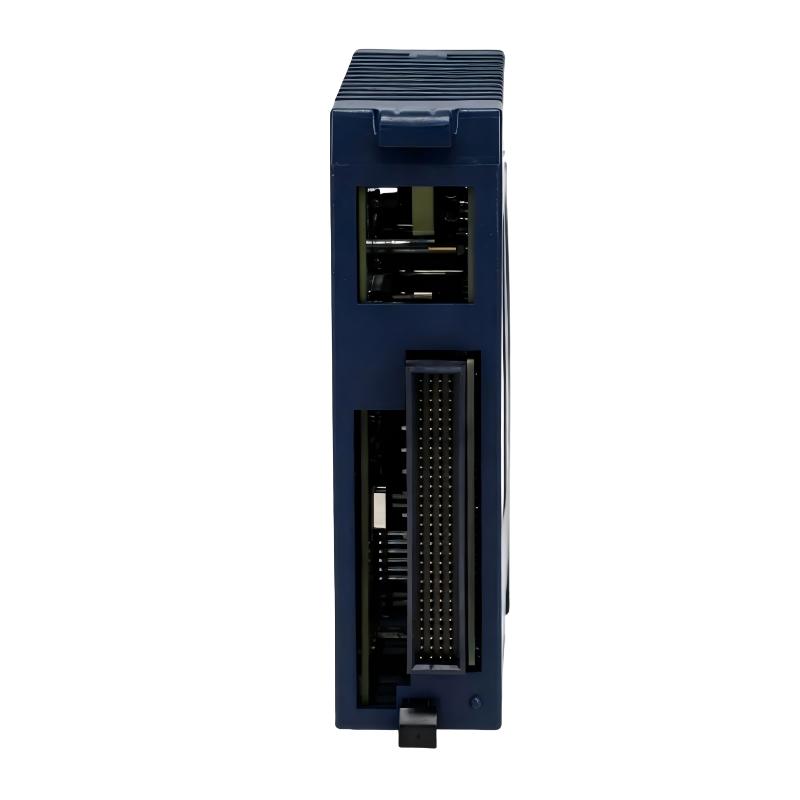

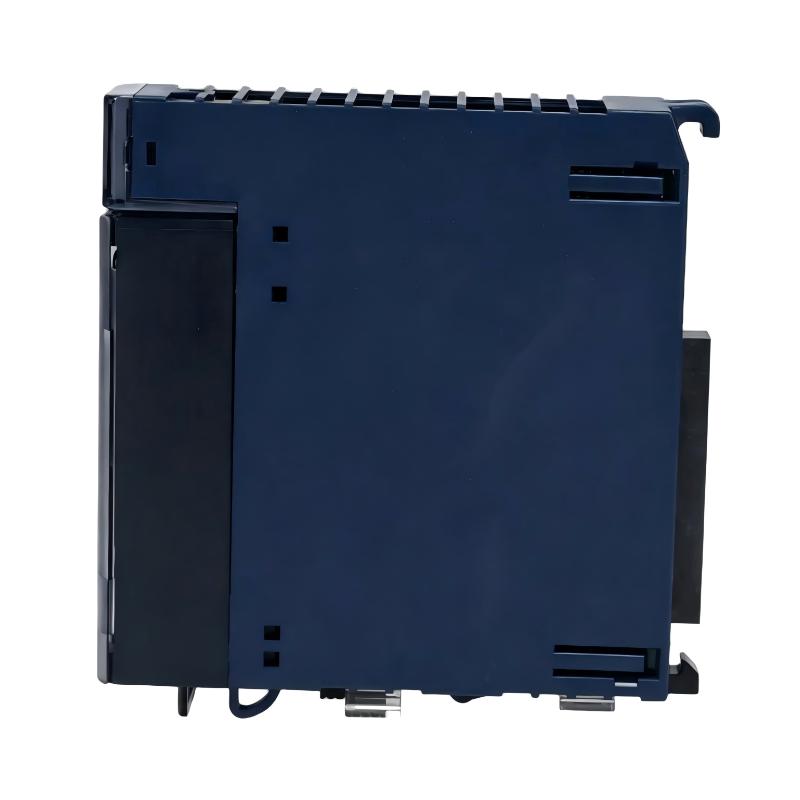

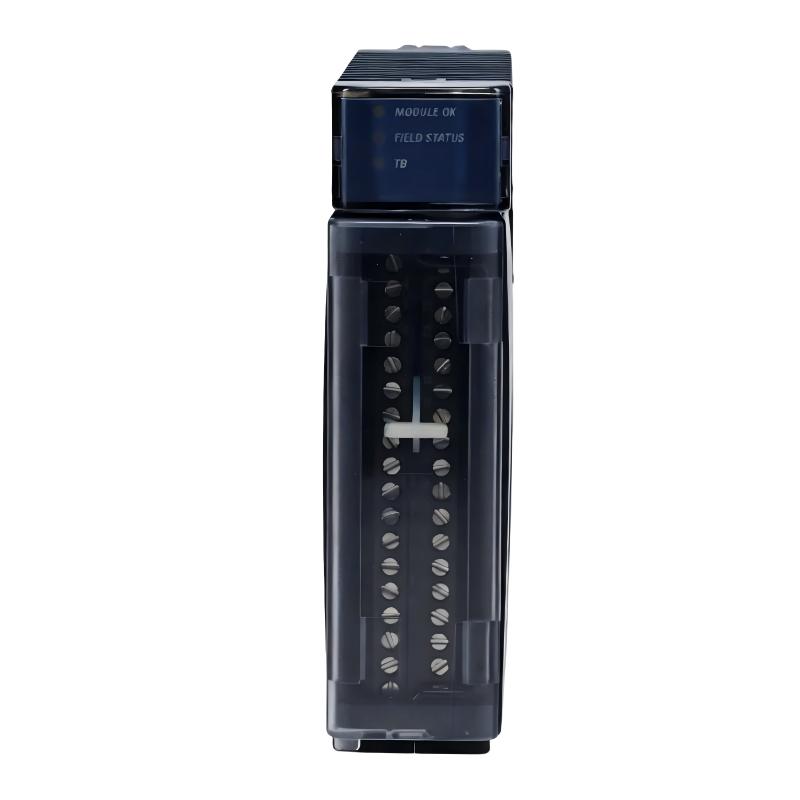

GE IC695ALG626CA RX3i Analog Input Module

Applications

• Process Measurement Systems
Used for acquiring analog signals from transmitters, sensors, and process instruments in industrial automation systems.

• Oil and Gas Facilities
Provides accurate monitoring of pressure, flow, temperature, and level measurements in upstream and downstream applications.

• Chemical and Petrochemical Plants
Supports continuous process control with high-resolution analog signal acquisition.

• Water and Wastewater Treatment Systems
Collects process variables from field instruments for pump stations and treatment facilities.

• Power Generation Systems
Monitors critical operating parameters in turbines, boilers, and auxiliary equipment.

• Factory Automation Applications
Integrates analog devices into PACSystems RX3i control architectures for precise machine control.

• Distributed I/O Networks
Supports centralized monitoring of multiple field signals with flexible channel configurations.

• System Expansion Projects
Provides additional analog input capability for growing control systems.

Key Advantages

• High-Density Channel Design
Supports 16 single-ended inputs or 8 differential inputs for flexible signal acquisition.

• Wide Signal Compatibility
Accepts voltage and current ranges to accommodate various field devices.

• Integrated HART Communication Capability
Provides enhanced diagnostics and smart device integration.

• 24-Bit Resolution Performance
Delivers accurate and stable measurements for demanding applications.

• Software Configurable Architecture
Eliminates the need for hardware jumpers and simplifies setup.

• Advanced Diagnostic Functions
Supports alarm detection, fault reporting, and open-circuit monitoring.

• Optimized for PACSystems RX3i
Ensures seamless integration with GE RX3i platforms.

• Industrial-Grade Reliability
Designed for continuous operation in harsh environments.

Technical FAQs

1. What is the primary function of IC695ALG626CA?
It acquires analog voltage and current signals from field devices and converts them into digital data for RX3i controllers.

2. How many channels does the module support?
It provides 16 single-ended inputs or 8 differential input channels.

3. Does the module support HART communication?
Yes, it supports HART 5.0 communication capabilities.

4. What signal types are accepted?
It supports ±10 V, 0–10 V, ±5 V, 0–5 V, 1–5 V, 0–20 mA, 4–20 mA, and ±20 mA signals.

5. Is channel configuration software-based?
Yes, channel settings are configured through software without jumpers.

6. Does it provide diagnostic features?
Yes, it includes fault reporting, open-circuit detection, and alarm functions.

7. Which platform is it compatible with?
It is designed for the GE PACSystems RX3i series.

8. Can it be used in process industries?
Yes, it is widely used in oil & gas, chemical, water treatment, and power applications.

9. Does the module support continuous operation?
Yes, it is designed for reliable 24/7 industrial service.

10. Does it require a separate terminal block?
Yes, compatible RX3i terminal blocks are required for field wiring.
