Brand:Epro PLC Item No.:PR6424/019-021 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

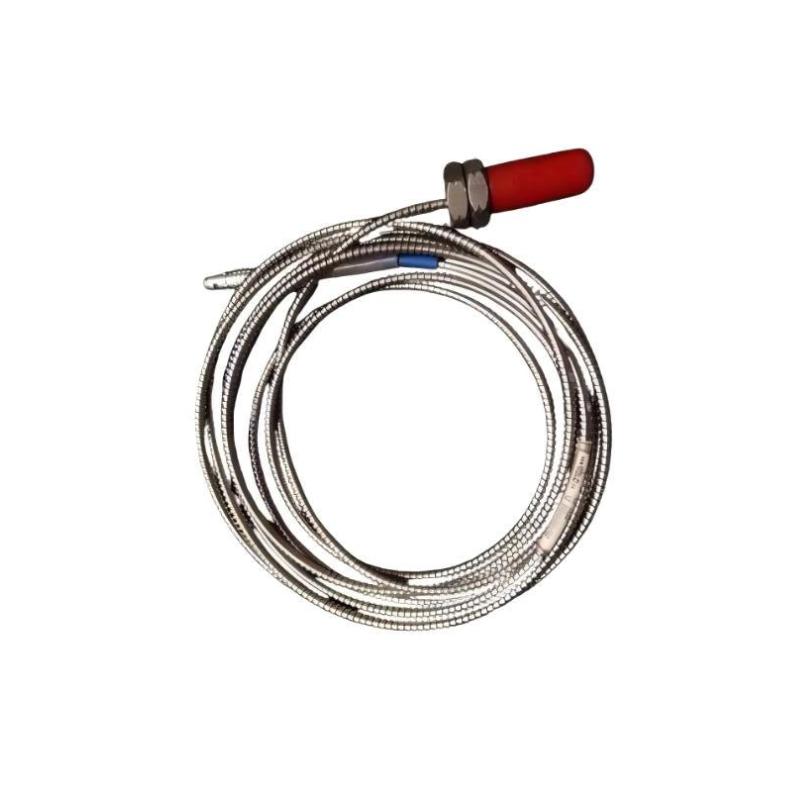

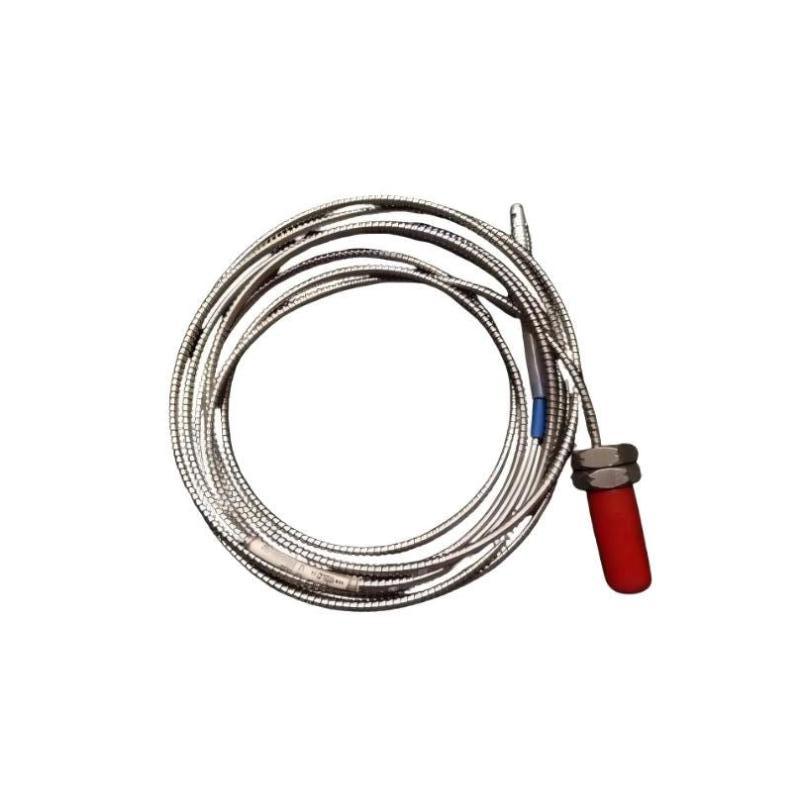

The Epro PR6424/019-021 is a 16mm eddy current proximity sensor used for high-precision measurement of shaft displacement and vibration in rotating machinery protection systems.
It plays a critical role in predictive maintenance and machinery protection by providing continuous real-time data that helps detect early-stage mechanical faults, improving reliability and operational safety in industrial environments.
Technical Specifications
Parameter
Specification
Product Type
Eddy Current Proximity Sensor
Series
Epro PR6424
Model
PR6424/019-021
Sensor Head Diameter
16 mm
Measurement Principle
Eddy current (non-contact)
Sensitivity
4 V/mm
Linearity
±1.5%
Static Measurement Range
±2.0 mm
Dynamic Range
0 to 1000 µm
Nominal Air Gap
~2.7 mm
Operating Temperature
-35 to 180°C
Target Material
Ferromagnetic steel
Minimum Shaft Diameter
≥80 mm
Weight
0.2 kg (0.44 lb)
Applications
The Epro PR6424 series 16mm eddy current sensor is widely used in turbomachinery condition monitoring systems where precise measurement of shaft dynamic behavior is required.
It is commonly applied in steam turbines, gas turbines, hydro turbines, compressors, pumps, and industrial fans. In turbine applications, it provides continuous monitoring of radial shaft vibration and axial displacement. In compressor and pump systems, it supports early detection of mechanical faults such as imbalance, misalignment, rotor instability, and bearing wear.
It is also widely used in high-reliability protection systems where continuous real-time vibration data is required to ensure safe operating conditions and prevent equipment damage.
Advantages
This sensor is engineered for high accuracy, long-term stability, and robust industrial performance.
It delivers non-contact eddy current measurement with excellent linearity, ensuring precise displacement and vibration tracking even under high-speed rotation. The 16mm probe design provides a balanced sensing field suitable for a wide range of shaft sizes in medium and large rotating machinery.
It is designed with strong resistance to temperature variation, vibration, and electromagnetic interference, making it suitable for continuous operation in harsh industrial environments such as power plants and petrochemical facilities. Low drift characteristics support long calibration intervals and stable long-term monitoring performance.
Technical FAQs
Q1: What measurement principle does this sensor use?
It uses eddy current technology for non-contact displacement measurement.
Q2: What is the main function of this sensor?
It measures shaft vibration, axial position, and eccentricity in rotating machinery.
Q3: Is it suitable for turbine applications?
Yes, it is widely used in steam, gas, and hydro turbine monitoring systems.
Q4: Does it require physical contact with the shaft?
No, it operates without contact.
Q5: What output signal does it provide?
It requires a compatible converter to generate a standardized voltage output.
Q6: Can it measure both static and dynamic displacement?
Yes, it supports both steady position and dynamic vibration measurement.
Q7: Is it suitable for high-speed rotating equipment?
Yes, it is designed for turbomachinery and high-RPM applications.
Q8: How does it handle harsh environments?
It is resistant to temperature variation, vibration, and electromagnetic interference.
Q9: Does it require frequent calibration?
No, it is designed for long-term stability with minimal drift.
Q10: What industries commonly use this sensor?
Power generation, oil and gas, petrochemical, and heavy industrial sectors.
