Brand:Epro PLC Item No.:PR6424/019-100 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

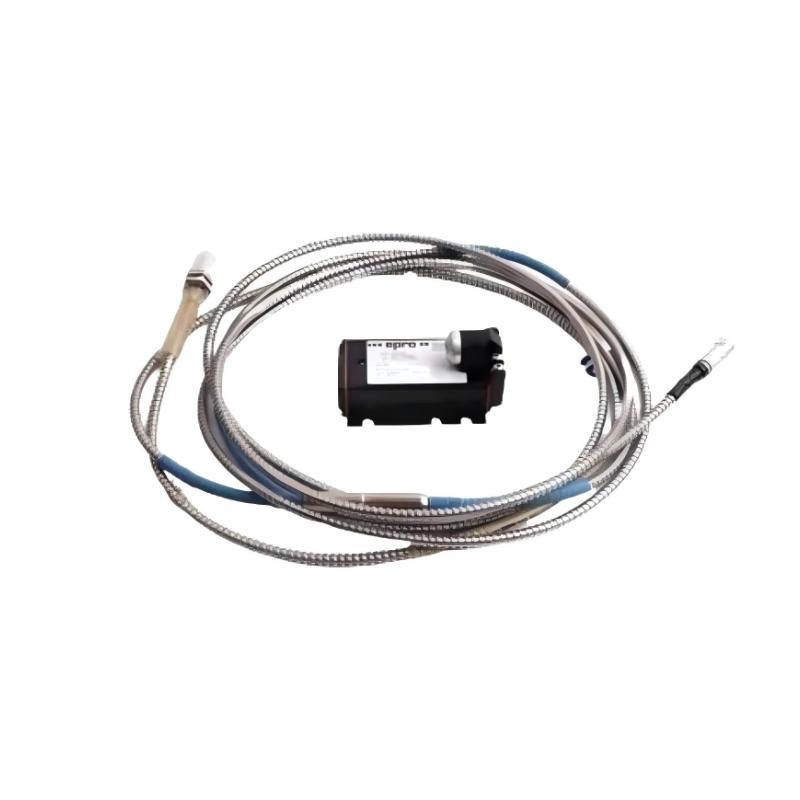

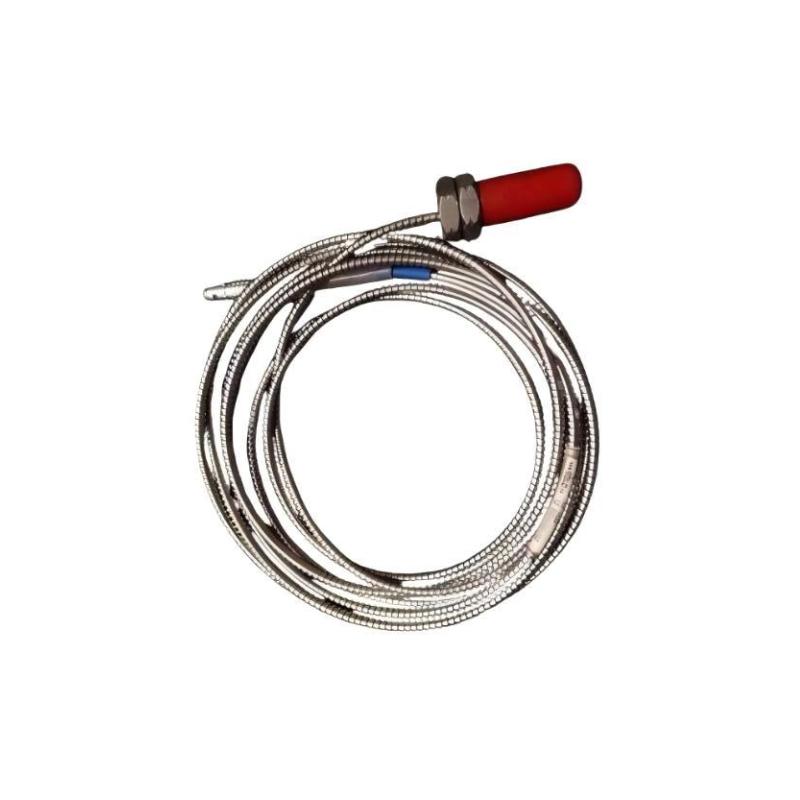

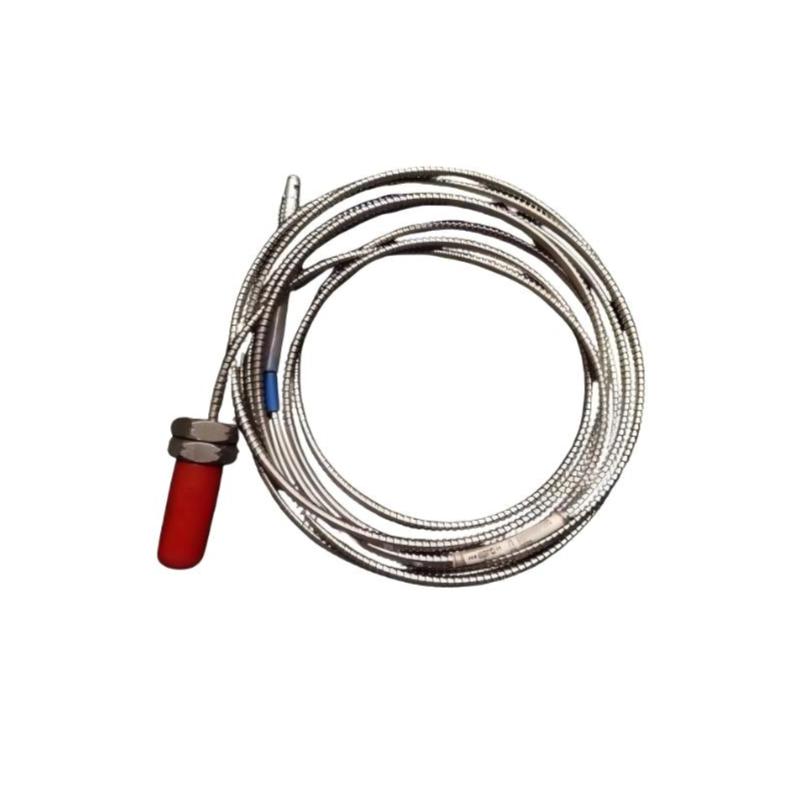

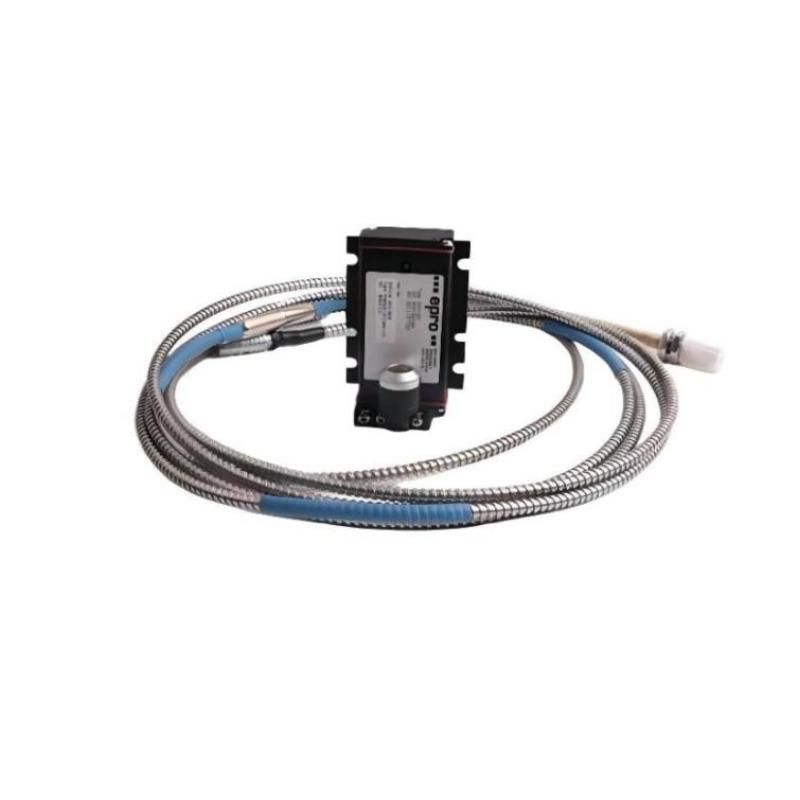

The Epro PR6424/019-100 is part of the 16mm eddy current sensor family designed for precise non-contact measurement of shaft displacement in rotating machinery systems.
It plays a critical role in machinery protection architectures by delivering continuous real-time vibration data, enabling early fault detection and improving operational safety and reliability in industrial environments.
Technical Specifications
Parameter
Specification
Product Type
Eddy Current Proximity Sensor
Series
Epro PR6424
Model
PR6424/019-100
Sensor Head Diameter
16 mm
Measurement Principle
Eddy current (non-contact)
Sensitivity
4 V/mm (typical for PR6424 family)
Linearity
±1.5%
Static Measurement Range
±2.0 mm
Dynamic Range
0 to 1000 µm
Nominal Air Gap
~2.7 mm
Operating Temperature
-35 to 180°C
Target Material
Ferromagnetic steel
Minimum Shaft Diameter
≥80 mm
Weight
0.2 kg (0.44 lb)
Applications
The Epro PR6424/019-100 is used in industrial rotating machinery where stable and continuous displacement measurement is required for protection and predictive maintenance.
It is commonly applied in steam turbines, gas turbines, hydro turbines, compressors, pumps, and large industrial fans. In turbine systems, it supports radial shaft vibration and axial displacement monitoring. In compressors and pump systems, it enables early detection of mechanical issues such as misalignment, rotor instability, imbalance, and bearing degradation.
This sensor is also widely used in machinery protection systems compliant with industrial standards such as API 670, where real-time vibration data is required to prevent equipment damage and ensure safe operation of critical assets.
Advantages
This sensor uses eddy current technology to provide non-contact, high-stability measurement with strong resistance to industrial environmental interference.
It delivers accurate linear displacement output with consistent repeatability, making it suitable for continuous monitoring of high-speed rotating equipment. The 16mm probe head ensures a stable electromagnetic field distribution for reliable shaft measurement in large machines.
It is designed for long-term operation under harsh conditions, including temperature variation, vibration, and electrical noise. The sensor also maintains low drift performance, supporting extended calibration intervals and reducing maintenance requirements.
Technical FAQs
Q1: What measurement principle does this sensor use?
It uses eddy current induction for non-contact displacement measurement.
Q2: What is the main function of this model?
It measures shaft vibration, position, and eccentricity in rotating machinery.
Q3: Is it suitable for turbine applications?
Yes, it is widely used in steam, gas, and hydro turbine monitoring systems.
Q4: Does it require physical contact with the shaft?
No, it operates without physical contact.
Q5: What type of signal output does it provide?
It requires a compatible signal converter to generate a proportional voltage output.
Q6: Can it measure both static and dynamic displacement?
Yes, it supports both static position and dynamic vibration measurement.
Q7: Is it suitable for high-speed machinery?
Yes, it is designed for turbomachinery and high-RPM applications.
Q8: How does it perform in harsh environments?
It is resistant to temperature variation, vibration, and electromagnetic interference.
Q9: Does it require frequent calibration?
No, it is designed for long-term stability with low drift characteristics.
Q10: What industries use this sensor most often?
Power generation, oil and gas, petrochemical, and heavy industrial sectors.
