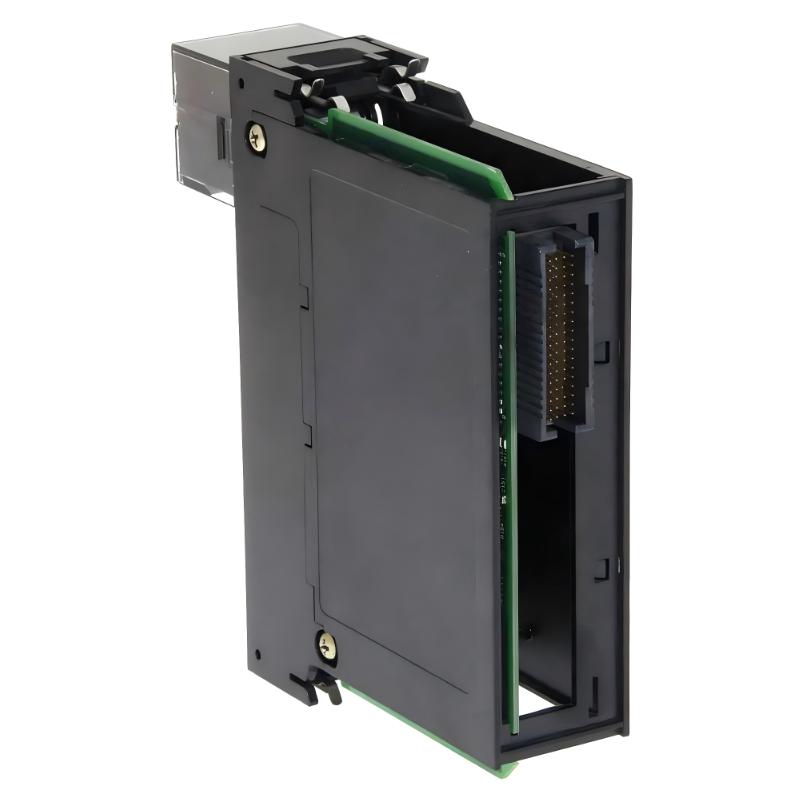

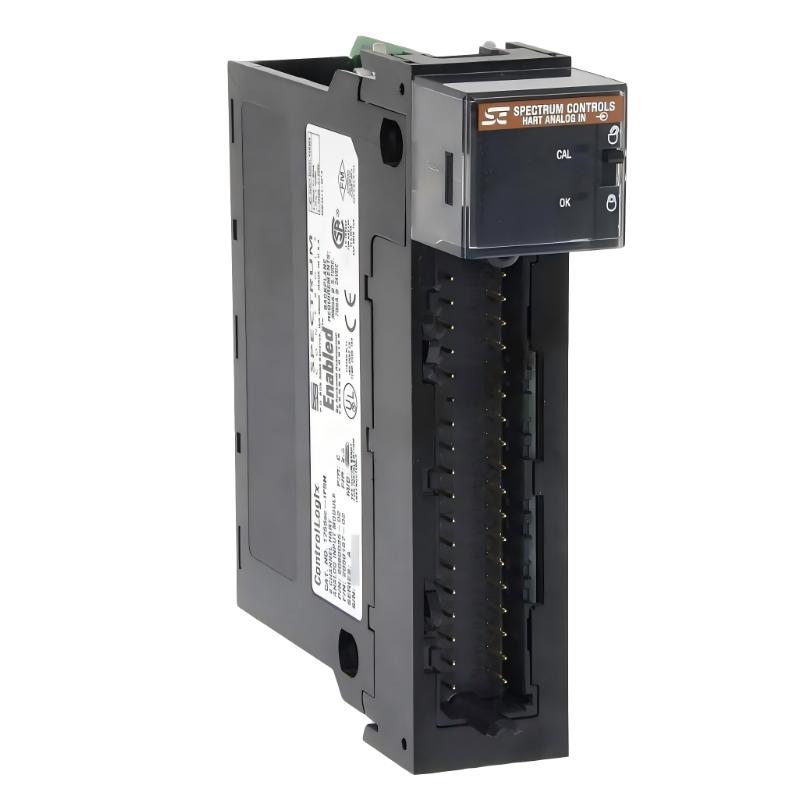

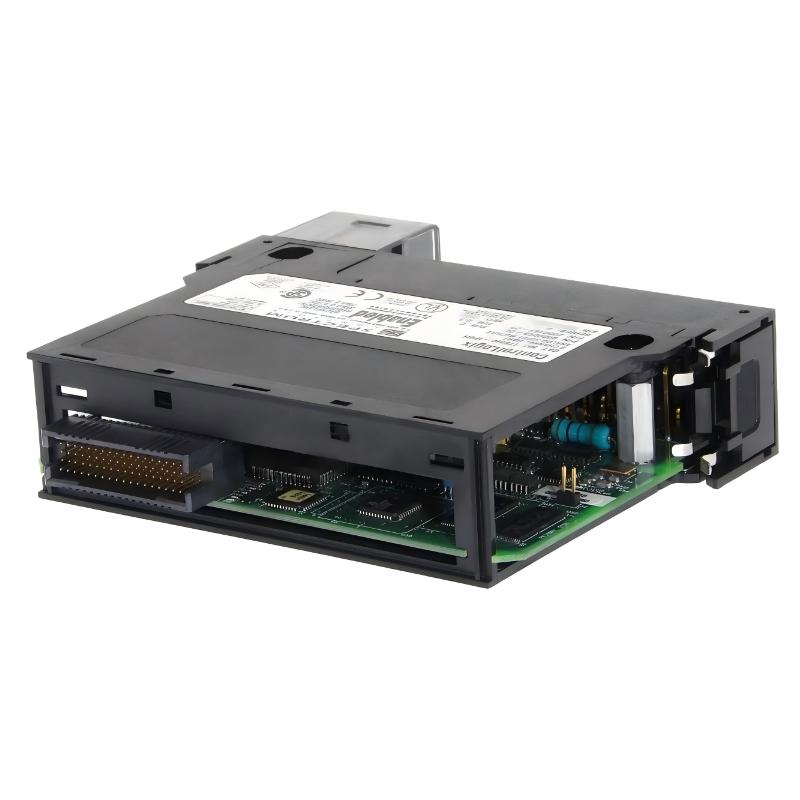

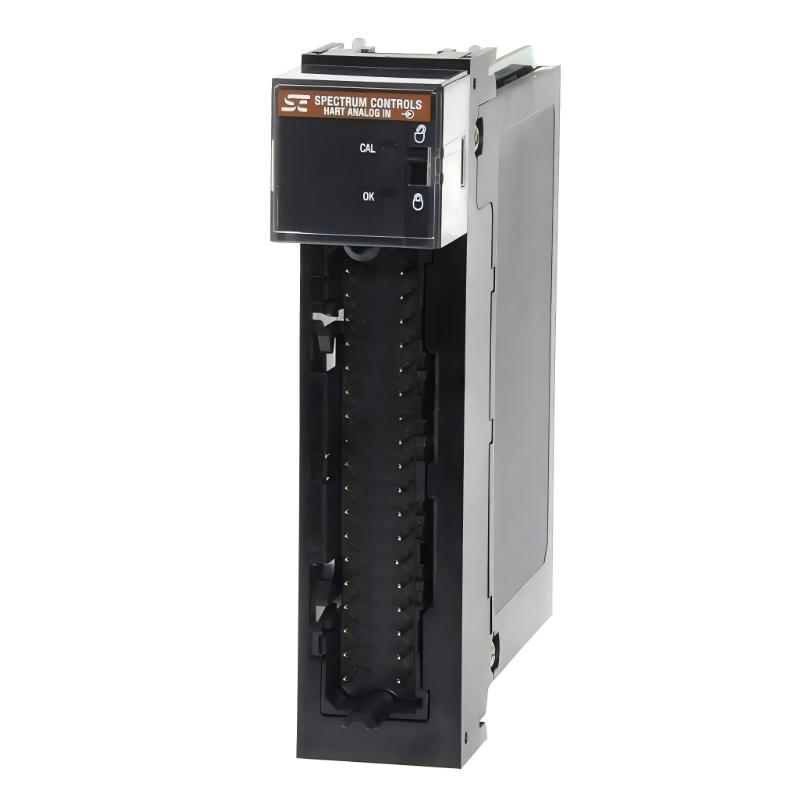

Allen Bradley 1756SC-IF8H ControlLogix Analog Current/Voltage Input Module
Allen Bradley 1756SC-IF8H ControlLogix Analog Current/Voltage Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1756SC-IF8H Product Origin:USA Product Dimensions:145.2 x 34.6 x 139.6 mm Product Weight:0.222 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1756SC-IF8H is a ControlLogix analog input module designed for accurate acquisition of voltage and current signals from industrial field devices. It converts analog signals into digital data for PLC processing, enabling precise monitoring and control in complex automation systems.
Technical Specifications
Parameter
Specification
Model
1756SC-IF8H
Signal Type
Analog current / voltage input
Channels
8
Isolation
Channel-to-channel isolation
Mounting Type
ControlLogix chassis module
Configuration
Software configurable
Dimensions
145.2 mm × 34.6 mm × 139.6 mm
Weight
0.222 kg
Recommended Related Models
Model
Product Name
1756-IF8
ControlLogix Analog Input Module
1756-IRT8I
ControlLogix Temperature Input Module
1756-IF16
ControlLogix High-Density Analog Input Module
1756-IF4XOF2F
Mixed Analog Input/Output Module
Popular Related Models
Model
Product Name
1756-L83E
ControlLogix 5580 Processor Module
1756-EN2T
ControlLogix Ethernet Communication Module
1756-IB16
ControlLogix Digital Input Module
1756-OB16
ControlLogix Digital Output Module
Applications
• Process industry analog signal acquisition for chemical and petrochemical plants
• Oil & gas monitoring systems for pressure, flow, and level signal collection
• Power generation auxiliary instrumentation signal input systems
• Water and wastewater treatment process monitoring and feedback loops
• OEM machinery requiring multi-channel analog data acquisition
• High-precision process control systems with mixed voltage/current signals
• Industrial automation systems integrating field sensors into ControlLogix platforms
• Continuous manufacturing lines requiring stable analog feedback control
Key Advantages
• Supports both analog current and voltage input signals for flexible field integration
• High-resolution signal acquisition improves process control accuracy
• Strong electrical isolation enhances stability in harsh industrial environments
• Multi-channel design enables compact and efficient system architecture
• Fast signal conversion suitable for real-time monitoring applications
• Stable performance under electromagnetic interference and long cable runs
• Seamless integration with ControlLogix PLC systems for scalable automation
• Built-in diagnostics improve maintenance efficiency and fault detection
Technical FAQs
Q1: Can the module accept both current and voltage inputs?
Yes, it supports both analog current and voltage signal types.
Q2: Is it suitable for noisy industrial environments?
Yes, it is designed with strong isolation and EMI resistance.
Q3: Does it support real-time data acquisition?
Yes, it provides fast and stable signal conversion for real-time control.
Q4: Can each channel be configured independently?
Yes, channels can be configured separately based on signal requirements.
Q5: Is it compatible with ControlLogix systems?
Yes, it is fully integrated with the ControlLogix architecture.
Q6: Does it require external signal conditioning?
In most applications, no additional conditioning is required.
Q7: How does it handle signal noise?
It uses filtering and isolation to reduce noise interference.
Q8: Is it suitable for closed-loop control systems?
Yes, it is commonly used in feedback control applications.
Q9: Can it be used in large-scale systems?
Yes, it supports scalable multi-module configurations.
Q10: What ensures measurement stability?
Internal calibration and isolation design maintain stable readings.
