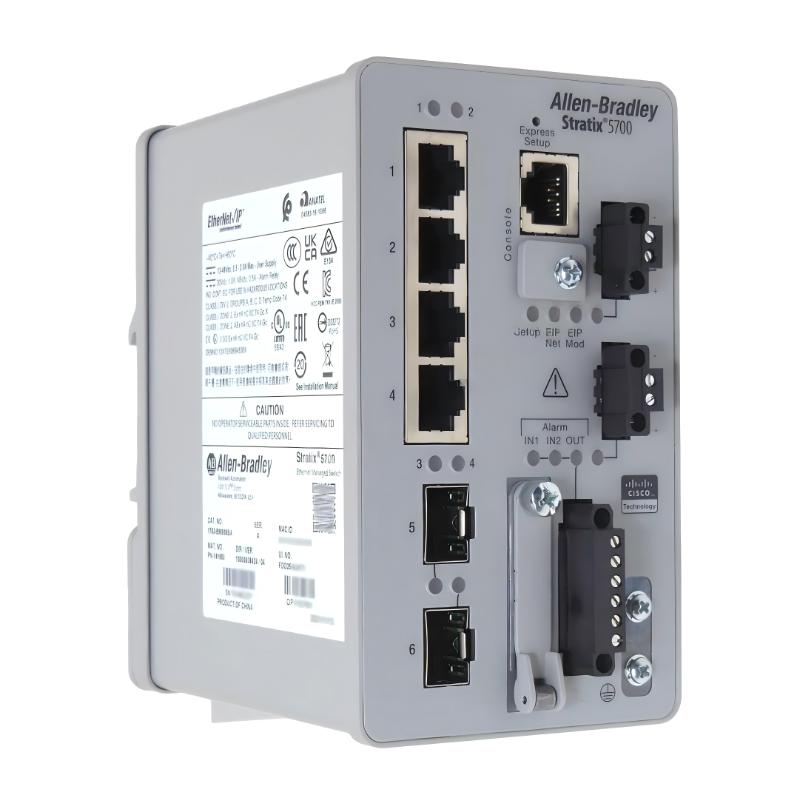

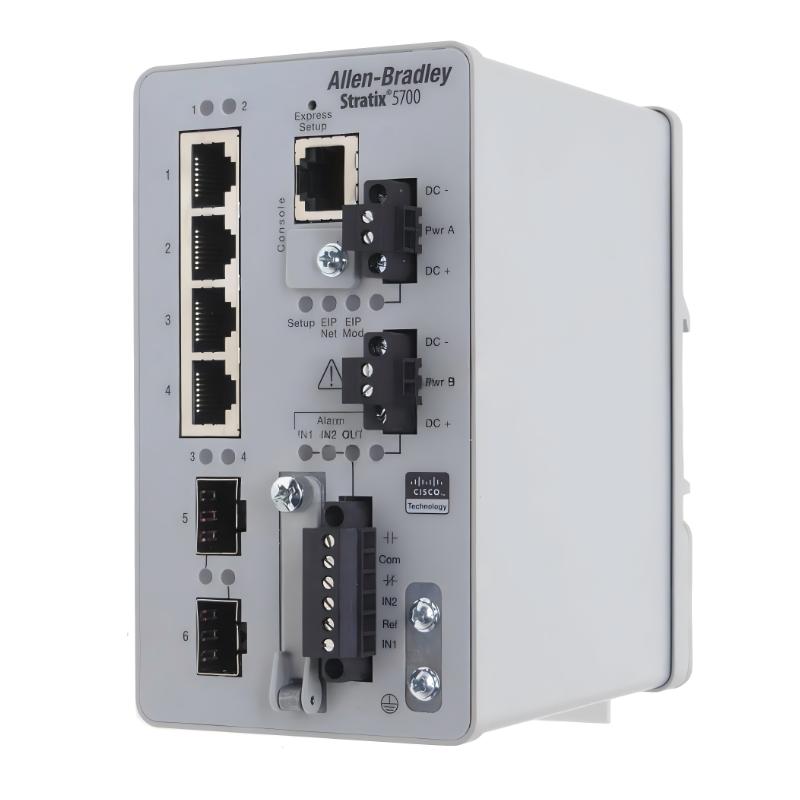

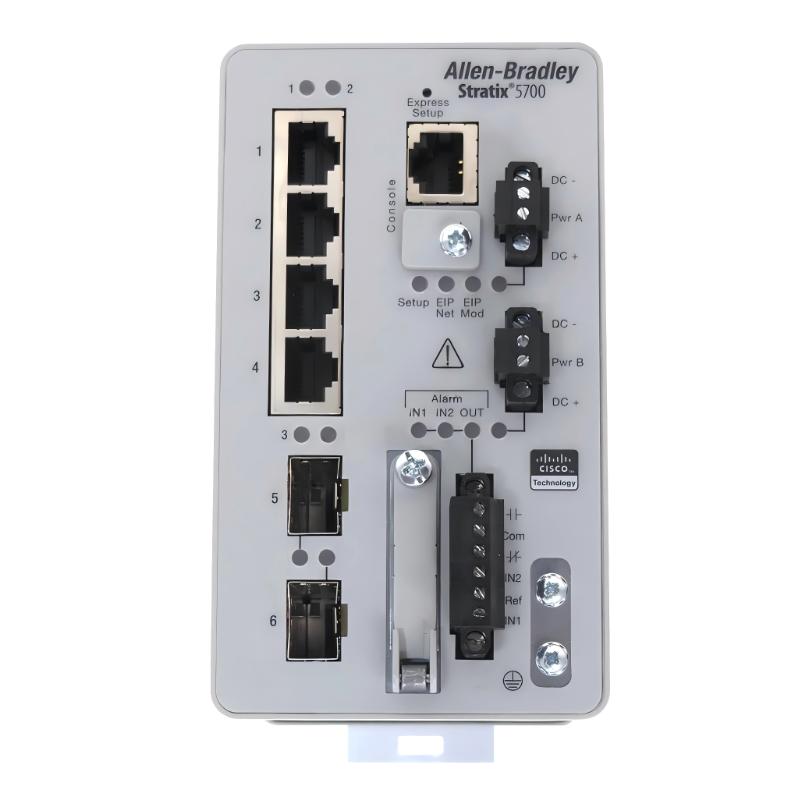

Allen Bradley 1783-BMS06SA Stratix 5700 Ethernet Managed Switch
Allen Bradley 1783-BMS06SA Stratix 5700 Ethernet Managed Switch
0.0
Points
Brand:Allen Bradley PLC Item No.:1783-BMS06SA Product Origin:USA Product Dimensions:129.5 x 74.8 x 116.7 mm Product Weight:1.11 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1783-BMS06SA Stratix 5700 is an industrial managed Ethernet switch designed to provide reliable and secure communication between automation devices. It enables stable data exchange across PLCs, I/O modules, HMIs, and industrial controllers within Ethernet-based control systems.
Technical Specifications
Parameter
Specification
Model
1783-BMS06SA
Product Type
Managed Ethernet Switch
Ports
6 Ethernet ports
Network Type
Industrial Ethernet
Management
Layer 2 managed switching
Installation
DIN rail / cabinet mounting
Dimensions
129.5 mm × 74.8 mm × 116.7 mm
Weight
1.11 kg
Recommended Related Models
Model
Product Name
1783-BMS06T
Stratix 5700 6-Port Managed Ethernet Switch
1783-BMS10C
Stratix 5700 10-Port Managed Industrial Switch
1783-BMS20C
Stratix 5700 20-Port High-Density Switch
1783-EMS08T
Stratix 5400 Ethernet Managed Switch
Popular Related Models
Model
Product Name
1783-US05T
Stratix 2500 Unmanaged Industrial Switch
1783-BMS04T
Stratix 5700 Compact Managed Switch
1783-BMS10S
Stratix 5700 Secure Managed Switch
1783-ETAP
Ethernet TAP Network Diagnostic Module
Applications
• Industrial Ethernet communication networks for ControlLogix and CompactLogix systems
• Factory automation systems requiring managed network segmentation and traffic control
• Machine-level networking for OEM equipment integration
• Process control systems in oil & gas, chemical, and power plants
• High-speed production lines requiring stable deterministic communication
• SCADA and DCS network infrastructure in distributed industrial sites
• Remote I/O and industrial device connectivity in harsh environments
• Plant-wide Ethernet backbone for segmented automation architecture
Key Advantages
• Managed Ethernet switching enables advanced traffic prioritization and network control
• Designed for industrial environments with strong vibration and EMI resistance
• Supports redundant network topologies for higher system reliability
• Optimized for seamless integration with Rockwell Automation ControlLogix systems
• Enhanced cybersecurity and port-level control for industrial network protection
• Compact design suitable for cabinet-level installation in tight enclosures
• Stable communication performance under high network load conditions
• Easy configuration and diagnostics through industrial management tools
Technical FAQs
Q1: Is this switch suitable for real-time industrial control networks?
Yes, it is designed for deterministic communication in automation systems.
Q2: Does it support managed network features?
Yes, it provides full Layer 2 managed switching capabilities.
Q3: Can it be used in redundant network architectures?
Yes, it supports industrial redundancy configurations.
Q4: Is it compatible with ControlLogix systems?
Yes, it is commonly used with Allen-Bradley ControlLogix platforms.
Q5: Does it support VLAN configuration?
Yes, VLAN segmentation is supported for network isolation.
Q6: Can it operate in harsh environments?
Yes, it is designed for industrial temperature and EMI conditions.
Q7: Does it support remote diagnostics?
Yes, network monitoring and diagnostics are supported.
Q8: Is configuration complex for OEM applications?
No, it supports simplified setup for industrial deployment.
Q9: Can it handle high network traffic loads?
Yes, it is optimized for high-throughput industrial communication.
Q10: Is it suitable for machine-level networking?
Yes, it is widely used for machine-to-controller communication.
