Brand:Emerson Module Item No.:VE4003S1 Product Origin:USA Product Dimensions:107 x 41 x 105 mm Product Weight:0.181 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

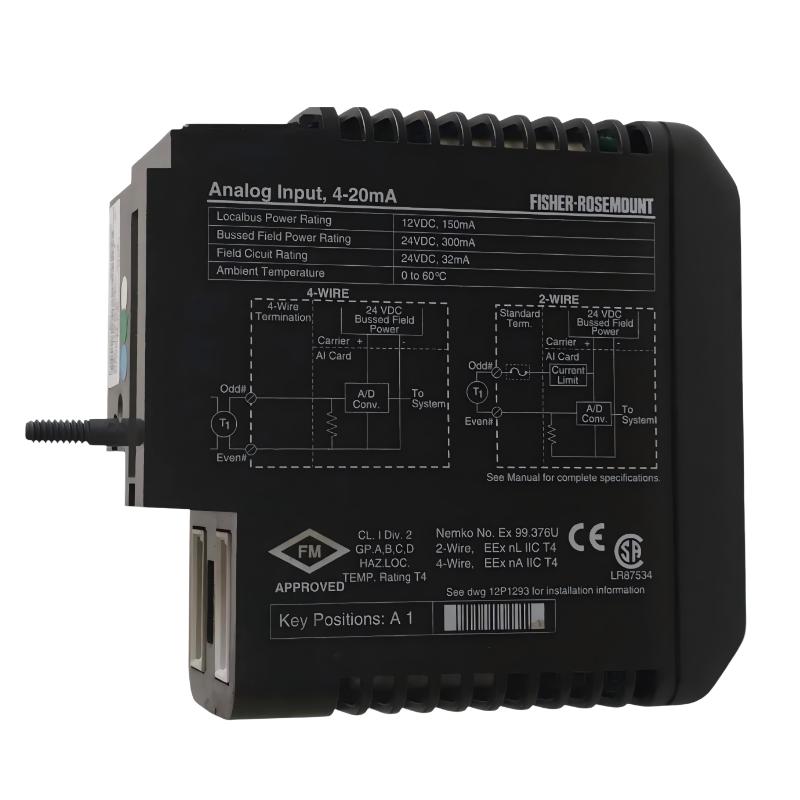

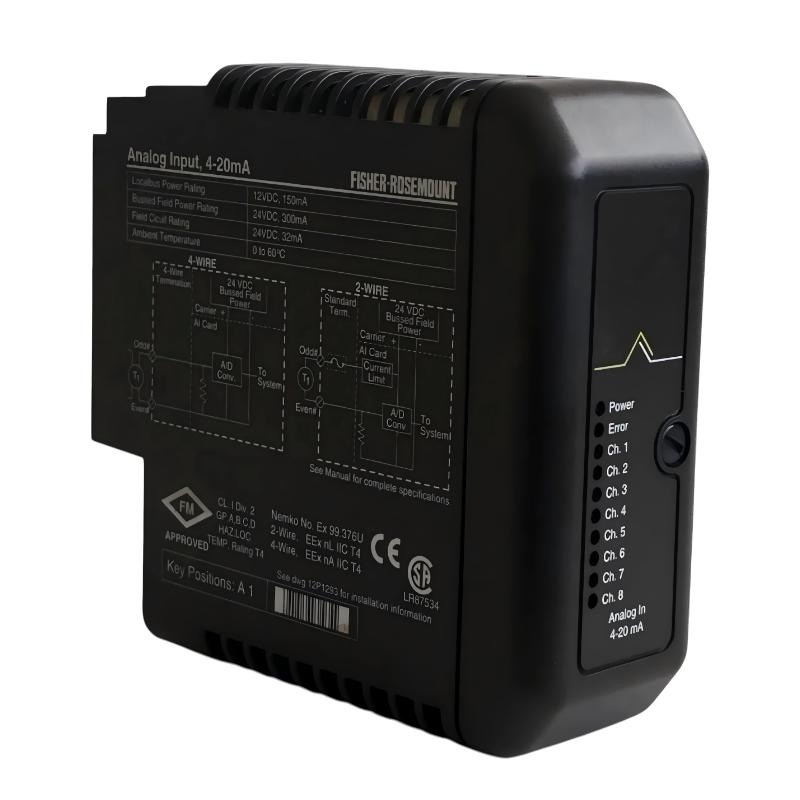

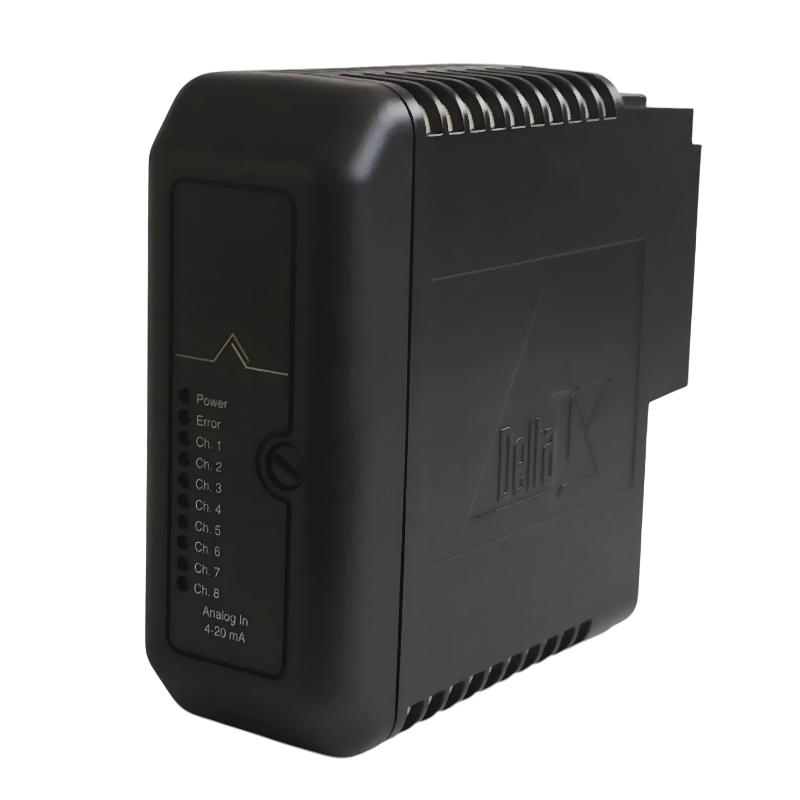

The Emerson VE4003S1 Analog Input Module is part of the DeltaV M-series I/O family, designed for high-reliability acquisition of analog process signals in industrial automation systems.
It is widely used in DeltaV distributed control architectures to interface field instrumentation with control logic systems. By supporting industry-standard 4–20 mA signals and HART communication, it enables both accurate process measurement and advanced device diagnostics. The module is engineered for continuous operation in demanding environments such as oil refineries, chemical plants, and power generation facilities.
Technical Specifications
Parameter
Description
Model
Emerson VE4003S1
Product Type
Analog Input Module
System Platform
Emerson DeltaV
Signal Type
4–20 mA / HART (typical DeltaV AI architecture)
Function
Process signal acquisition
Channel Configuration
Multi-channel (series-dependent)
Resolution
High-resolution industrial ADC (DeltaV class)
Isolation
Channel/system isolation design
Communication
DeltaV backplane digital communication
Installation Type
DeltaV I/O carrier mounted
Operating Environment
Industrial automation systems
Dimensions
107 × 41 × 105 mm
Weight
0.181 kg
Recommended Related Models
Model
Product Name
Emerson VE4003S2B1
DeltaV Analog Input Module
Emerson VE4033S2B1
Redundant Analog Input Module
Emerson VE4003S2B3
8-Channel HART Analog Input Module
Emerson KJ3222X1-BA1
DeltaV I/O Interface Module
Popular Related Models
Model
Product Name
Emerson KJ3002X1-BA1
DeltaV Controller Module
Emerson VE4002S1T2
Digital Input Module
Emerson VE4005S2B1
Analog Output Module
Emerson CHARM I/O Series
Distributed I/O System Modules
Applications
• DeltaV distributed control system analog signal acquisition
Used to collect continuous process signals such as pressure, temperature, flow, and level from field transmitters into Emerson DeltaV control systems.
• Industrial process automation in oil, gas, and petrochemical plants
Provides reliable input processing for critical process variables in continuous and batch operations.
• Power generation monitoring and turbine auxiliary systems
Enables stable acquisition of analog instrumentation data for plant control and protection systems.
• Chemical and refining process control loops
Supports accurate measurement of 4–20 mA and HART-enabled field devices in high-demand environments.
• Water treatment and utility automation systems
Used for monitoring flow, pressure, and chemical dosing systems in distributed infrastructure.
• Smart field device integration with HART communication
Allows both process variables and device diagnostics to be transmitted over a single signal loop.
Key Advantages
• High-density analog input architecture for process control systems
Supports multiple field signals within a compact DeltaV I/O framework.
• 4–20 mA signal compatibility with HART communication support
Enables both analog measurement and digital diagnostics from smart field instruments.
• High resolution signal conversion for stable process monitoring
Ensures accurate and repeatable measurement in critical automation applications.
• Channel isolation design for improved signal integrity
Reduces interference and improves measurement reliability in noisy industrial environments.
• Seamless integration with Emerson DeltaV control platforms
Designed specifically for native compatibility with DeltaV system architecture.
• Industrial-grade robustness for harsh operating conditions
Maintains stable performance under temperature variation, vibration, and electrical noise.
Technical FAQs
Q1: What is the main function of this module?
A: It acquires analog process signals from field devices and transmits them to a DeltaV control system.
Q2: What type of signals does it support?
A: It supports 4–20 mA analog signals and HART digital communication.
Q3: How many channels does it typically support?
A: Depending on configuration, VE4003 series modules commonly support multiple analog input channels (e.g., 8–16 channel variants).
Q4: What industries use this module?
A: Oil and gas, chemical processing, power generation, and water treatment industries.
Q5: Does it support smart transmitters?
A: Yes, it supports HART-enabled field devices for diagnostics and configuration.
Q6: Is it suitable for safety-critical applications?
A: Yes, it is designed for reliable operation in industrial control systems.
Q7: Can it detect sensor faults?
A: Yes, it supports diagnostics such as open circuit and signal fault detection.
Q8: Does it require external signal conditioning?
A: No, signal conditioning is integrated within the module architecture.
Q9: Is it hot-swappable in DeltaV systems?
A: Yes, many DeltaV I/O modules support online replacement depending on system configuration.
Q10: What systems is it compatible with?
A: It is designed for Emerson DeltaV distributed control system platforms.
