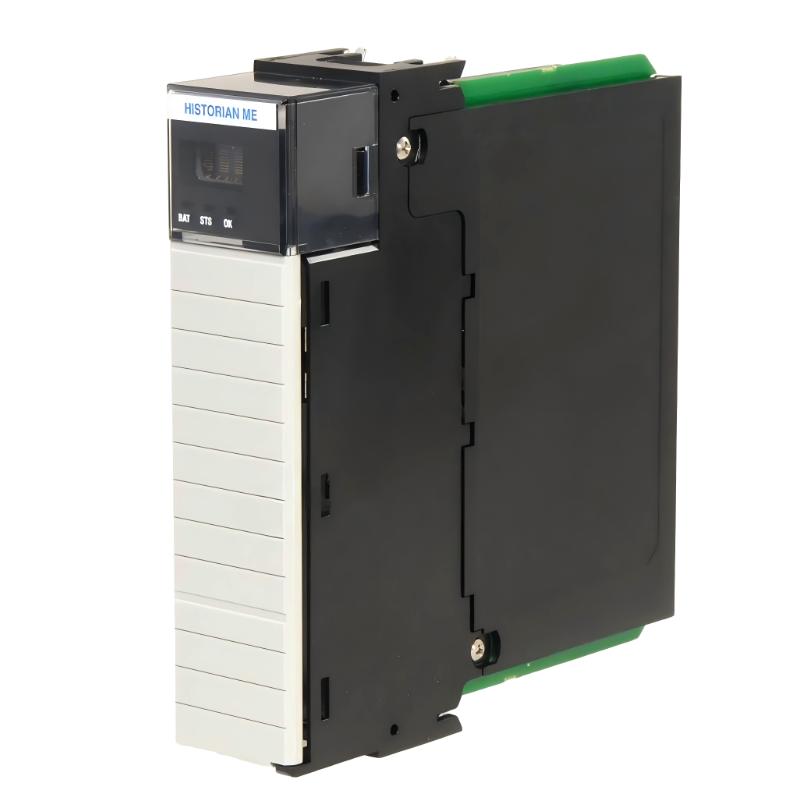

Allen Bradley 1756-HIST1G ControlLogix FactoryTalk Historian Machine Module

Applications

• ControlLogix system data acquisition and historical storage
 Used to collect, store, and manage process data directly within a ControlLogix chassis without external historian servers.

• Industrial performance monitoring and trend analysis
 Enables long-term recording of machine states, process variables, alarms, and events for operational optimization.

• Manufacturing production data logging
 Supports continuous tracking of production line performance, equipment utilization, and cycle efficiency.

• Energy and utility system monitoring
 Records electrical and process data for power distribution, water treatment, and utility infrastructure systems.

• Process troubleshooting and root cause analysis
 Provides historical data access for diagnosing faults and improving system reliability.

• Standalone or edge-level historian applications
 Acts as a local data historian embedded in the automation system for fast data access and reduced network dependency.

Key Advantages

• Embedded historian directly in ControlLogix architecture
 Eliminates the need for separate historian servers by integrating data storage within the PLC chassis.

• Real-time data capture with time-stamped accuracy
 Ensures precise recording of process variables and system events for analysis.

• Compact single-slot module design
 Fits directly into a ControlLogix rack without additional hardware complexity.

• Industrial-grade data reliability
 Designed for continuous operation in demanding manufacturing and process environments.

• Ethernet-based data communication
 Enables integration with FactoryTalk and external monitoring systems.

• Supports local data retention for critical processes
 Reduces dependency on external networks or centralized historian infrastructure.

Technical FAQs

Q1: What is the main function of this module?
A: It records and stores industrial process data directly inside a ControlLogix system.

Q2: Is this a controller module?
A: No, it is a historian module designed for data logging and analysis.

Q3: What system does it work with?
A: It is designed for Allen-Bradley ControlLogix PLC systems.

Q4: What type of data can it store?
A: It can store process variables, alarms, events, and machine performance data.

Q5: Does it require an external server?
A: No, it can operate as an embedded historian within the PLC chassis.

Q6: How does it communicate with the system?
A: It uses the ControlLogix backplane and Ethernet communication.

Q7: Can it be used for long-term storage?
A: Yes, it is designed for industrial historical data retention and trend analysis.

Q8: Is it suitable for real-time monitoring?
A: Yes, it captures and logs real-time process data with time stamps.

Q9: Is it still widely used in modern systems?
A: It is more common in legacy or specialized ControlLogix installations.

Q10: What industries typically use it?
A: Manufacturing, energy, utilities, and process automation industries.
