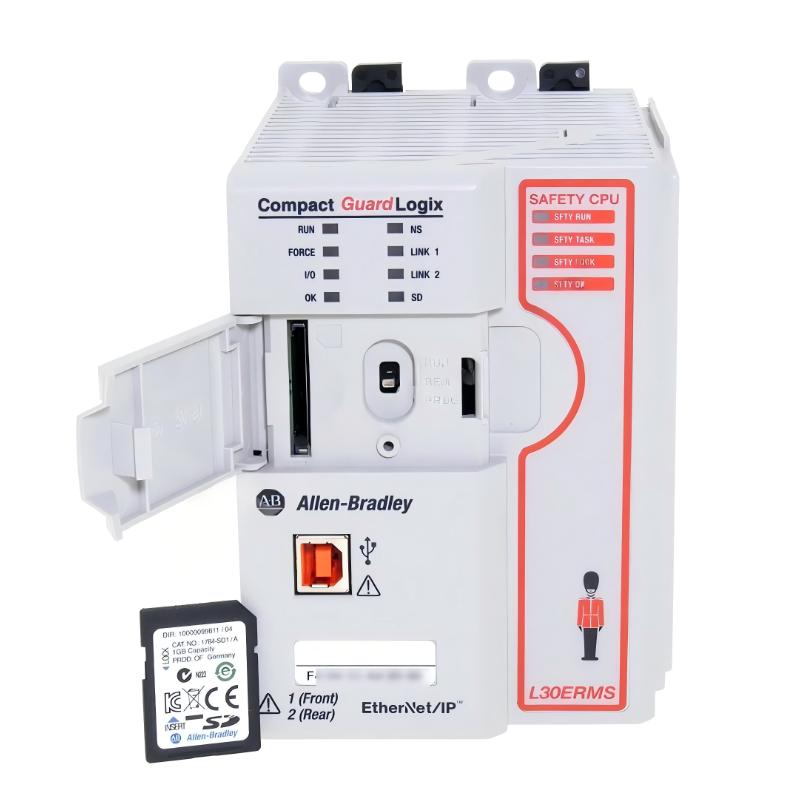

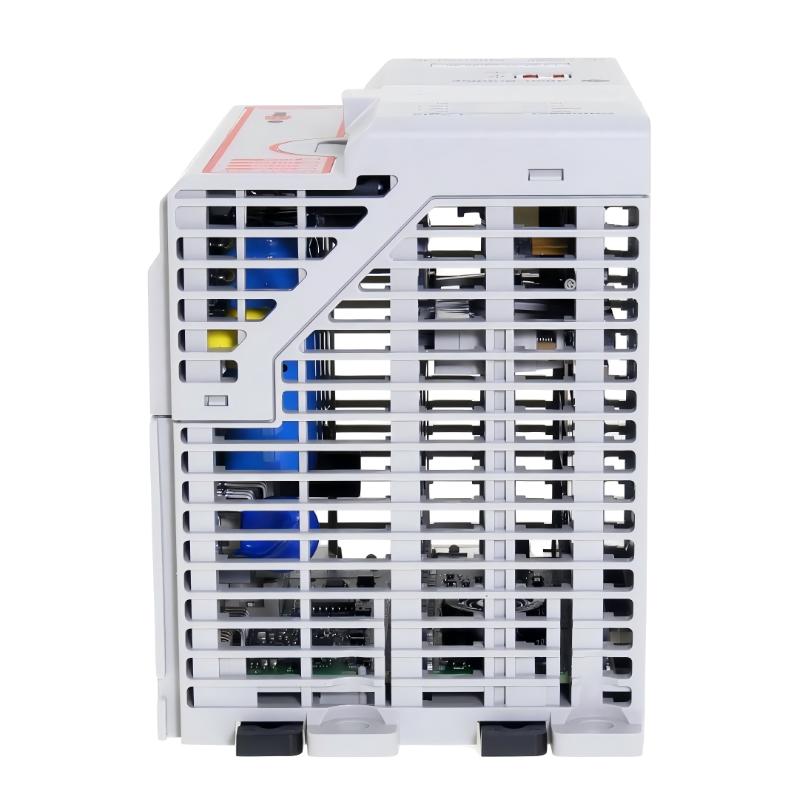

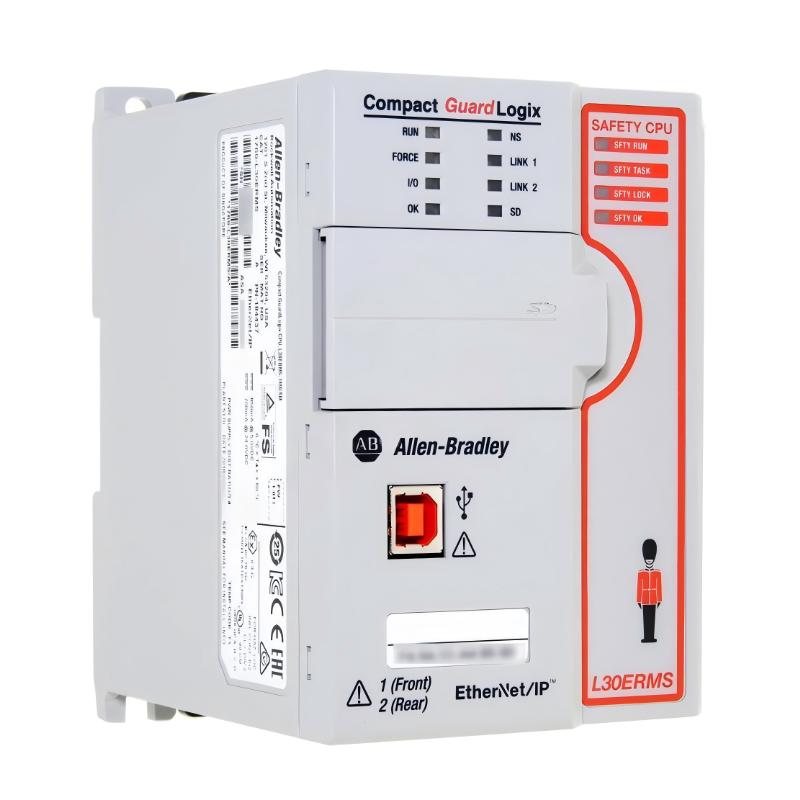

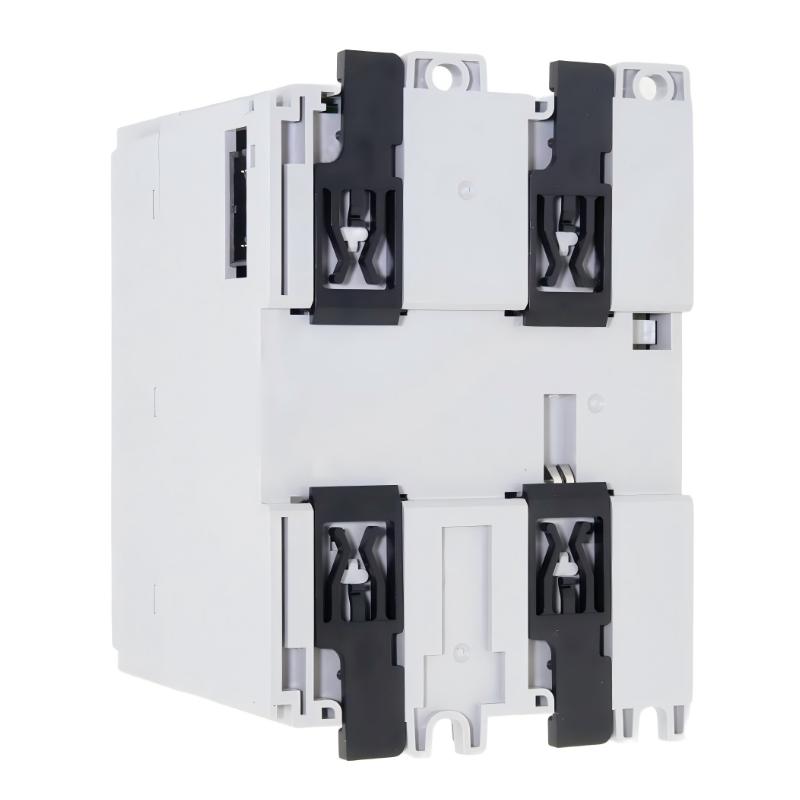

Allen Bradley 1769-L30ERMS Compact GuardLogix 5370 Ethernet Controller
Allen Bradley 1769-L30ERMS Compact GuardLogix 5370 Ethernet Controller
0.0
Points
Brand:Allen Bradley PLC Item No.:1769-L30ERMS Product Origin:USA Product Dimensions:132 x 89 x 114 mm Product Weight:0.54 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1769-L30ERMS Compact GuardLogix 5370 Ethernet Controller is a safety-integrated programmable automation controller designed for industrial machinery and automation systems requiring both standard and safety control functions.
It belongs to the CompactLogix 5370 L3 family and combines high-performance control, integrated safety, and Ethernet/IP networking in a compact form factor. This makes it suitable for machine builders and industrial users who need reliable motion control, safety functionality, and scalable system integration within a single controller platform.
• Safety-rated machine automation systems
Used in machinery requiring integrated safety functions such as emergency stop, safety interlocks, and safe motion control.
• CompactLogix-based industrial control systems
Acts as the main controller for small to medium-scale automation architectures with distributed I/O expansion.
• High-speed manufacturing and assembly lines
Provides deterministic control for packaging, material handling, and automated production systems.
• Integrated safety and standard control applications
Combines standard PLC logic with safety-rated control within a single controller platform.
• Industrial networking and Ethernet/IP communication systems
Manages multiple networked devices including drives, I/O modules, and HMI/SCADA systems.
• Motion control and coordinated axis systems
Supports CIP motion for synchronized multi-axis machine operations in industrial automation.
Key Advantages
• Integrated safety controller architecture
Combines standard control and safety functions in a single Compact GuardLogix platform.
• Dual Ethernet ports with Device Level Ring (DLR) support
Enables resilient industrial networking and redundant communication paths.
• High-performance CompactLogix 5370 L3 processing
Supports fast execution of machine logic and motion control tasks.
• Scalable I/O and network expansion capability
Supports multiple 1769 I/O modules and up to 16 Ethernet/IP nodes.
• Built-in motion control support
Enables coordinated control of up to several motion axes using CIP Motion technology.
• Industrial-grade reliability for continuous operation
Designed for demanding manufacturing environments requiring high system uptime.
Technical FAQs
Q1: What is the main function of this controller?
A: It is a safety-integrated PLC that controls industrial machines and automation systems.
Q2: Does it include safety functions?
A: Yes, it is a GuardLogix controller with integrated safety-rated processing.
Q3: What communication interfaces does it support?
A: It includes dual Ethernet/IP ports with Device Level Ring support and USB programming access.
Q4: What type of systems is it used in?
A: It is used in CompactLogix 5370-based automation systems for machinery and process control.
Q5: Can it handle motion control?
A: Yes, it supports CIP Motion for coordinated multi-axis control.
Q6: How many I/O modules can it support?
A: It supports multiple 1769 I/O expansion modules depending on system configuration.
Q7: Is it suitable for safety-critical applications?
A: Yes, it is designed for applications requiring SIL-rated safety functions.
Q8: Does it support network redundancy?
A: Yes, DLR (Device Level Ring) provides network resilience.
Q9: What programming environment is used?
A: It is programmed using Studio 5000 Logix Designer.
Q10: Is this controller still widely used?
A: It is still common in installed base systems, though newer CompactLogix platforms exist for new designs.
