Brand:Allen Bradley PLC Item No.:MPL-B580J-SJ22AA Product Origin:USA Product Dimensions:Frame Size: 165 mm Product Weight:25.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

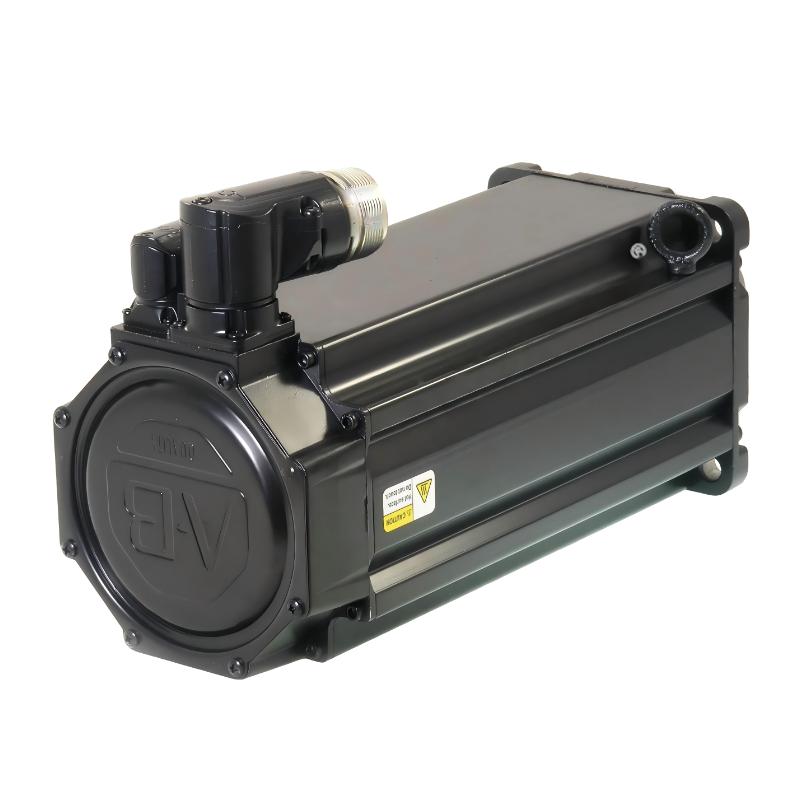

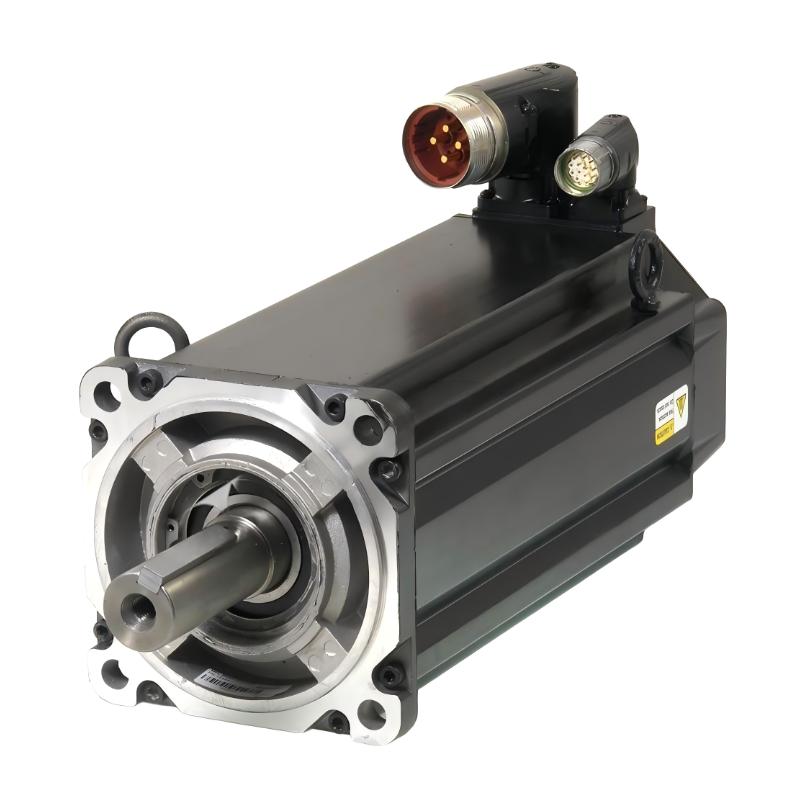

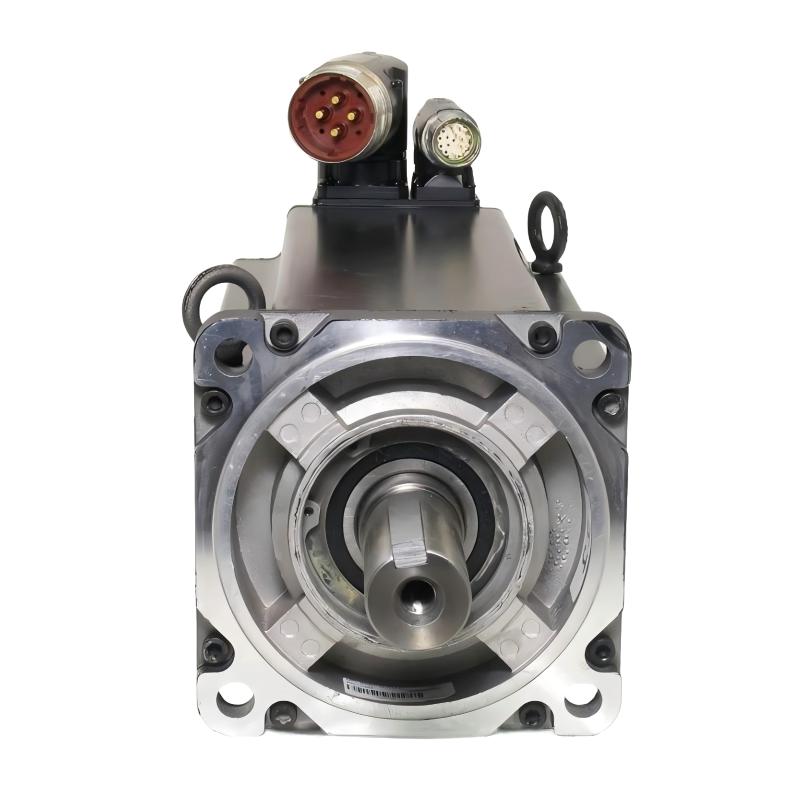

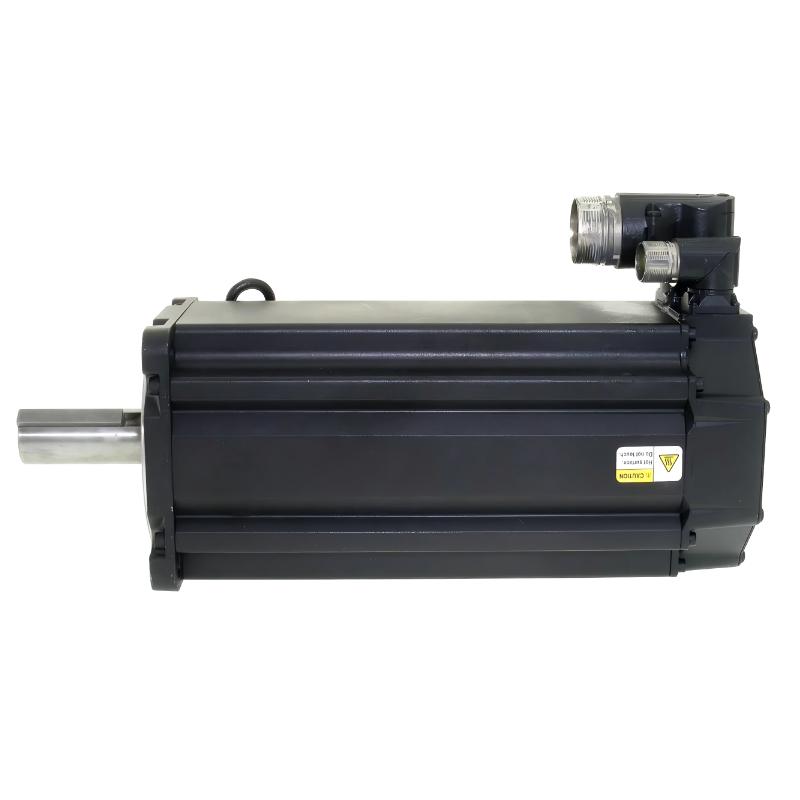

The Allen-Bradley MPL-B580J-SJ22AA is a high-performance low inertia servo motor designed for demanding industrial motion control applications. It is part of the MPL MP-Series and is widely used in systems requiring fast dynamic response and precise positioning.
With a 165 mm frame size and optimized rotor design, it delivers strong torque density and high-speed capability while maintaining smooth and stable operation. It is typically paired with Allen-Bradley Kinetix servo drives in advanced automation systems where accuracy, repeatability, and motion synchronization are critical.
Technical Specifications
Parameter
Description
Model
Allen-Bradley MPL-B580J-SJ22AA
Product Type
AC Servo Motor
Series
MPL MP-Series
Frame Size
165 mm
Voltage Class
460 VAC
Rated Speed
3750 RPM
Motor Type
Permanent magnet rotary servo motor
Inertia
Low inertia design
Feedback
High-resolution encoder
Brake
Not included
Shaft
Keyed shaft
Connector Type
Rotatable bayonet connector
Mounting
IEC metric flange
Operating Environment
Industrial automation systems
Weight
25.4 kg
Recommended Related Models
Model
Product Name
Allen-Bradley MPL-B540J-SJ22AA
MPL Series Servo Motor (smaller torque variant)
Allen-Bradley MPL-B680J-SJ22AA
MPL Series Servo Motor (higher torque variant)
Allen-Bradley MPL-A420P-SJ72AA
Compact MPL Servo Motor Series
Allen-Bradley VPL-B1003M-PK12AA
VP Low Inertia Servo Motor Series
Popular Related Models
Model
Product Name
Allen-Bradley Kinetix 5700 Drive
Multi-axis Servo Drive System
Allen-Bradley Kinetix 5500 Drive
Compact Servo Drive Platform
Allen-Bradley 2198-H040-ERS
Kinetix Servo Drive Module
Allen-Bradley MPL-B430P-SJ72AA
MPL Servo Motor Variant
Applications
• High-performance motion control systems
Used in precision positioning systems requiring fast acceleration, deceleration, and accurate torque control in automated machinery.
• Packaging and material handling equipment
Supports synchronized motion in conveyors, labeling systems, and pick-and-place automation lines.
• Robotics and multi-axis servo systems
Enables coordinated motion control in robotic arms and automated assembly platforms.
• CNC and precision manufacturing machines
Provides stable torque and high-speed response for cutting, forming, and machining applications.
• Automotive production automation
Commonly used in welding, assembly, and component handling systems requiring repeatable motion accuracy.
• High-dynamic industrial equipment
Suitable for applications where rapid direction changes and low inertia response are critical.
Key Advantages
• Low inertia rotor design
Delivers fast dynamic response and high acceleration capability for precision motion control.
• High power density in compact frame
Provides strong torque output relative to its 165 mm frame size.
• Integrated high-resolution encoder feedback
Enables accurate position and speed control in closed-loop servo systems.
• Industrial-grade rugged construction
Designed for continuous operation in demanding automation environments.
• Compatible with Kinetix servo drive systems
Integrates seamlessly with Allen-Bradley Kinetix motion platforms for synchronized control.
• Stable high-speed performance
Supports reliable operation at high rotational speeds in precision applications.
Technical FAQs
Q1: What is the main function of this servo motor?
A: It converts electrical energy into precise mechanical motion for industrial automation systems.
Q2: What type of drive is it compatible with?
A: It is designed for use with Allen-Bradley Kinetix servo drive platforms.
Q3: What feedback system does it use?
A: It uses a high-resolution encoder for closed-loop position and speed control.
Q4: Is it suitable for continuous operation?
A: Yes, it is designed for industrial continuous-duty motion applications.
Q5: What industries commonly use this motor?
A: Packaging, robotics, automotive manufacturing, and CNC machinery industries.
Q6: Does it support high-speed operation?
A: Yes, it is designed for high-speed rotational performance in servo systems.
Q7: Is it a low inertia motor?
A: Yes, it is part of the MPL low inertia servo motor family.
Q8: Can it be used in multi-axis systems?
A: Yes, it is commonly used in synchronized multi-axis motion control systems.
Q9: Does it include a brake?
A: No, this model does not include an integrated holding brake.
Q10: What makes it suitable for precision automation?
A: Its combination of low inertia, high-resolution feedback, and stable torque control enables precise motion performance.
