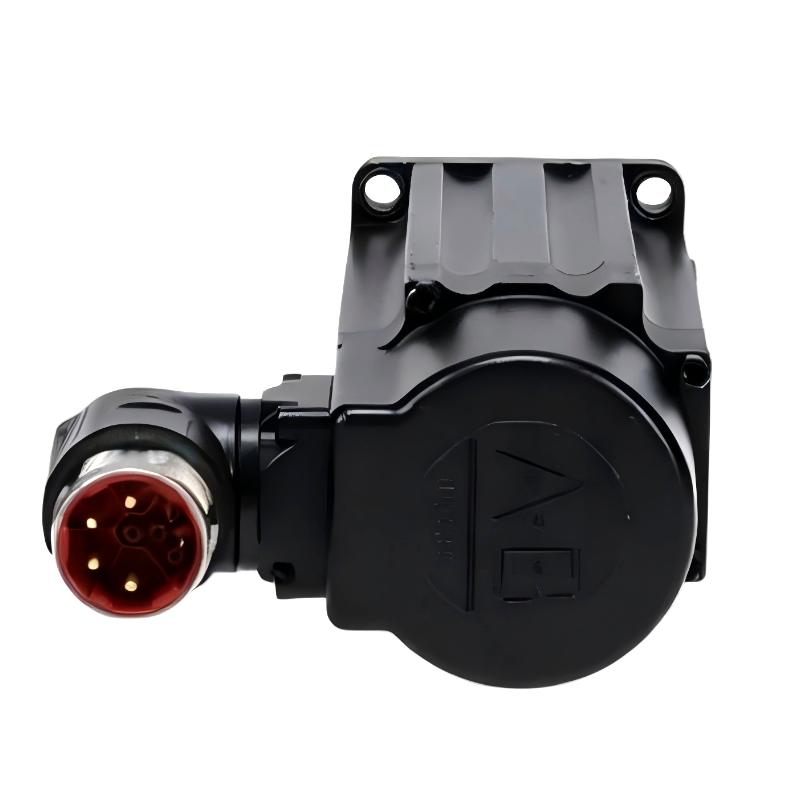

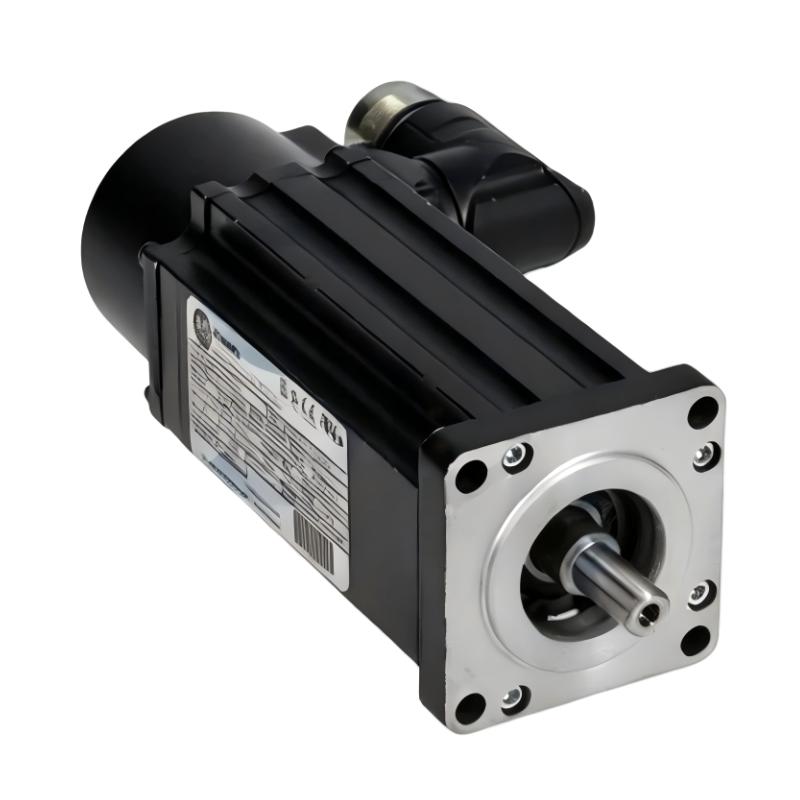

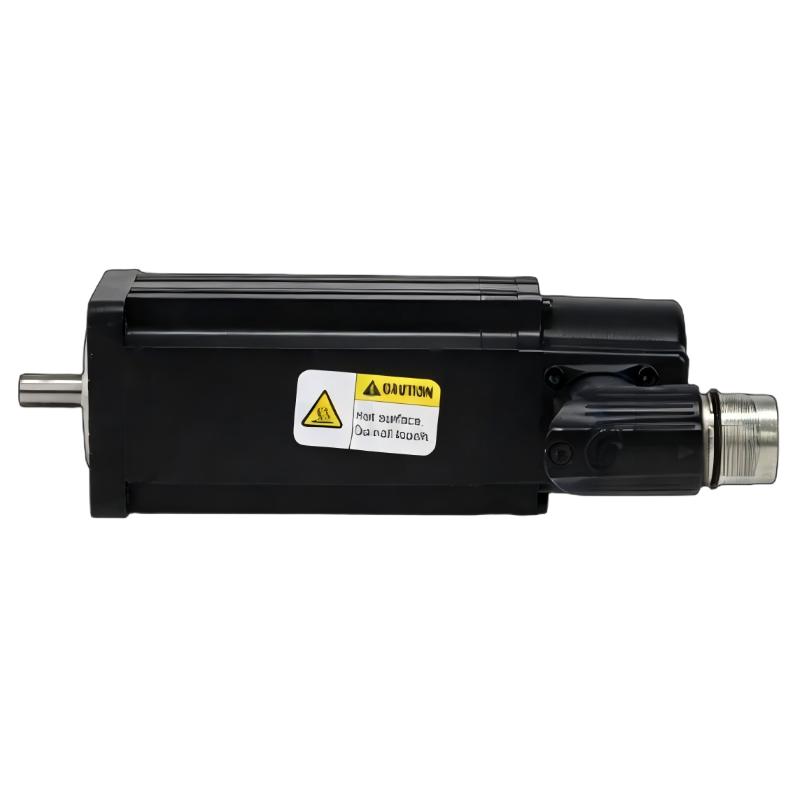

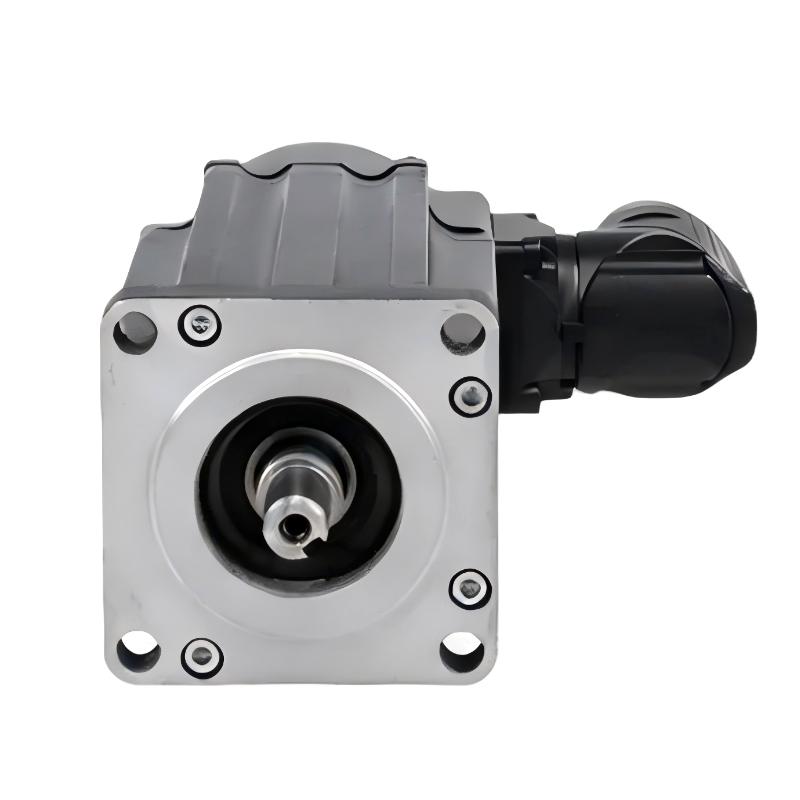

Allen Bradley VPL-B0632T-CJ12AA Servo Motor

Applications

• High-speed packaging and assembly automation
 Used in fast cycle machines such as pick-and-place systems, labeling units, and automated packaging lines requiring rapid acceleration and precise positioning.

• Robotics and multi-axis motion systems
 Provides synchronized motion control in robotic arms and coordinated servo systems used in industrial automation cells.

• CNC and precision manufacturing equipment
 Supports accurate positioning and stable torque output for machining, cutting, and forming applications.

• Material handling and conveyor systems
 Enables controlled motion for indexing conveyors, sorting systems, and automated transport equipment.

• Automotive and electronics production lines
 Used in assembly, testing, and positioning processes where repeatability and dynamic response are critical.

• General industrial motion control systems
 Suitable for compact servo applications requiring high power density and fast response.

Key Advantages

• Low inertia rotor design for fast response
 Delivers quick acceleration and deceleration for high-speed automation cycles.

• High-resolution encoder feedback system
 Enables precise closed-loop position and speed control for demanding motion applications.

• Compact 63 mm frame size with strong torque density
 Provides efficient performance in space-constrained machine designs.

• Designed for Kinetix servo drive integration
 Optimized for seamless operation with Allen-Bradley Kinetix 5500 and 5700 drive platforms.

• High-speed capability up to industrial servo range
 Supports demanding dynamic motion profiles in continuous operation environments.

• Industrial-grade reliability for 24/7 duty cycles
 Built for consistent performance in harsh manufacturing conditions.

Technical FAQs

Q1: What type of motor is this?
A: It is a low-inertia AC synchronous servo motor used in industrial motion control systems.

Q2: What drives is it compatible with?
A: It is designed for Allen-Bradley Kinetix servo drive platforms such as Kinetix 5500 and 5700.

Q3: Does it include a brake?
A: No, this model does not include a holding brake.

Q4: What feedback system does it use?
A: It uses an 18-bit single-turn high-resolution encoder for precise positioning.

Q5: What makes it “low inertia”?
A: The rotor is designed to reduce inertia, allowing faster acceleration and more responsive control.

Q6: What voltage class does it operate on?
A: It is designed for approximately 400–480 VAC industrial servo drive systems.

Q7: Is it suitable for high-speed applications?
A: Yes, it supports high-speed operation with strong dynamic performance.

Q8: What industries commonly use it?
A: Packaging, robotics, automotive manufacturing, electronics assembly, and CNC machinery.

Q9: Is it suitable for continuous operation?
A: Yes, it is designed for industrial continuous-duty motion applications.

Q10: Can it be used in multi-axis systems?
A: Yes, it is commonly used in synchronized multi-axis servo configurations.
