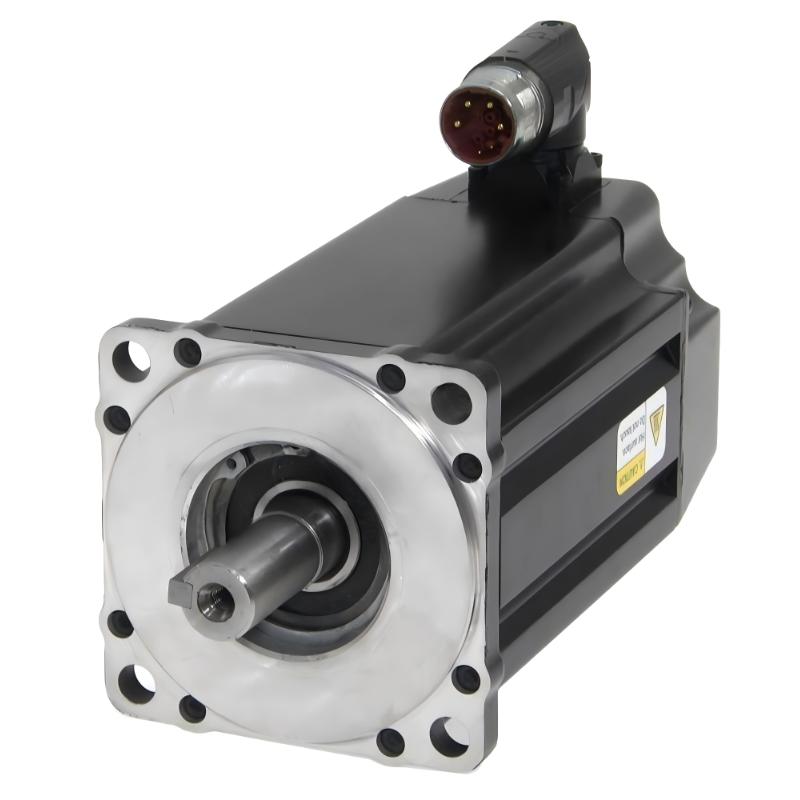

Allen Bradley VPL-B1153F-PJ12AA Servo Motor

Applications

• High-speed packaging and assembly systems
 Used in fast-cycle automation such as pick-and-place units, labeling machines, and synchronized conveyor systems requiring rapid response and precise positioning.

• Robotics and multi-axis motion control
 Enables coordinated servo movement in robotic arms, gantry systems, and automated production cells.

• CNC and precision manufacturing equipment
 Provides stable torque and accurate positioning for machining, cutting, drilling, and forming applications.

• Automotive production automation
 Commonly applied in welding, assembly, inspection, and part-handling systems with high repeatability requirements.

• Electronics and semiconductor handling systems
 Supports delicate, high-precision motion in assembly and inspection equipment.

• General industrial servo automation
 Suitable for compact to mid-size machines requiring high dynamic response and stable closed-loop control.

Key Advantages

• Low inertia rotor design for fast dynamic response
 Delivers rapid acceleration and deceleration, improving cycle time in high-speed automation systems.

• High-resolution encoder feedback system
 Provides precise position and velocity control for demanding motion applications.

• 115 mm frame size with high torque density
 Offers strong performance in a compact industrial footprint.

• Designed for Kinetix servo drive integration
 Engineered to work seamlessly with Allen-Bradley Kinetix motion control platforms.

• Stable performance in continuous-duty operation
 Built for 24/7 industrial environments requiring consistent motion accuracy.

• Robust industrial construction
 Resistant to vibration, thermal stress, and demanding manufacturing conditions.

Technical FAQs

Q1: What is the main function of this servo motor?
A: It converts electrical energy into precise rotary motion for industrial automation systems.

Q2: What drive systems is it compatible with?
A: It is designed for Allen-Bradley Kinetix servo drive platforms.

Q3: What does the VPL series represent?
A: It is part of the Kinetix VP low inertia servo motor family for high-dynamic applications.

Q4: Does it include a brake?
A: No, this configuration does not include a holding brake.

Q5: What feedback device is used?
A: It uses a high-resolution digital encoder for closed-loop control.

Q6: Is it suitable for high-speed operation?
A: Yes, it is designed for high-speed servo performance up to industrial motion ranges.

Q7: What frame size does it use?
A: It uses a 115 mm bolt circle frame size.

Q8: Is it used in multi-axis systems?
A: Yes, it is commonly used in synchronized multi-axis motion control systems.

Q9: What industries commonly use it?
A: Packaging, robotics, automotive, electronics, and CNC manufacturing.

Q10: Is it still in production?
A: Yes, the VPL series is an active product family in modern motion systems.
