Brand:Epro PLC Item No.:PR6424/107-030 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

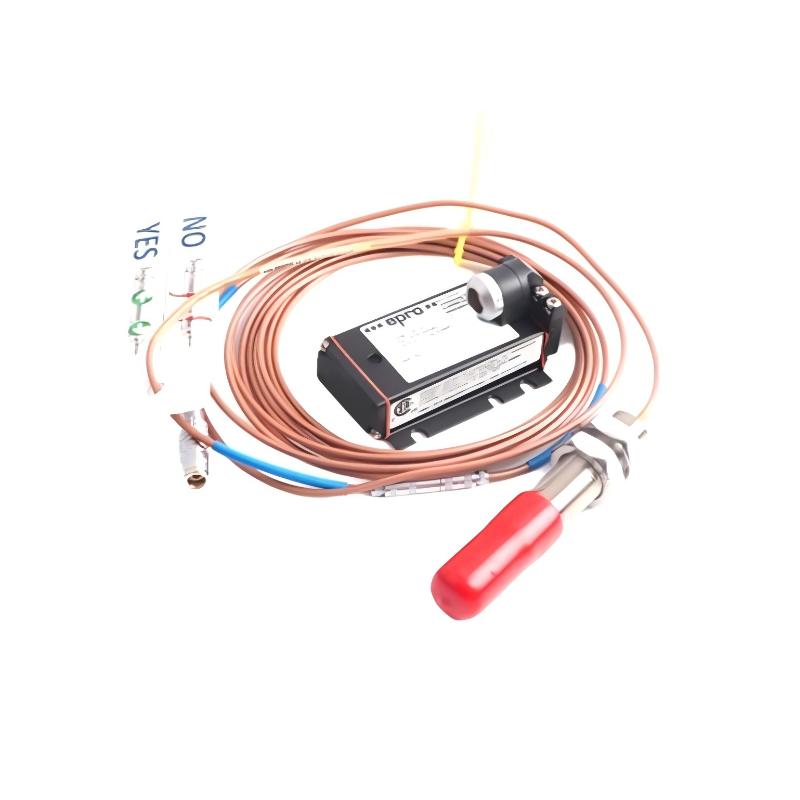

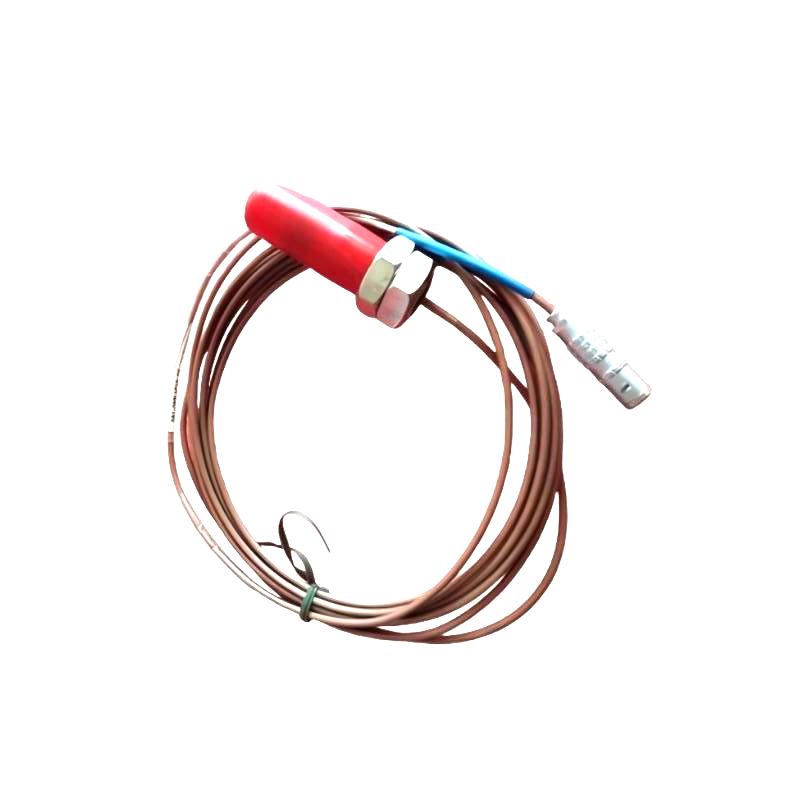

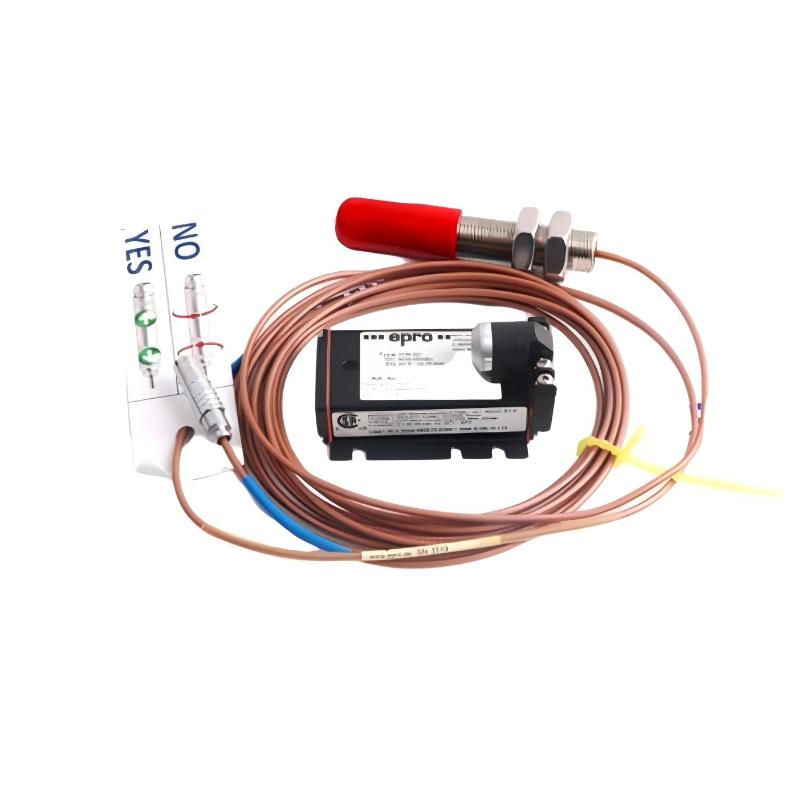

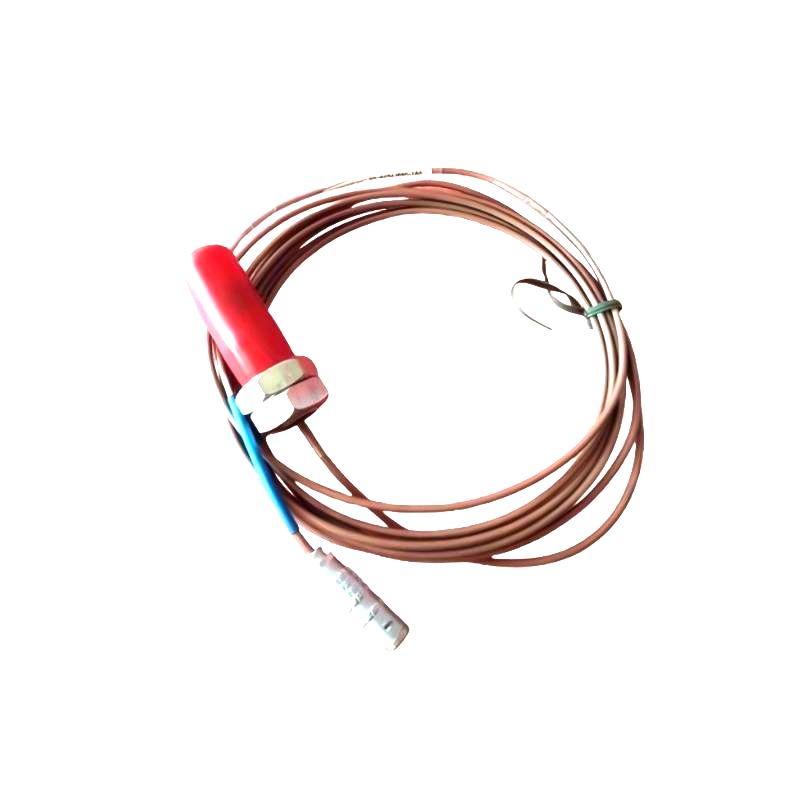

The Epro PR6424/107-030 16 mm Eddy Current Sensor is a high-performance proximity transducer designed for turbomachinery condition monitoring systems. It operates using the eddy current principle, generating a high-frequency electromagnetic field at the probe tip and detecting changes caused by conductive target movement.
When paired with a compatible signal converter, it provides precise real-time data for shaft vibration and displacement, enabling predictive maintenance and reliable machinery protection in demanding industrial environments.
Technical Specifications
Parameter
Specification
Model
PR6424/107-030
Series
Epro PR6424
Sensor Type
Eddy current proximity sensor
Probe Diameter
16 mm
Measurement Type
Non-contact displacement & vibration
Sensitivity
4 V/mm (±1.5% linearity)
Static Range
±2.0 mm
Dynamic Range
0 to 1000 µm
Nominal Air Gap
~2.7 mm
Minimum Shaft Diameter
≥80 mm
Operating Temperature
-35°C to +180°C
Material
Stainless steel sensor body
Cable Type
PTFE insulated cable
Weight
0.2 kg (0.44 lb / 0.44 lb)
Applications
The Epro PR6424/107-030 16 mm eddy current sensor is designed for high-precision, non-contact measurement of shaft vibration, displacement, and position in critical rotating machinery.
Steam turbine radial and axial vibration monitoring
Gas turbine rotor eccentricity and position measurement
Hydro turbine shaft displacement tracking
Industrial compressor condition monitoring
Pump vibration and imbalance detection
Fan and blower stability analysis
API 670 compliant machinery protection systems
Advantages
High-precision eddy current non-contact sensing technology for stable dynamic measurements
Excellent long-term stability with minimal signal drift (<0.3%)
Strong resistance to harsh industrial environments (temperature, vibration, contamination)
High linearity and repeatability for protection-grade applications
Compatible with Epro CON series signal converters (CON011 / CON021 / CON041)
Rugged stainless-steel construction for industrial durability
Suitable for continuous 24/7 monitoring of rotating equipment
Technical FAQs
Q1: What is the working principle of this sensor?
It uses eddy current induction to measure the distance between the probe tip and conductive target without contact.
Q2: What is the main application of PR6424/107-030?
It is used for shaft vibration, displacement, and eccentricity monitoring in turbomachinery.
Q3: What system does it require?
It must be used with an Epro signal converter such as CON021 or CON041.
Q4: Is it suitable for turbines?
Yes, it is widely used in steam, gas, and hydro turbine systems.
Q5: What shaft size is required?
Typically suitable for shafts ≥80 mm diameter.
Q6: Can it measure both static and dynamic movement?
Yes, it measures both shaft position (static) and vibration (dynamic).
Q7: What is the operating temperature range?
Typically -35°C to +180°C depending on configuration.
Q8: Does it require physical contact?
No, it is a fully non-contact measurement sensor.
Q9: What industries use this model?
Power generation, oil & gas, petrochemical, and heavy industry.
Q10: What makes it suitable for protection systems?
Its stability, accuracy, and compliance with industrial monitoring standards.
