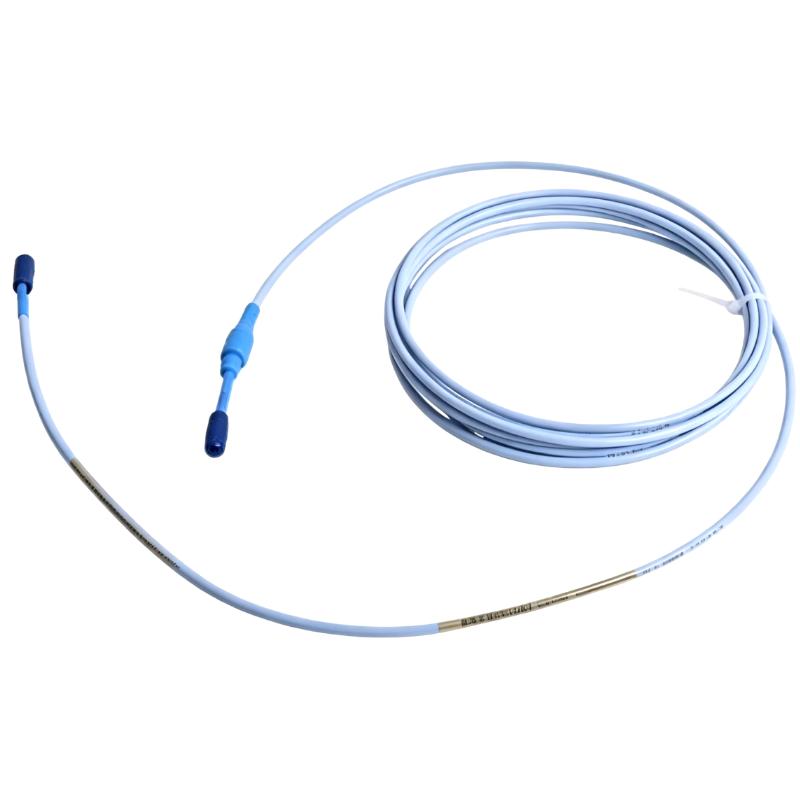

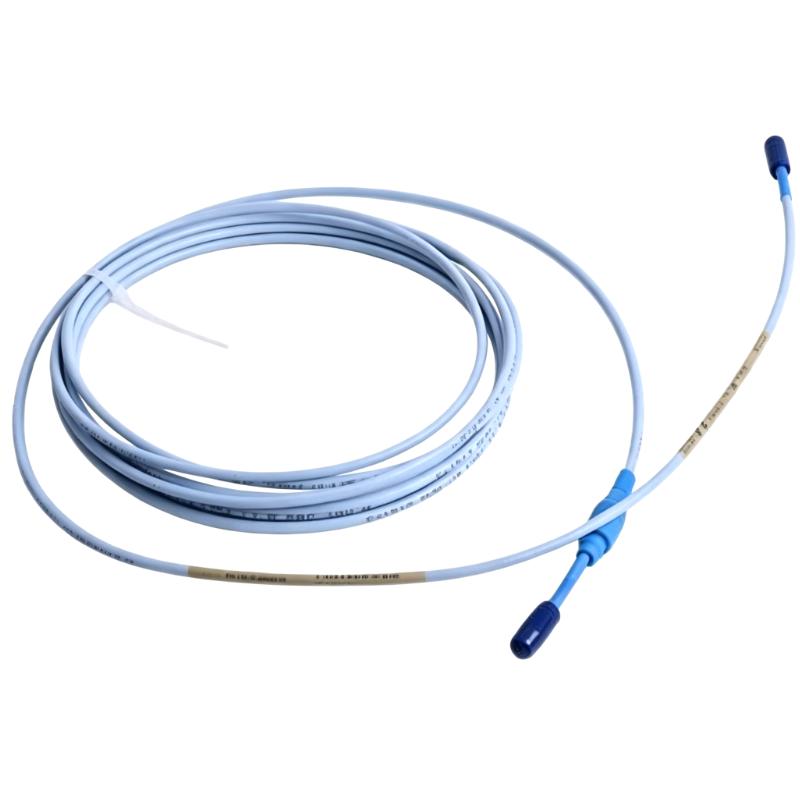

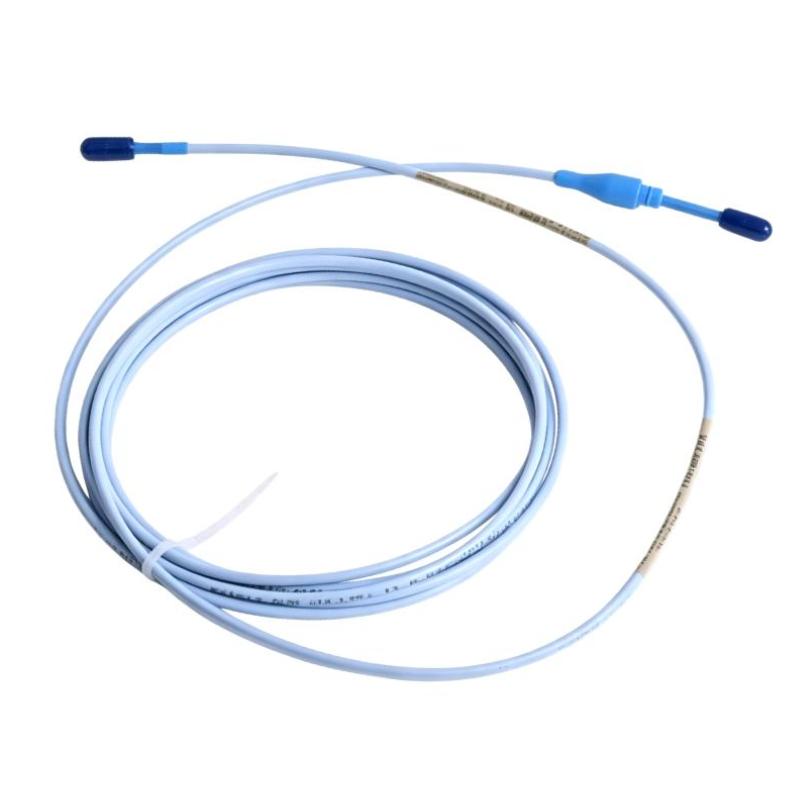

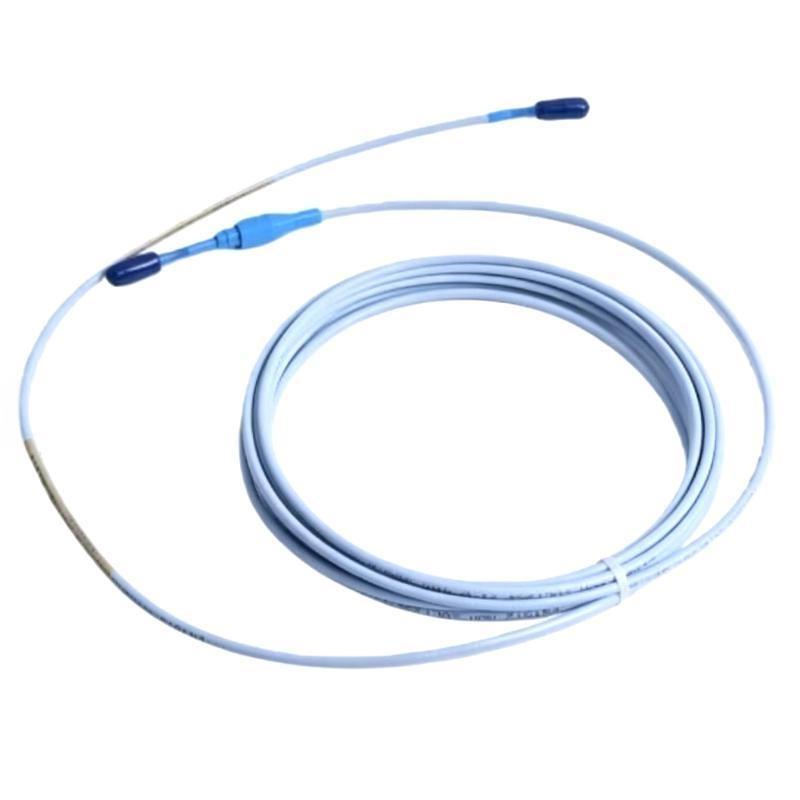

Bently Nevada 330130-040-13-05 3300 XL Standard Extension Cable

Applications

• Proximity transducer signal routing
 Used to transmit eddy current probe signals from proximity probes to Proximitor sensors in 3300 XL monitoring systems.

• Rotating machinery protection systems
 Supports turbines, compressors, pumps, and motors by ensuring stable signal communication for vibration monitoring.

• Industrial condition monitoring networks
 Enables continuous data transmission for predictive maintenance and asset health analysis.

• Power generation monitoring infrastructure
 Used in turbine supervisory systems where reliable signal integrity is required for safe operation.

• Oil & gas and petrochemical equipment monitoring
 Supports critical rotating equipment in harsh industrial environments with stable electrical connectivity.

• Distributed machinery monitoring systems
 Allows flexible installation layouts between field-mounted probes and control cabinet electronics.

Key Advantages

• Stable low-noise signal transmission
 Ensures accurate transfer of vibration and displacement signals without degradation.

• Designed for 3300 XL system compatibility
 Fully integrates with Bently Nevada 3300 XL proximity transducer architecture.

• Industrial-grade shielding construction
 Protects signal integrity against electromagnetic interference in harsh environments.

• Flexible routing for complex installations
 Supports extended separation between probe and Proximitor sensor locations.

• High durability under vibration exposure
 Maintains performance in mechanically demanding industrial environments.

• Reliable long-term operation
 Engineered for continuous service in critical machinery monitoring applications.

Technical FAQs

Q1: What is the main function of this extension cable?
A: It connects the proximity probe to the Proximitor sensor, transmitting measurement signals in the 3300 XL system.

Q2: What system is it used with?
A: It is designed specifically for the Bently Nevada 3300 XL proximity transducer system.

Q3: Is it an active electronic component?
A: No, it is a passive signal transmission cable.

Q4: What type of signal does it carry?
A: It carries eddy current displacement and vibration signals.

Q5: Does it affect system calibration?
A: No, it maintains calibrated system performance when properly installed.

Q6: Can it be used outside the 3300 XL system?
A: No, it is intended only for 3300 XL-compatible configurations.

Q7: Is shielding included?
A: Yes, it includes industrial-grade EMI shielding for noise protection.

Q8: Where is it installed?
A: Between the proximity probe and the Proximitor sensor, typically in cable trays or control cabinets.

Q9: Is it suitable for harsh environments?
A: Yes, it is designed for industrial vibration, heat, and electrical noise conditions.

Q10: Can multiple cables be combined?
A: System installation must follow specified total length and configuration limits.
