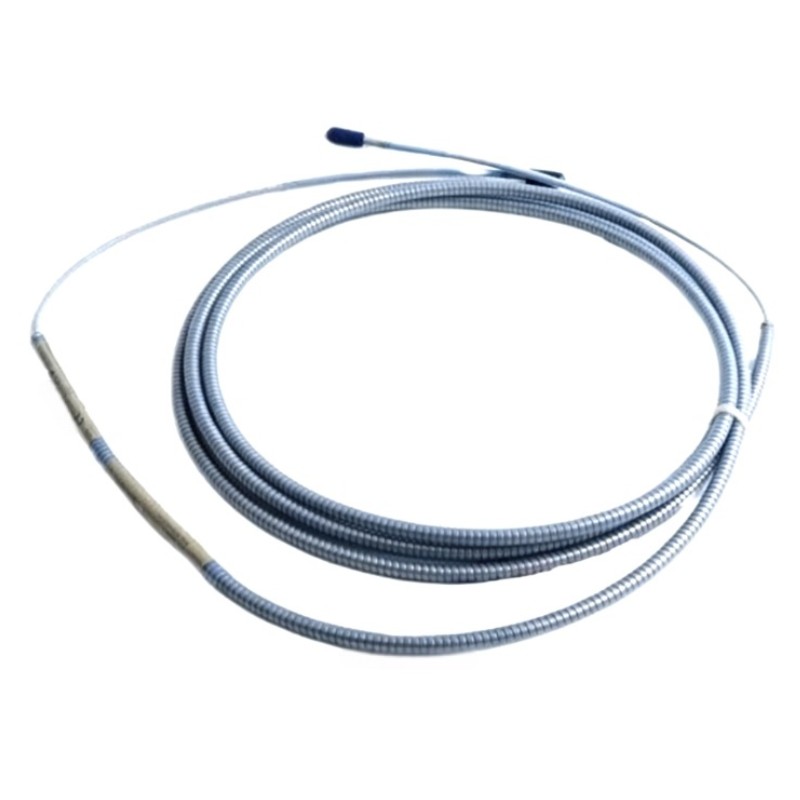

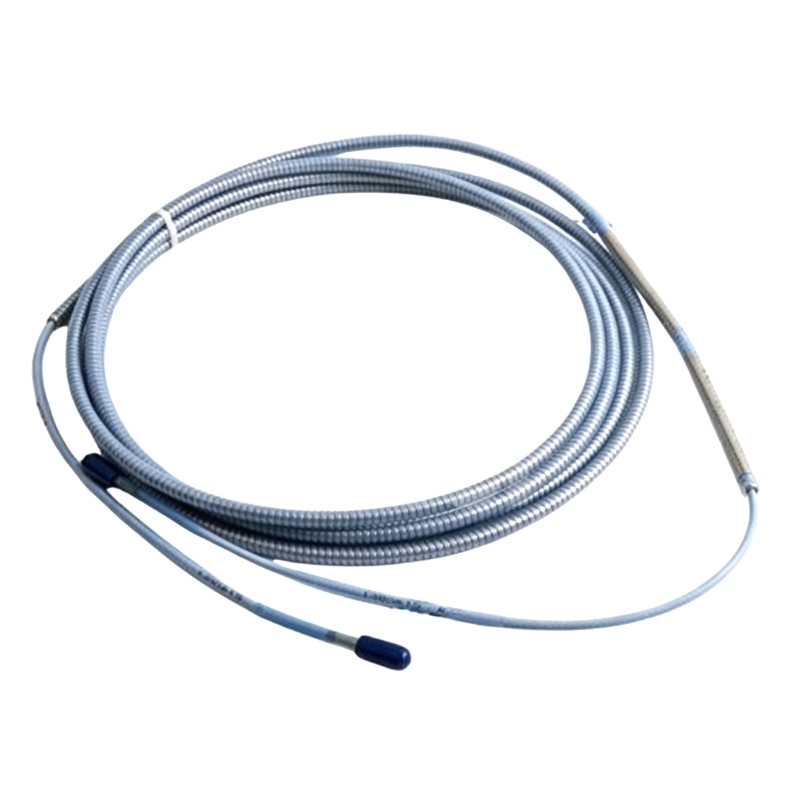

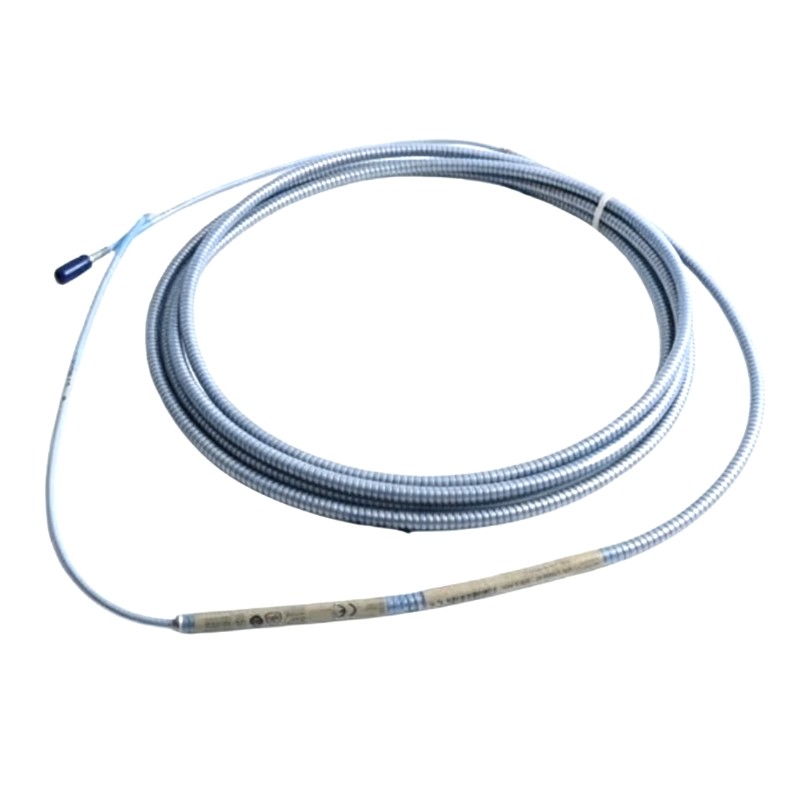

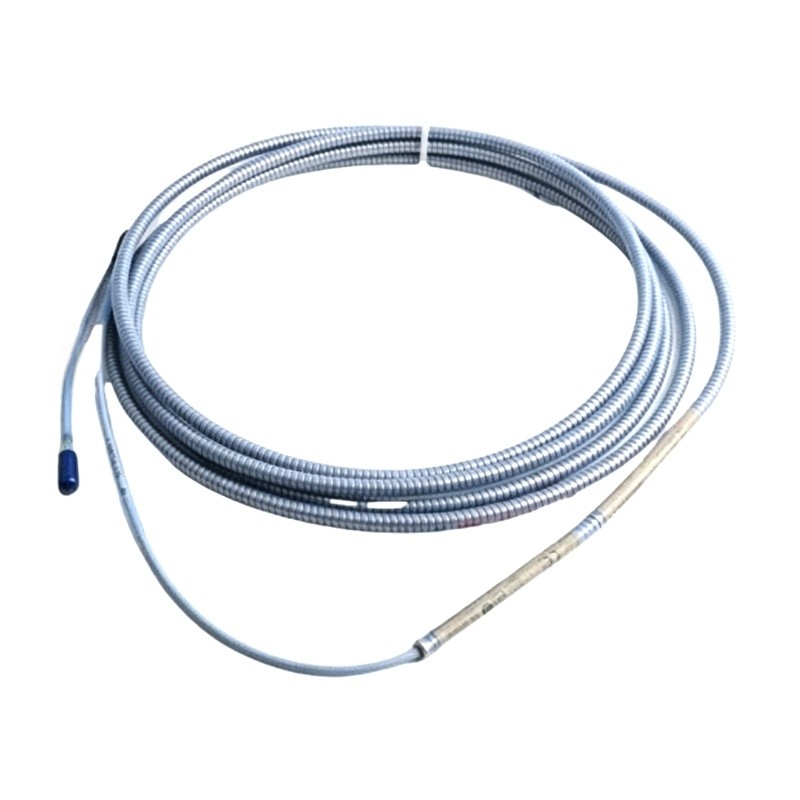

Bently Nevada 330190-040-00-00 3300 XL ETR Extension Cable

Applications

• Eddy current proximity transducer signal transmission
 Used to connect 3300 XL proximity probes to Proximitor sensors in vibration and displacement monitoring systems.

• Rotating machinery protection systems
 Supports turbines, compressors, pumps, and motors by ensuring stable signal routing for continuous condition monitoring.

• Turbomachinery monitoring applications
 Widely used in power generation and oil & gas equipment for reliable shaft vibration measurement.

• Industrial predictive maintenance systems
 Enables accurate long-distance signal transmission for machinery health analysis and diagnostics.

• Control cabinet and field wiring integration
 Provides flexible routing between field-mounted probes and cabinet-installed electronics.

• High-reliability industrial monitoring networks
 Maintains signal integrity in electrically noisy and vibration-prone environments.

Key Advantages

• Stable low-noise signal transmission
 Ensures accurate transfer of eddy current measurement signals without degradation.

• Designed for 3300 XL ETR system compatibility
 Fully matches Bently Nevada 3300 XL proximity transducer architecture.

• Industrial-grade shielding construction
 Reduces electromagnetic interference in harsh electrical environments.

• Flexible installation layout
 Supports extended separation between probe and signal conditioning modules.

• High durability under vibration exposure
 Maintains long-term performance in demanding industrial machinery environments.

• Reliable continuous monitoring support
 Designed for 24/7 operation in critical asset protection systems.

Technical FAQs

Q1: What is the function of this cable?
A: It transmits signals between the proximity probe and the Proximitor sensor in the 3300 XL system.

Q2: What system is it used with?
A: It is designed for the Bently Nevada 3300 XL ETR (Extension Transducer Relay) system architecture.

Q3: Is it an active component?
A: No, it is a passive signal transmission cable.

Q4: What type of signal does it carry?
A: It carries eddy current displacement and vibration signals.

Q5: Does it affect system calibration?
A: No, it maintains system accuracy when installed within design limits.

Q6: Can it be used with non-3300 XL systems?
A: No, it is intended only for compatible 3300 XL configurations.

Q7: Is shielding included?
A: Yes, it includes industrial EMI shielding for noise protection.

Q8: Where is it installed?
A: Between the proximity probe and the Proximitor sensor.

Q9: Is it suitable for harsh environments?
A: Yes, it is designed for industrial vibration, heat, and electrical noise conditions.

Q10: Can multiple cables be connected?
A: Installation must follow system-defined length and configuration limits.
