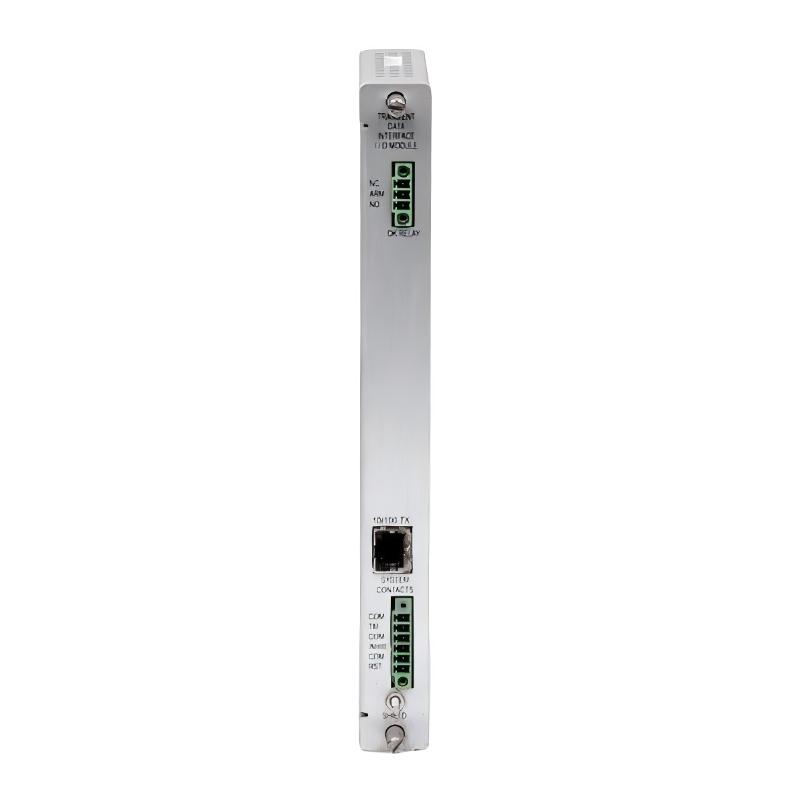

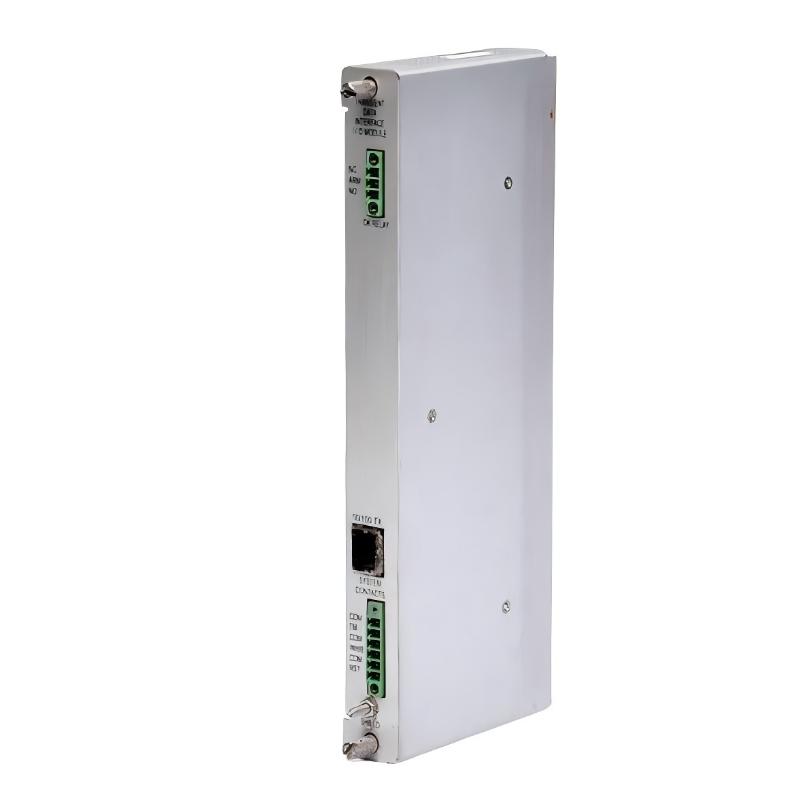

Bently Nevada 3500/22M 146031-01 Transient Data Interface I/O Module

Industrial Applications

The Bently Nevada 3500/22M Transient Data Interface I/O Module is engineered for precise acquisition and handling of transient vibration and process data. Typical applications include:

• Monitoring and capturing high-speed machinery vibrations in rotating equipment

• Integration within Bently Nevada 3500 monitoring systems for real-time diagnostics

• Process plants requiring transient data analysis for predictive maintenance

• Safety-critical systems where rapid event capture is essential

Key Advantages

• High-Speed Data Capture: Accurately records transient events for critical machinery monitoring.

• Compact and Lightweight Design: Simplifies installation in control panels and racks.

• Industrial Reliability: Built for continuous operation in harsh industrial environments.

• Seamless System Integration: Fully compatible with Bently Nevada 3500 Series monitors and I/O modules.

• Enhanced Diagnostics: Supports predictive maintenance and early fault detection strategies.

Technical FAQs

1. What is the primary function of the 3500/22M module?
   It captures transient vibration and process data for monitoring and diagnostics.

2. Which systems is this module compatible with?
   Bently Nevada 3500 Series monitoring systems.

3. What are the physical dimensions of the module?
   241.3 × 24.4 × 99.1 mm.

4. What is the weight of the module?
   0.2 kg.

5. Is it suitable for continuous industrial operation?
   Yes, engineered for reliable long-term use.

6. Where is the module typically installed?
   In control cabinets or monitoring system racks.

7. Can it capture high-speed transient events?
   Yes, designed specifically for rapid data acquisition.

8. Does it support predictive maintenance strategies?
   Yes, enabling early detection of potential machinery faults.

9. Is it engineered for industrial-grade environments?
   Yes, built to withstand challenging operational conditions.

10. Which industries commonly deploy this module?
    Power generation, oil & gas, chemical processing, and manufacturing.
