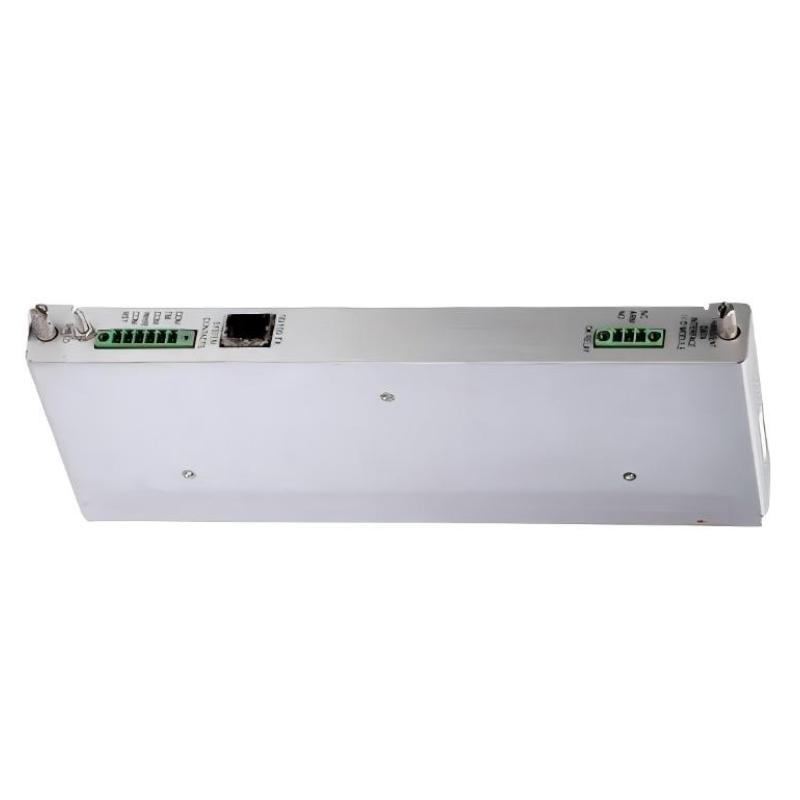

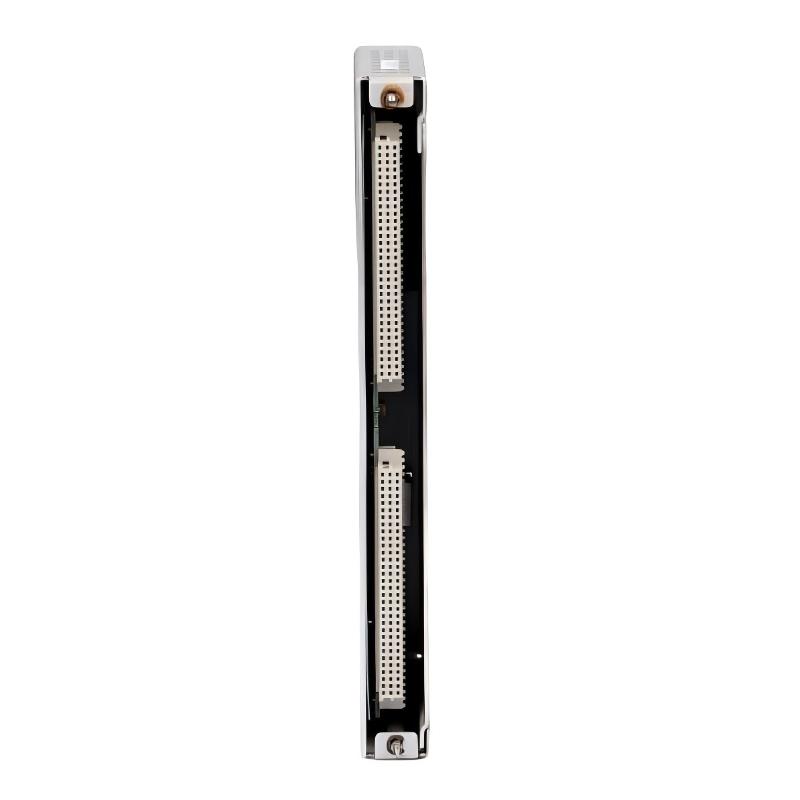

Bently Nevada 3500/22M 146031-02 100Base-FX (Fiber Optic) I/O Module

Industrial Applications

The Bently Nevada 3500/22M 146031-02 Fiber Optic I/O Module is designed to provide secure and high-speed data communication for monitoring and control systems. Typical applications include:

• Real-time data transfer in Bently Nevada 3500 Series monitoring systems

• Industrial facilities requiring fast and interference-free communication via fiber optic networks

• Safety-critical systems where reliable and isolated data transmission is essential

• Integration into predictive maintenance systems for machinery and process monitoring

Key Advantages

• High-Speed Fiber Optic Communication: Supports 100Base-FX for rapid, interference-free data transmission.

• Compact and Lightweight Design: Simplifies installation in standard control cabinets or racks.

• Industrial-Grade Reliability: Built for long-term operation in challenging industrial environments.

• Seamless Integration: Fully compatible with Bently Nevada 3500 Series modules and monitoring systems.

• Enhanced System Performance: Reduces signal degradation and ensures accurate real-time monitoring.

Technical FAQs

1. What is the primary function of the 3500/22M 146031-02 module?
   It provides high-speed fiber optic I/O communication for Bently Nevada monitoring systems.

2. Which systems is this module compatible with?
   Bently Nevada 3500 Series monitoring systems.

3. What are the physical dimensions of the module?
   241.3 × 24.4 × 99.1 mm.

4. What is the weight of the module?
   0.2 kg.

5. Does it support high-speed, interference-free data transfer?
   Yes, it uses 100Base-FX fiber optic technology.

6. Where is the module typically installed?
   In control cabinets or monitoring system racks.

7. Is it suitable for continuous industrial operation?
   Yes, engineered for long-term reliability in industrial environments.

8. Can it enhance predictive maintenance capabilities?
   Yes, reliable data transmission ensures accurate monitoring and diagnostics.

9. Is it engineered for industrial-grade conditions?
   Yes, it is built to withstand demanding operational environments.

10. Which industries commonly deploy this module?
    Power generation, oil & gas, chemical processing, and heavy manufacturing.
