Introduction

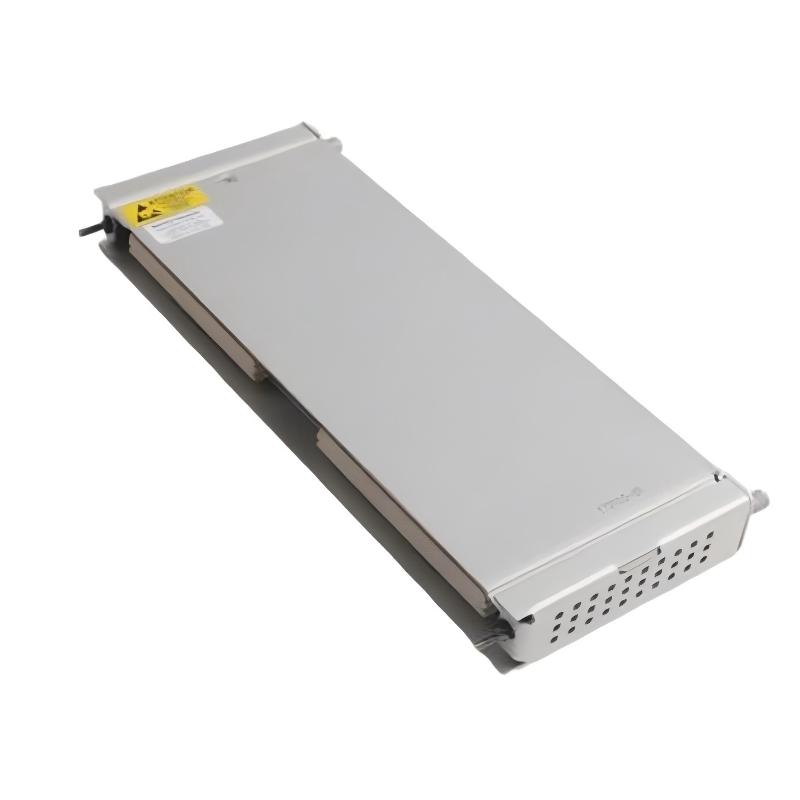

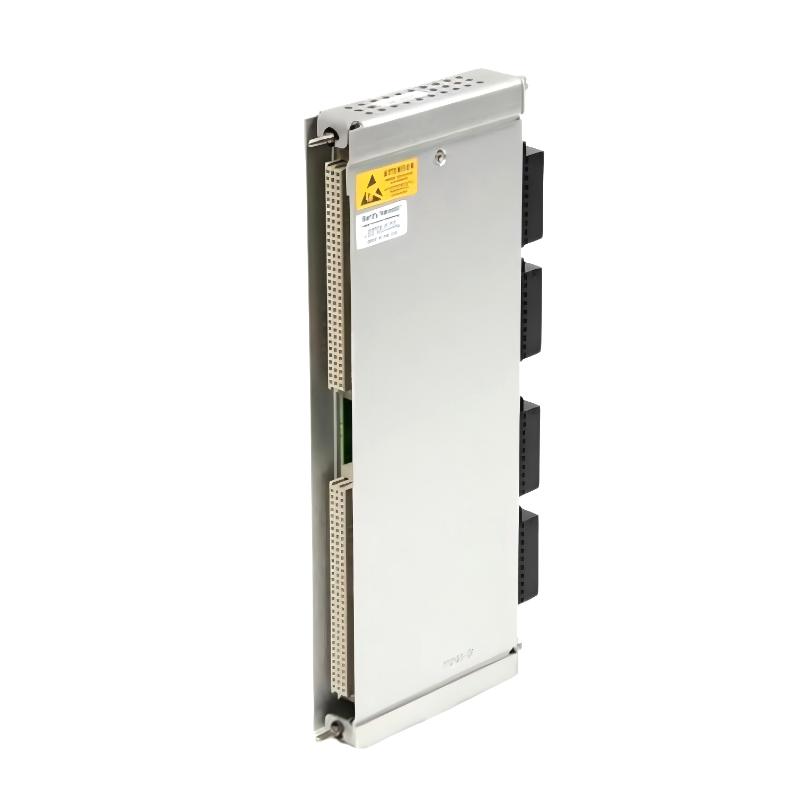

The Bently Nevada 3500/65 172103-01 RTD/Isolation Tip TC I/O Module is a robust solution for accurate temperature monitoring and signal isolation in industrial systems. Compact and lightweight, it seamlessly integrates with the 3500 Series platform, ensuring reliable thermal data acquisition, operational safety, and predictive maintenance support. Its industrial-grade design delivers durability and precision even in the most demanding environments.

Technical Specifications

Feature	Specification
Model	3500/65
Part Number	172103-01
Product Type	RTD/Isolation Tip TC I/O Module
Dimensions	241.3 × 24.4 × 99.1 mm
Weight	0.45 kg
Installation	Control cabinet / monitoring system rack
Function	Temperature measurement and input signal isolation
System Compatibility	Bently Nevada 3500 Series
Application Environment	Industrial machinery monitoring and predictive maintenance

Recommended Related Models

Bently Nevada 3500/33M – Monitor Module
Bently Nevada 3300 XL 8 mm Proximity Probe – 330101 Series
Bently Nevada 330130-045-01 – Standard Extension Cord

Popular Related Models

Bently Nevada 3500/65 172103-02 – RTD/Isolation Tip Module
Bently Nevada 3500/22M 146031-01 – Transient Data I/O Module
Bently Nevada 3500/60M – Processor Module

Industrial Applications

The Bently Nevada 3500/65 172103-01 RTD/Isolation Tip Module is engineered for precise temperature measurement and signal isolation in industrial systems. Typical applications include:

Monitoring temperature using RTD and thermocouple sensors in rotating machinery
Isolation of sensitive signals for reliable data acquisition in control systems
Integration into Bently Nevada 3500 Series monitoring systems
Safety-critical systems where temperature accuracy and signal integrity are essential

Key Advantages

Accurate Temperature Sensing: Supports RTD and thermocouple sensors for precise thermal monitoring.
Signal Isolation: Protects system integrity by isolating inputs from interference or faults.
Industrial-Grade Durability: Built to withstand harsh environments and continuous operation.
Compact Design: Facilitates easy installation in standard control cabinets or racks.
Seamless System Integration: Fully compatible with Bently Nevada 3500 Series modules for reliable monitoring.

Technical FAQs

What is the primary function of the 172103-01 module?
It provides RTD/thermocouple temperature monitoring with input isolation for Bently Nevada systems.
Which systems is this module compatible with?
Bently Nevada 3500 Series monitoring systems.
What are the physical dimensions of the module?
241.3 × 24.4 × 99.1 mm.
What is the weight of the module?
0.45 kg.
Does it support both RTD and thermocouple sensors?
Yes, providing versatile temperature monitoring options.
Is it suitable for continuous industrial operation?
Yes, engineered for reliable long-term performance.
Where is the module typically installed?
Inside control cabinets or 3500 Series monitoring system racks.
Does it provide signal isolation?
Yes, protecting sensitive inputs from interference and faults.
Is it engineered for industrial-grade conditions?
Yes, built to withstand demanding operational environments.
Which industries commonly deploy this module?
Power generation, oil & gas, chemical processing, and manufacturing.
