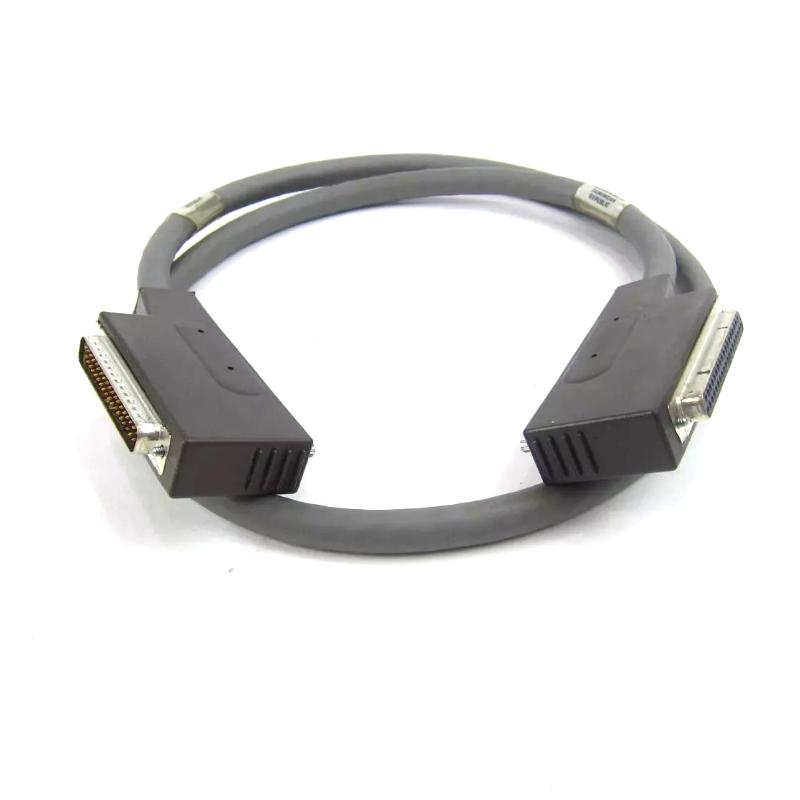

Emerson 12P0631X012 cable faults are often misdiagnosed as controller or I/O module failures. Field experience shows most issues originate from connector degradation, shielding faults, or EMI coupling, not cable failure itself.

Fault Symptoms in Field Operation

• Intermittent module communication loss
• Random I/O dropouts in DeltaV system
• Controller cannot detect remote modules
• Signal instability during motor startup
• Event logs showing bus timeout errors

In one refinery case, multiple I/O modules dropped offline during compressor startup, initially suspected as controller failure.

Field Diagnostic Approach

1. DB25 Connector Inspection

• Check screw tightness on both ends
• Inspect for oxidized or bent pins
• Verify full insertion depth

A slightly loose DB25 connector was enough to create intermittent bus timeout errors.

2. Cable Shielding Verification

• Ensure shield continuity from end to end
• Check grounding at single reference point only
• Avoid multiple grounding points (ground loop risk)

Field observation: improper grounding caused random signal spikes during motor startup.

3. EMI / Noise Source Analysis

• Check proximity to VFD output cables
• Inspect routing near large motors or transformers
• Verify separation distance from power wiring

EMI coupling is one of the most common hidden causes of DeltaV communication instability.

Common Field Failure Modes

Loose Connector (Most Frequent)

• Symptoms: intermittent communication loss
• Fix: reseat and tighten DB25 connectors

Shield Discontinuity

• Symptoms: noise, random module dropouts
• Fix: restore proper grounding continuity

EMI Interference

• Symptoms: unstable communication under load
• Fix: reroute cable and improve shielding

Field Recovery Case Study

Scenario: DeltaV system experienced random I/O module disconnections.

Diagnosis:

• Cable routed near VFD output lines
• One DB25 connector partially loosened
• Shield not properly grounded

Corrective Actions:

• Re-routed cable away from power circuits
• Re-terminated DB25 connectors
• Restored proper shield grounding

Result:
Stable system restored; no further communication dropouts observed during full-load operation.
