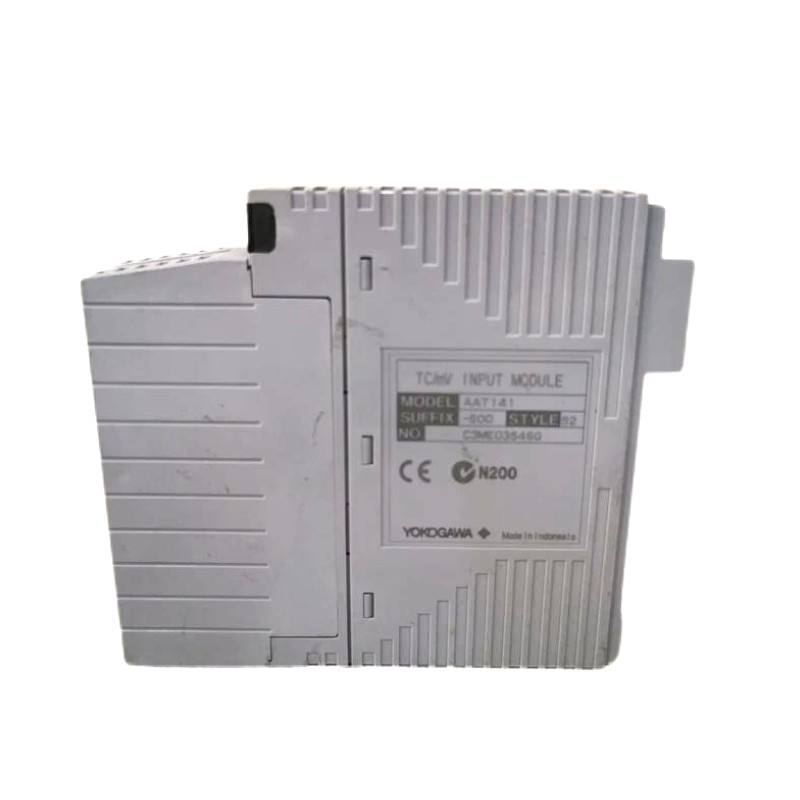

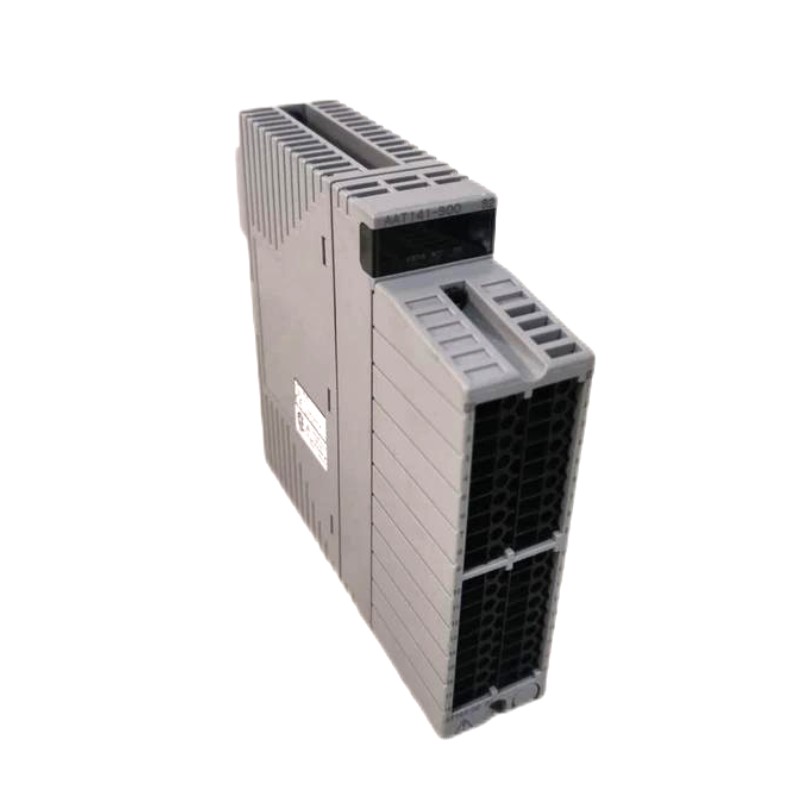

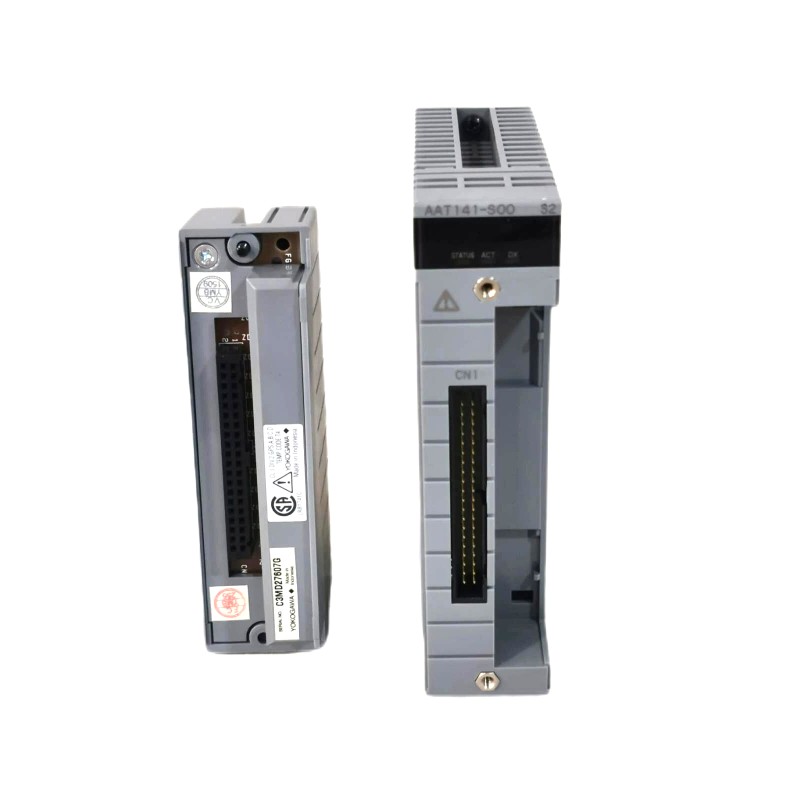

The Yokogawa AAT141‑S00 S2 is a high‑performance analog transmitter and signal conditioning module engineered for industrial automation and process control systems that demand accurate and stable data conversion. This versatile module accepts a broad range of sensor signals—such as thermocouples, RTDs, voltage, and current—and conditions them into reliable analog outputs that downstream controllers can use with confidence. Built for robust operation in demanding environments, the AAT141‑S00 S2 enhances system stability, improves control loop performance, and simplifies integration with distributed control architectures.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Yokogawa AAT141‑S00 S2 |
| Module Type | Analog Transmitter / Signal Conditioning Module |
| Input Signal Types | RTD, Thermocouple, mV, Voltage, Current |
| Output Signal Types | 4–20 mA DC / 0–10 V DC |
| Input Configuration | Sensor‑dependent, configurable |
| Resolution | Equivalent to 16‑bit |
| Output Accuracy | ±0.1% full scale |
| Isolation | Galvanic isolation (I/O to system) |
| Response Time | ≤100 ms (typical) |
| Operating Temperature Range | −20 °C to +60 °C |
| Mounting Options | DIN Rail / Panel Mount |
| Dimensions (W×H×D) | 45 mm × 120 mm × 100 mm |
| Weight | 0.32 kg |
Recommended Related Models
-
Yokogawa AAT140‑S00 – Standard analog transmitter for basic conditioning tasks.
-
Yokogawa AAR181‑S00 S2 – High‑density RTD input module for comprehensive temperature monitoring.
-
Yokogawa AAM51‑S2 – Analog input/output module for dual‑purpose signal acquisition.
