Product Overview

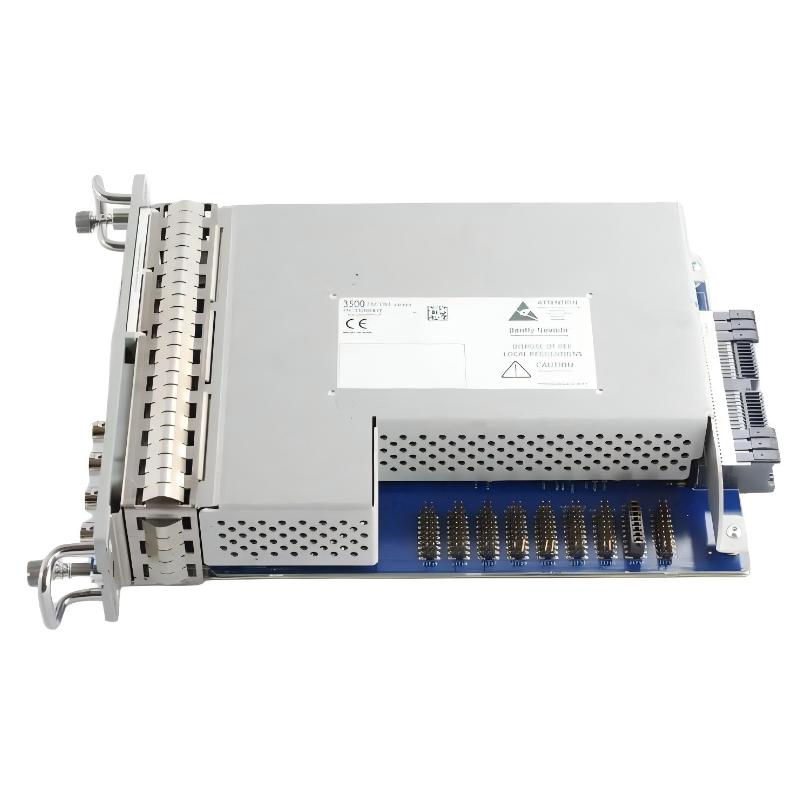

The Bently Nevada 3500/42E 285691-01 PROX/SEIS Monitoring Module delivers reliable, real-time insight into the mechanical condition of critical rotating equipment. By combining proximity and seismic monitoring in a single module, it supports advanced machinery protection and predictive maintenance strategies. Its robust design and seamless integration with the 3500 system make it a trusted choice for safeguarding high-value industrial assets.

Technical Specifications

Item	Specification
Model	3500/42E
Part Number	285691-01
Product Type	PROX/SEIS Monitoring Module
Dimensions	228 × 50 × 289 mm
Weight	1.27 kg
Signal Types	Proximity and seismic
System Compatibility	Bently Nevada 3500 System
Installation Location	3500 rack
Application Environment	Machinery protection and condition monitoring

Recommended Related Models

Bently Nevada 3500/22M – Transient Data Interface Module
Bently Nevada 3500/65 – Temperature Monitoring Module
Bently Nevada 3500/77 – Cylinder Pressure Monitoring Module

Popular Related Models

Bently Nevada 3500/40M – Proximitor Monitor
Bently Nevada 3500/60 – Temperature Monitor
Bently Nevada 3500/93 – Display Interface Module

Asset Protection Applications

The Bently Nevada 3500/42E PROX/SEIS Monitoring Module is designed for continuous monitoring of proximity and seismic signals in critical rotating machinery. It is widely applied in:

Turbines, compressors, and large rotating equipment
Machinery protection systems requiring real-time condition monitoring
Power generation and oil & gas facilities with high asset value
Industrial plants focused on predictive maintenance and fault prevention

Operational Advantages

Dual-Signal Monitoring Capability: Supports both proximity and seismic measurements for comprehensive machinery insight.
Real-Time Machinery Protection: Enables early detection of abnormal vibration and displacement conditions.
3500 System Compatibility: Seamlessly integrates into the Bently Nevada 3500 monitoring platform.
High Measurement Reliability: Designed for stable and accurate signal processing in demanding environments.
Critical Asset Safeguarding: Helps prevent unplanned shutdowns and catastrophic equipment failures.

Technical FAQs

What is the primary function of the 3500/42E module?
It monitors proximity and seismic vibration signals from rotating machinery.
Which monitoring system does it belong to?
Bently Nevada 3500 Machinery Protection System.
What are the physical dimensions of the module?
228 × 50 × 289 mm.
What is the weight of the module?
1.27 kg.
Is it suitable for continuous condition monitoring?
Yes, it is designed for 24/7 industrial operation.
Does it support predictive maintenance strategies?
Yes, it provides critical data for early fault detection.
Where is the module typically installed?
In a 3500 rack within a machinery protection cabinet.
Can it monitor multiple types of sensors?
Yes, it supports both proximity probes and seismic sensors.
Is it used in high-risk industrial environments?
Yes, it is commonly deployed in power and oil & gas applications.
What industries commonly rely on this module?
Power generation, oil & gas, petrochemical, and heavy industry.
