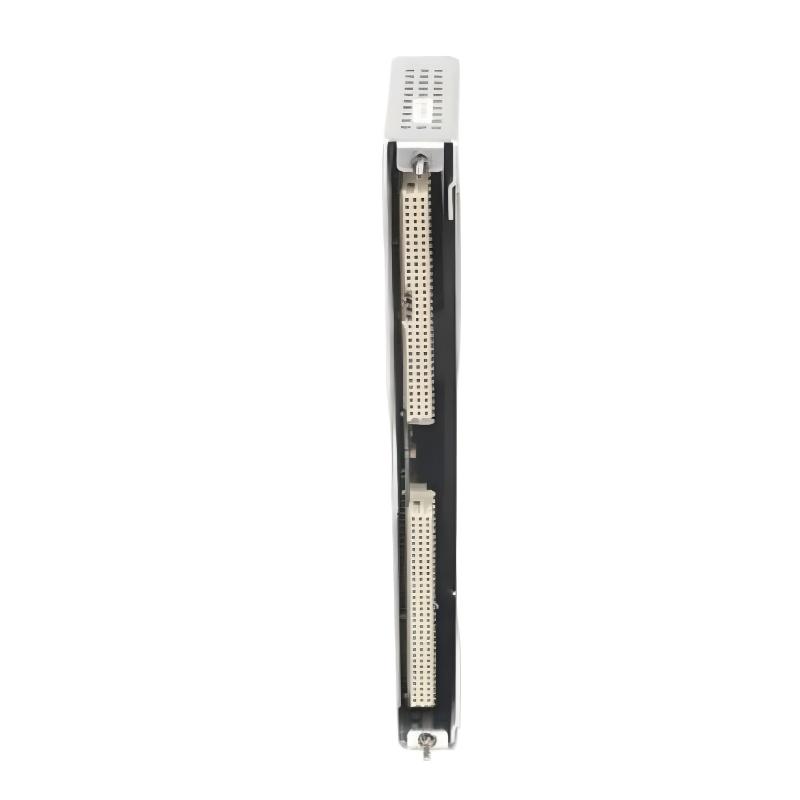

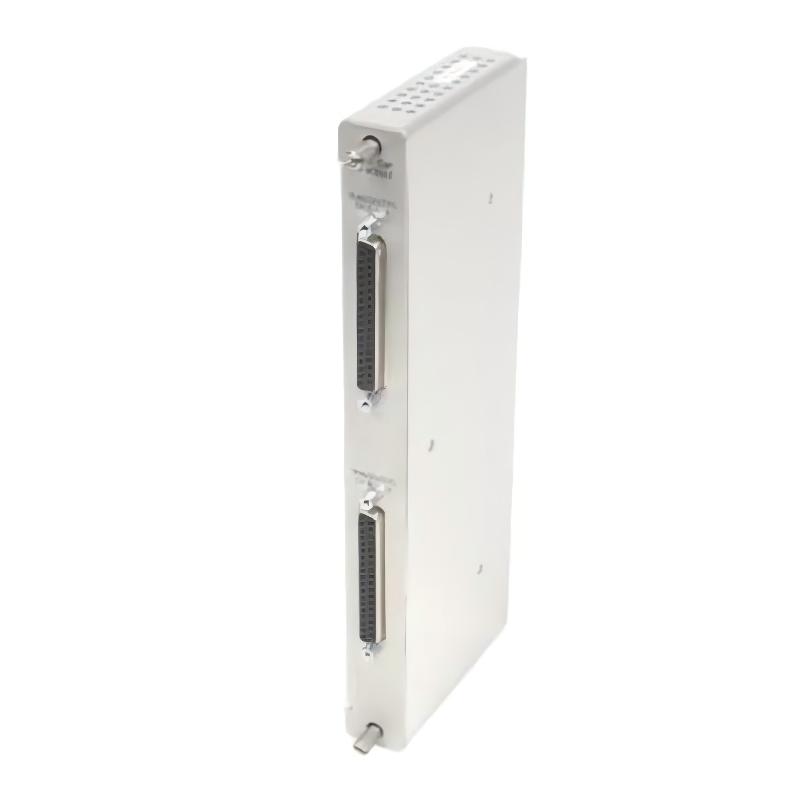

Bently Nevada 3500/65 172109-01 RTD/Isolation Tip TC I/O Module
Bently Nevada 3500/65 172109-01 RTD/Isolation Tip TC I/O Module
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/65 Product Origin:USA Product Dimensions:241.3 x 24.4 x 99.1 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 3500/65 172109-01 RTD/Isolation Tip TC I/O Module delivers precise temperature monitoring and reliable signal isolation in a compact form factor. By supporting both RTD and thermocouple sensors, it provides operators with accurate process data, helping to prevent equipment damage, maintain operational efficiency, and extend machinery life.
Technical Specifications
Parameter
Specification
Model
3500/65 172109-01
Dimensions
241.3 × 24.4 × 99.1 mm
Weight
0.45 kg
Input Types
RTD, Thermocouple (TC)
Output
Digital and Analog
Isolation
Built-in
Operating Temperature
-40°C to +70°C
Power Supply
24 VDC
Alarm Response
<50 ms
Mounting
3500 Series Rack Compatible
Environmental Rating
NEMA 4/IP65
Recommended Related Modules
Bently Nevada 3500/22 Vibration Monitoring Module
Bently Nevada 3500/40 Vibration Monitor
Bently Nevada 3500/55 Tachometer Module
Popular Related Models
Bently Nevada 3500/20 Keyphasor Module
Bently Nevada 3500/15 Overspeed Trip Module
Bently Nevada 3300 XL Proximity Probe 8 mm
Applications
The Bently Nevada 3500/65 RTD/Isolation Tip TC I/O Module is designed for precise temperature monitoring in critical industrial processes. It supports RTD and thermocouple sensors, making it ideal for turbines, compressors, and generators where accurate temperature data is essential. Widely deployed in power plants, petrochemical facilities, and heavy industry to ensure process safety and optimize operational performance.
Advantages
Dual Sensor Support: Compatible with both RTD and thermocouple inputs for versatile temperature monitoring.
Integrated Isolation: Protects downstream systems from electrical interference and ensures signal integrity.
Compact Design: Lightweight and space-saving, ideal for 3500 series racks.
Reliable Performance: Built to operate under high vibration and temperature extremes.
Simplified Installation: Internal connections and mounting compatibility reduce setup time.
Technical FAQs
What types of temperature sensors does it support?
RTD and thermocouple (TC) sensors.
Does it provide electrical isolation?
Yes, built-in isolation ensures signal accuracy and safety.
Is it compatible with older 3500 series racks?
Yes, fully backward-compatible.
What is the operating temperature range?
-40°C to +70°C.
Does it support both analog and digital outputs?
Yes, flexible integration with control systems is supported.
How easy is installation?
Designed for standard 3500 series rack mounting with internal terminals.
Does it include self-diagnostics?
Continuous monitoring ensures reliable operation.
Can multiple modules be networked together?
Yes, supports centralized monitoring of multiple machines.
What is the typical response time for alarms?
Less than 50 milliseconds.
Is it suitable for industrial environments with high vibration?
Yes, engineered for harsh conditions.
