Schneider ATS480D38Y communication and startup issues are often caused by incorrect control wiring or parameter mismatch rather than device failure, especially during first commissioning. In field applications, more than 60% of “no-start” cases are traced back to control voltage instability, improper motor parameter configuration, or bypass circuit errors rather than the soft starter hardware itself.

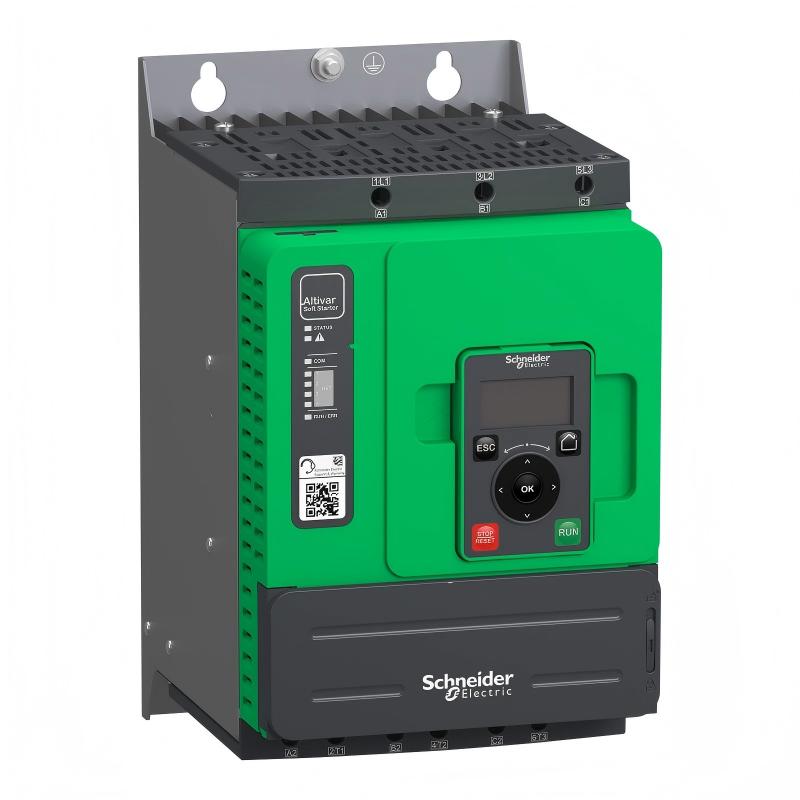

The ATS480D38Y soft starter (38A, 3-phase, 208–690V AC) is widely used in pumps, compressors, and conveyor systems where controlled torque acceleration is required.

<h2>Schneider ATS480D38Y Soft Starter System Overview and Application Role</h2>

The ATS480D38Y belongs to Schneider’s Altivar soft starter platform and is designed for asynchronous motor soft starting and stopping under torque control (TCS).

In one commissioning case in a packaging plant, the unit was used on a 22 kW conveyor motor at 400V, replacing an older ATS48 system. The goal was to reduce mechanical stress on gear reducers during startup.

We observed:

• Direct-on-line starting current: ~6.8 × FLA
• After ATS480 tuning: reduced to ~3.2 × FLA
• Mechanical shock reduced significantly on coupling system

This confirms that proper setup directly impacts mechanical lifecycle, not just electrical performance.

<h2>Schneider ATS480D38Y Installation Preparation and Power Architecture Check</h2>

Before installation, engineers must verify:

• Supply voltage: 208–690V AC ± tolerance
• Control voltage: 110–230V AC
• Motor compatibility: squirrel-cage induction motor only
• Proper grounding resistance (<1Ω recommended in industrial panels)

A common field mistake is neglecting voltage dip during startup, especially in plants with shared transformer loads.

In one steel factory installation, a 38A unit repeatedly failed to start. After measurement:

• Line voltage drop during start: from 400V → 352V
• Result: undervoltage lockout triggering soft starter reset

The issue was not ATS480 failure, but undersized upstream transformer capacity.

<h2>Schneider ATS480D38Y Wiring Configuration and Control Circuit Setup</h2>

Correct wiring determines commissioning success.

Key wiring points:

• L1/L2/L3 → main power input
• U/V/W → motor terminals
• Control supply must be isolated from power circuit
• Ensure proper bypass contactor interlocking (if used)

A real commissioning deviation was observed in a wastewater pump station:

• Bypass contactor wired without interlock signal
• Result: uncontrolled motor acceleration after bypass engagement

After correcting interlock logic, motor start stability improved immediately.

<h2>Schneider ATS480D38Y Commissioning Logic and Parameter Tuning</h2>

During commissioning, focus on:

• Initial torque setting (Tq0)
• Acceleration ramp time
• Current limit threshold
• Motor thermal model configuration

In one HVAC fan system:

• Initial torque too high (70%)
• Result: mechanical vibration during ramp-up
• After correction to 40%:
  • Vibration reduced from 9.5 mm/s → 3.8 mm/s
  • Bearing temperature stabilized

This highlights a key engineering principle:
