Allen-Bradley 5094-RTB32C removable terminal block installation issues are usually caused by incorrect wiring methods, loose terminal connections, improper module matching, or incorrect field device termination rather than terminal block failure. In industrial automation systems, a removable terminal block may appear mechanically installed while signal problems occur because wiring torque, channel assignment, or field connections are not correctly verified.

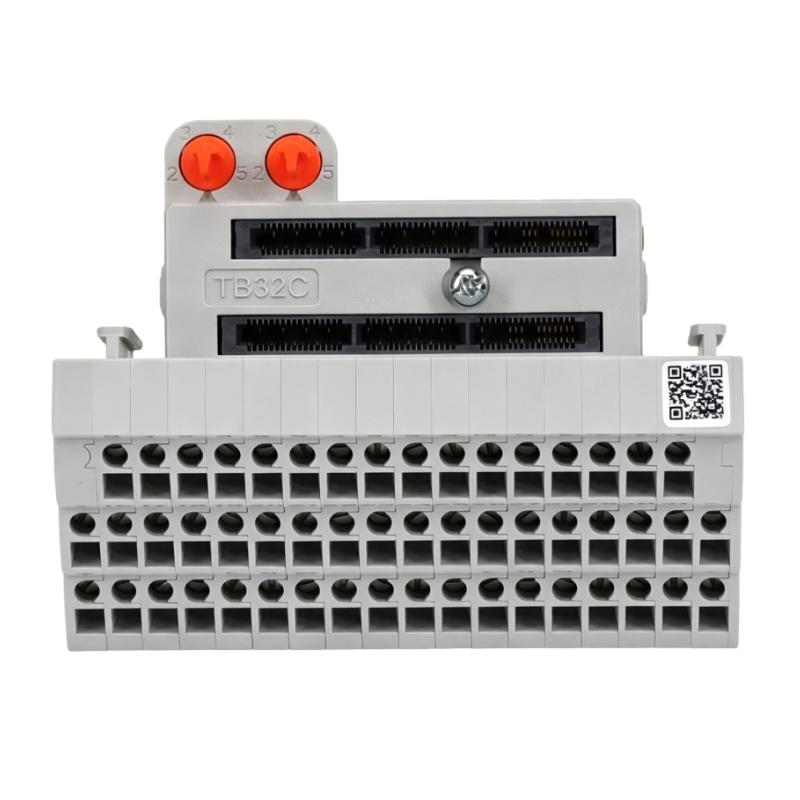

The Allen-Bradley 5094-RTB32C Flex 5000 Removable Terminal Block is a detachable wiring interface designed for Flex 5000 I/O modules. It provides a convenient connection method between industrial field devices and automation I/O channels, allowing faster maintenance, easier module replacement, and improved cabinet organization.

Allen-Bradley 5094-RTB32C Flex 5000 Terminal Block Application Overview

The 5094-RTB32C works as the physical connection point between Flex 5000 I/O modules and external field wiring.

Typical control architecture:

Field Sensors / Actuators
          |
          |
Allen-Bradley 5094-RTB32C Terminal Block
          |
          |
Flex 5000 I/O Module
          |
          |
ControlLogix / CompactLogix System

Common applications:

• Digital input and output systems
• Analog monitoring systems
• Remote I/O cabinets
• Machine automation panels
• Process control installations

Main functions:

• Removable field wiring interface
• Simplified I/O maintenance
• Organized signal termination
• Faster module replacement

The detachable design allows technicians to remove the terminal block without disconnecting every field wire individually, reducing maintenance time during I/O replacement.

In one machine upgrade project, engineers replaced an older I/O platform with a Flex 5000 system using the Allen-Bradley 5094-RTB32C terminal block.

During commissioning:

• I/O module status: Normal
• Network communication: Active
• Field devices: Some channels inactive

The initial assumption was a defective I/O module.

The engineering team performed a structured inspection:

• Checked terminal wiring
• Verified channel mapping
• Measured field signals
• Inspected terminal block seating

Field findings:

Before correction:

• PLC communication: Normal
• Module diagnostics: No major fault
• Input signals: Missing on several channels

Further inspection found that the removable terminal block was not fully locked into position after installation.

After reseating the terminal block:

• Field signals returned
• I/O channels operated correctly
• System commissioning completed

The problem was caused by installation quality rather than terminal block damage.

Allen-Bradley 5094-RTB32C Installation Preparation and I/O System Planning

Before installing the 5094-RTB32C removable terminal block, engineers should confirm the complete Flex 5000 I/O configuration.

Preparation requirements:

• Confirm compatible Flex 5000 module type
• Review wiring drawings
• Identify channel assignments
• Prepare correct wire sizes
• Verify grounding requirements

Installation checklist:

A common field mistake is transferring a terminal block between modules without checking channel assignment.

Incorrect terminal mapping may cause:

• Wrong sensor feedback
• Incorrect actuator operation
• Machine sequence errors

Allen-Bradley 5094-RTB32C Removable Terminal Block Wiring Installation

Correct wiring installation ensures reliable field signal transmission.

Field Wire Connection Inspection

Engineers should verify:

• Wire position
• Terminal numbering
• Wire stripping length
• Terminal tightening

Poor termination may create:

• Intermittent signals
• High contact resistance
• Unexpected I/O faults

Terminal Block Locking Verification

The removable terminal block should be:

• Fully inserted
• Mechanically secured
• Properly aligned

During one troubleshooting case:

Initial condition:

• Flex 5000 module powered normally
• Network communication stable
• Several output devices inactive

Engineering inspection:

• Output logic: Correct
• Module status: Normal
• Terminal connection: Loose

After locking the 5094-RTB32C correctly:

• Outputs operated normally
• Machine sequence recovered

Allen-Bradley 5094-RTB32C Setup and System Configuration

The setup process focuses on matching physical wiring with PLC configuration.

Important checks:

• I/O channel assignment
• Module configuration
• Signal type selection
• Field device identification

Typical diagnostic logic:

IF Module_Status = Normal
AND Terminal_Block = Installed
AND Channel_Assignment = Correct

THEN

Enable_Field_Control

Engineers should compare:

• Electrical drawings
• PLC tags
• Physical terminal connections

This prevents common commissioning errors where software configuration and field wiring do not match.

Allen-Bradley 5094-RTB32C Commissioning Validation and Performance Testing

Final commissioning should verify the complete signal path.

Input Signal Test

Check:

• Sensor activation
• PLC input status
• Channel response

Output Signal Test

Verify:

• PLC command
• Terminal output
• Field device operation

Example commissioning results:

Before correction:

• Several I/O points unavailable
• Troubleshooting time increased

After correction:

• All channels responded correctly
• Field signals stabilized
• Machine operation was restored

A successful Allen-Bradley 5094-RTB32C installation requires correct wiring practices, secure mechanical installation, and accurate I/O verification.
