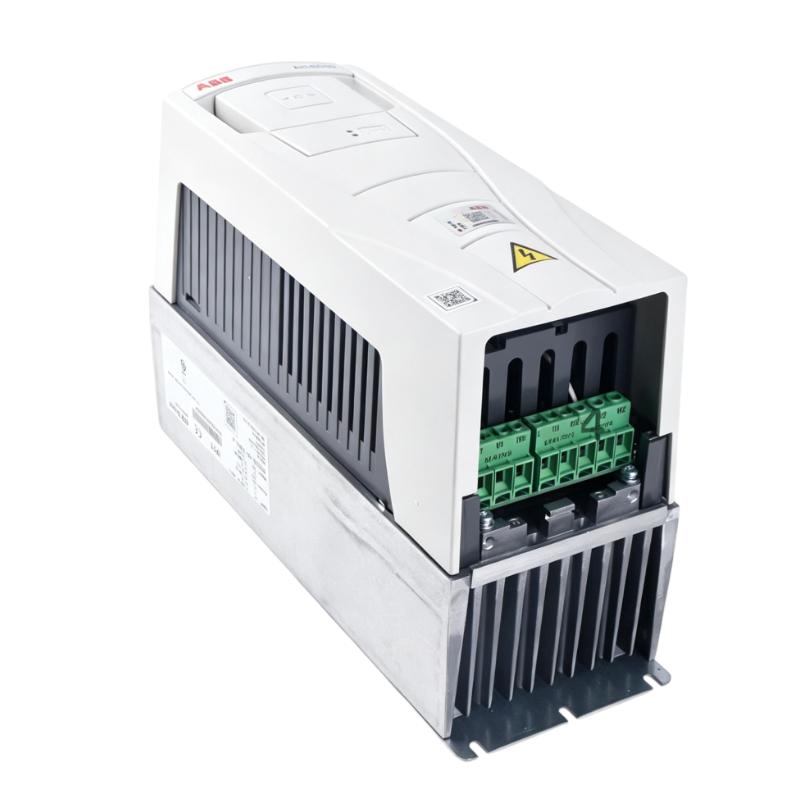

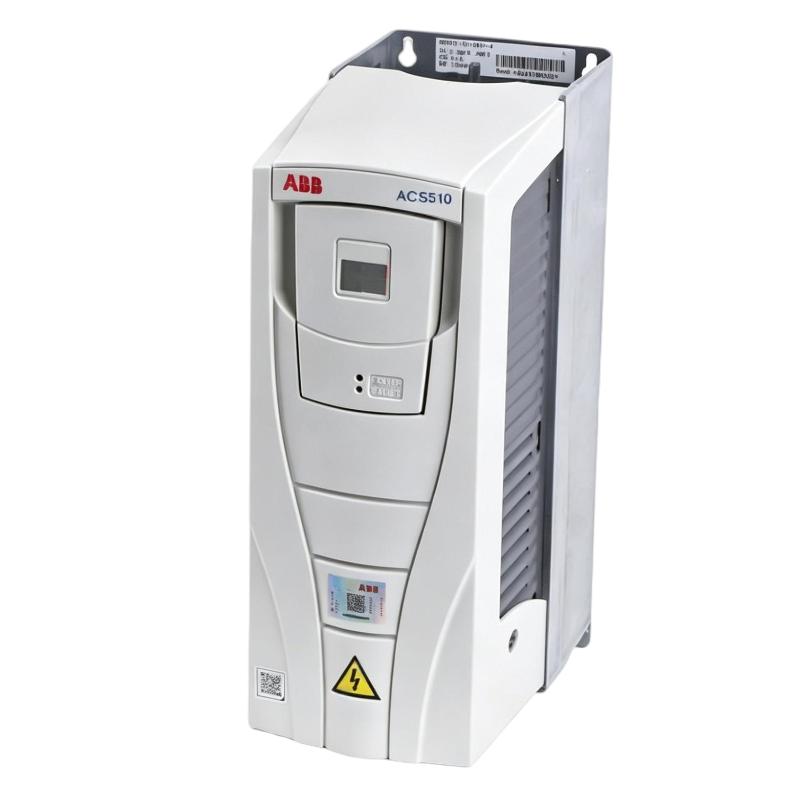

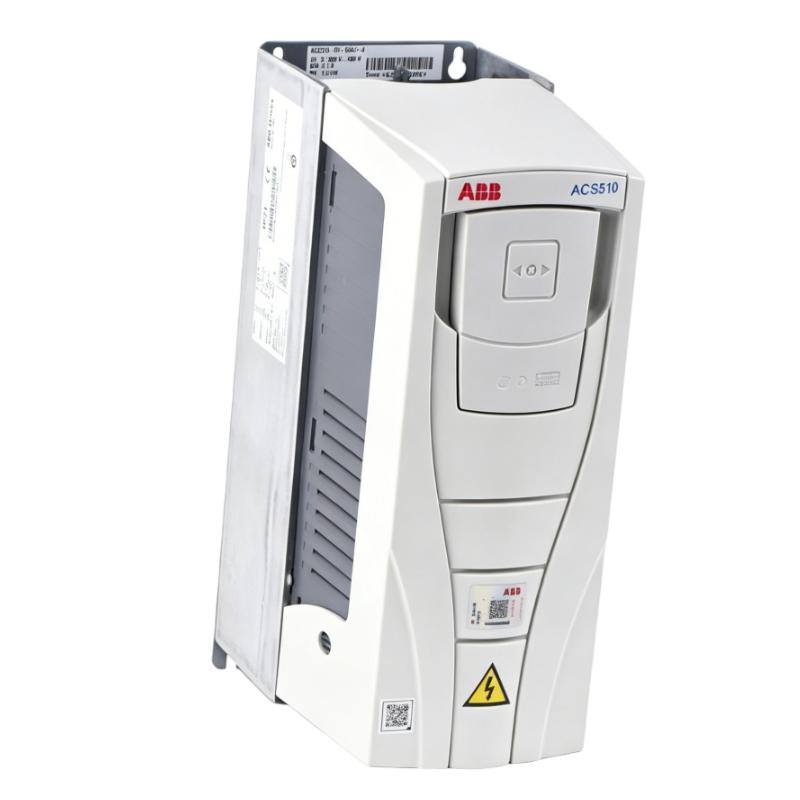

ABB ACS510-01-04A1-4 3ABD00015742-D Frequency Converter
ABB ACS510-01-04A1-4 3ABD00015742-D Frequency Converter
0.0
Points
Brand:ABB PLC Item No.:ACS510-01-04A1-4 Product Origin:Sweden (SE) Product Dimensions:465 × 225 × 365 mm Product Weight:6.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS510-01-04A1-4 3ABD00015742-D frequency converter is a reliable industrial drive solution developed for general-purpose motor control applications. It combines compact construction, practical functionality, and dependable performance to meet the needs of modern automation systems.
With a 4.1 A output current rating and 1.5 kW motor capacity, this model is designed for smaller motor-driven equipment requiring smooth speed control and consistent operation. The drive provides a balanced combination of performance and flexibility, making it suitable for applications where efficient motor management is essential.
The ACS510-01-04A1-4 helps engineers and system integrators create reliable motor control solutions with simplified installation and efficient operation.
Technical Specifications
Specification
Details
Product Type
Frequency Converter
Manufacturer
ABB
Model
ACS510-01-04A1-4
Ordering Code
3ABD00015742-D
Product Series
ACS510

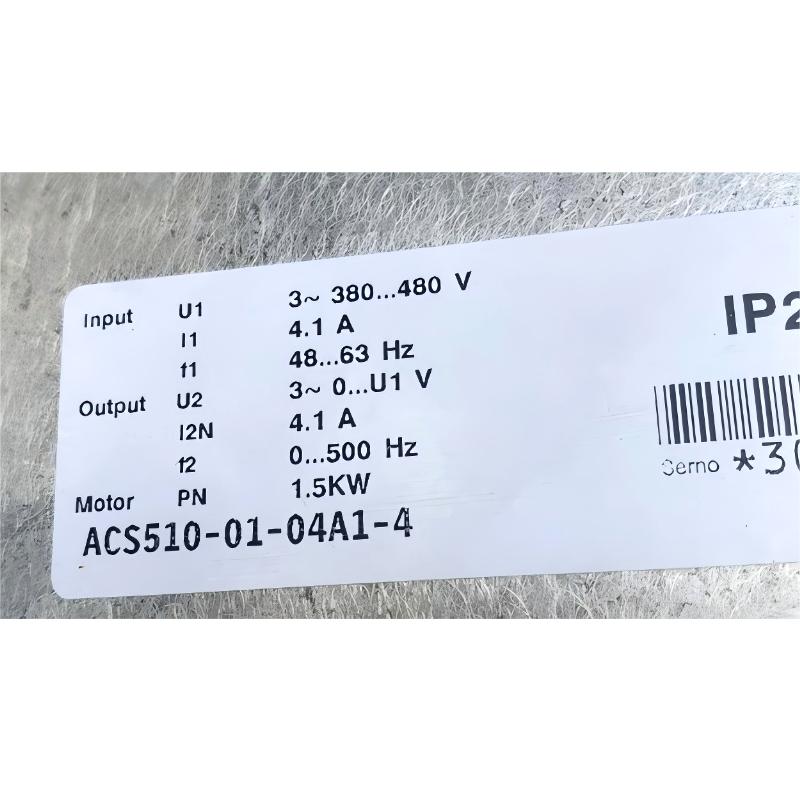

Rated Motor Power
1.5 kW
Rated Output Current
4.1 A
Input Voltage
380–480 V AC
Input Phase
Three-phase
Control Method
Scalar Control / Vector Control
Installation Type
Wall-mounted
Protection Class
IP21
Cooling Method
Air Cooling
Dimensions (W × H × D)
465 × 225 × 365 mm
Weight
6.10 kg (13.45 lb)
Recommended Related Models
Model
Description
ABB ACS510-01-03A3-4
1.1 kW general-purpose frequency converter
ABB ACS510-01-05A6-4
Higher current model for small industrial applications
ABB ACS510-01-07A2-4
3 kW frequency converter for increased load requirements
ABB ACS580-01-03A4-4
Advanced industrial drive alternative
Popular Related Models
Model
Description
ABB ACS510-01-03A3-4
Compact 1.1 kW industrial frequency converter
ABB ACS510-01-04A1-4
1.5 kW general-purpose frequency converter
ABB ACS510-01-05A6-4
Flexible drive solution for industrial equipment
ABB ACS510-01-07A2-4
Popular 3 kW automation drive
ABB ACS510-01-09A4-4
Higher capacity ACS510 series model
Application Fields & Industrial Solutions
The ABB ACS510-01-04A1-4 3ABD00015742-D frequency converter is a compact general-purpose drive designed for efficient motor control in industrial automation systems. It provides stable speed regulation, reliable operation, and flexible configuration for applications requiring precise motor management and energy-efficient performance.
This frequency converter is suitable for a wide range of industrial applications, including:
Pump and water circulation systems
HVAC and ventilation equipment
Industrial fan applications
Light-duty conveyor systems
Processing machinery
General automation equipment
With its practical design and dependable control capability, the ACS510-01-04A1-4 provides an effective solution for improving motor performance and supporting stable operation in various industrial environments.
Product Advantages & Technical Highlights
Efficient Motor Regulation
The ACS510-01-04A1-4 enables smooth motor speed adjustment and stable operation, helping equipment achieve consistent performance while improving system efficiency.
Compact Industrial Design
Its optimized structure supports convenient installation in control cabinets and machinery systems where space efficiency is important.
Reliable Operating Performance
Designed for continuous industrial use, this frequency converter provides dependable control functions and supports long-term equipment operation.
Flexible Application Adaptability
The drive can be configured for different motor control requirements, making it suitable for pumps, fans, and various automation applications.
Simplified Commissioning
User-friendly configuration features help reduce setup complexity and allow efficient adjustment for different operating conditions.
Technical FAQs
1. What is the rated motor power of the ABB ACS510-01-04A1-4?
The ACS510-01-04A1-4 is designed for motor applications with a rated power of 1.5 kW.
2. What input voltage does this frequency converter support?
This model supports a three-phase 380–480 V AC power supply.
3. What type of motors can be controlled by this drive?
The frequency converter is designed for standard AC induction motors used in industrial equipment.
4. Is the ACS510-01-04A1-4 suitable for pump and fan applications?
Yes. It is suitable for variable speed control applications such as pumps, fans, and ventilation systems.
5. Can this frequency converter be integrated into automation systems?
Yes. The ACS510 series supports communication options for integration with industrial control systems.
6. Does the drive support adjustable acceleration and deceleration settings?
Yes. Operating parameters can be configured according to application requirements.
7. What protection functions are included in this model?
The drive provides monitoring, fault management, and motor protection functions to support reliable operation.
8. Can the ACS510-01-04A1-4 be used in OEM machinery?
Yes. Its compact design and flexible configuration make it suitable for OEM equipment applications.
9. How does this frequency converter improve motor operation?
It improves motor control by providing adjustable speed regulation and efficient power management.
10. What industries commonly use the ACS510 series?
The ACS510 series is commonly used in manufacturing, HVAC, water systems, and general industrial automation.
