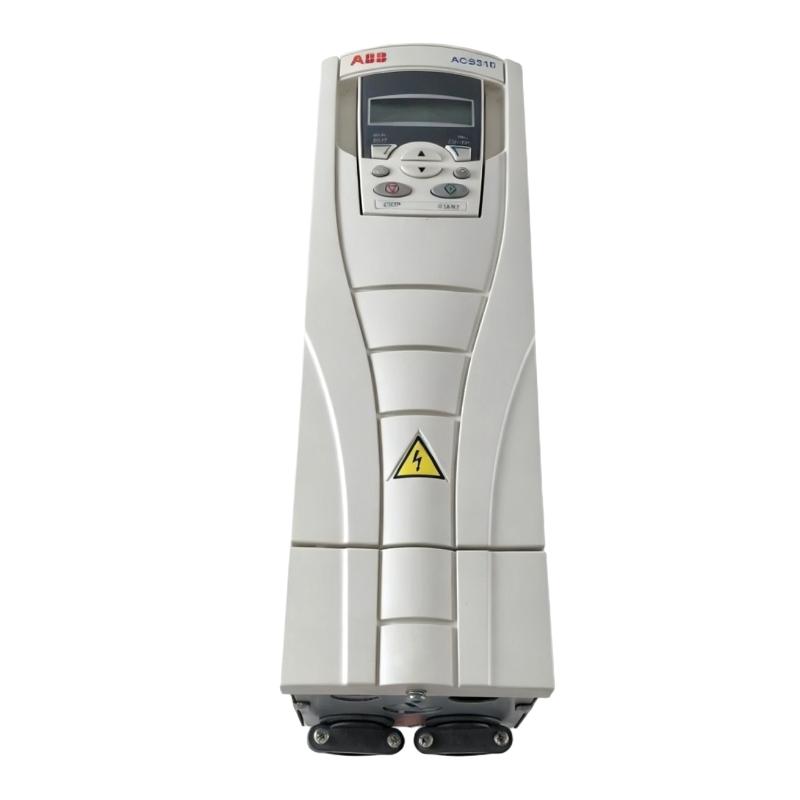

ABB ACS510-01-07A2-4 3ABD00015744-D Variable Frequency Drive (VFD)_ABB PLC

Introduction

The ABB ACS510-01-07A2-4 Variable Frequency Drive is a compact and efficient motor control solution developed for industrial applications requiring dependable speed regulation and optimized energy usage.

Featuring ABB’s advanced drive technology, this model delivers smooth motor operation, flexible system integration, and simplified maintenance. Its robust design makes it suitable for a wide range of automation environments, from manufacturing equipment to infrastructure systems.

The ACS510 series is recognized for combining performance, reliability, and ease of use, helping businesses improve productivity while maintaining efficient electrical operation.

Technical Specifications

Specification	Details
Product Model	ABB ACS510-01-07A2-4
Product ID	3ABD00015744-D
Module Type	Variable Frequency Drive (VFD)
Drive Series	ACS510
Rated Power	3 kW
Rated Output Current	7.2 A
Input Voltage	380–480 V AC
Input Phase	Three-phase
Frequency	50/60 Hz
Motor Control Type	Adjustable Frequency Control
Protection Class	IP21
Cooling Method	Air Cooling
Installation Type	Wall-mounted
Dimensions (H × W × D)	465 × 225 × 365 mm
Weight	6.10 kg (13.45 lb)

Recommended Related Models

Model	Description
ABB ACS510-01-04A1-4	Compact VFD designed for smaller motor applications within the ACS510 family
ABB ACS510-01-09A4-4	Higher output current model for applications requiring additional motor capacity
ABB ACS510-01-012A-4	Suitable for medium-duty pump, fan, and industrial control applications
ABB ACS510-01-017A-4	Extended capacity option for larger variable torque systems

Popular Related Models

Model	Description
ABB ACS510-01-03A3-4	Entry-level VFD for light industrial motor control
ABB ACS510-01-05A4-4	General-purpose drive for compact automation systems
ABB ACS510-01-023A-4	Higher performance model for larger industrial equipment
ABB ACS510-01-031A-4	Powerful drive solution for demanding process applications

The ABB ACS510-01-07A2-4 Variable Frequency Drive provides a reliable combination of energy-efficient operation, flexible control capability, and industrial durability, making it a strong choice for modern automation and motor management applications.

Applications

The ABB ACS510-01-07A2-4 Variable Frequency Drive is designed for efficient motor control in industrial applications where stable operation, energy savings, and reliable performance are required. As part of ABB’s widely adopted ACS510 drive family, this VFD is particularly suitable for variable torque applications including pumps, fans, HVAC systems, water treatment equipment, and general machinery.

With advanced motor control functions and flexible configuration options, the ACS510-01-07A2-4 helps improve process efficiency while maintaining smooth and accurate motor operation. It is a dependable solution for OEM equipment manufacturers, automation engineers, and industrial facilities seeking long-term drive performance.

Advantages

Advantage	Description
High-efficiency motor control	Provides precise speed regulation to optimize motor performance and reduce unnecessary energy consumption
Reliable industrial operation	Built with ABB’s proven drive technology for stable performance in demanding environments
Flexible application support	Suitable for pumps, fans, conveyors, and various industrial automation systems
User-friendly commissioning	Simplifies parameter configuration and system setup for faster installation
Integrated protection functions	Helps protect motors and drive systems against common operating faults
Expandable communication capability	Supports integration with automation networks through optional communication solutions

The ACS510-01-07A2-4 combines practical functionality with industrial reliability, making it an excellent choice for applications requiring efficient motor management and consistent operation.

Technical FAQs

1. What is the primary function of the ABB ACS510-01-07A2-4?

The ABB ACS510-01-07A2-4 is a variable frequency drive used to control AC motor speed, torque, and operating performance in industrial applications.

2. Which motor types are compatible with this VFD?

This drive is mainly designed for three-phase AC induction motors commonly used in industrial machinery and process systems.

3. What applications are best suited for the ACS510 series?

The ACS510 series is optimized for variable torque applications such as pumps, fans, HVAC equipment, and water handling systems.

4. Does the ACS510-01-07A2-4 support automatic motor parameter identification?

Yes. The drive provides motor identification functions that assist with accurate configuration and improved control performance.

5. Can this VFD be integrated into an industrial automation system?

Yes. The ACS510 platform supports integration with industrial control systems through available communication options and fieldbus modules.

6. What control methods does this drive support?

The drive supports frequency control and vector-based motor control functions for improved speed and torque regulation.

7. How does the ACS510 improve energy efficiency?

By adjusting motor speed according to actual load requirements, the drive reduces unnecessary energy consumption, especially in fan and pump applications.
