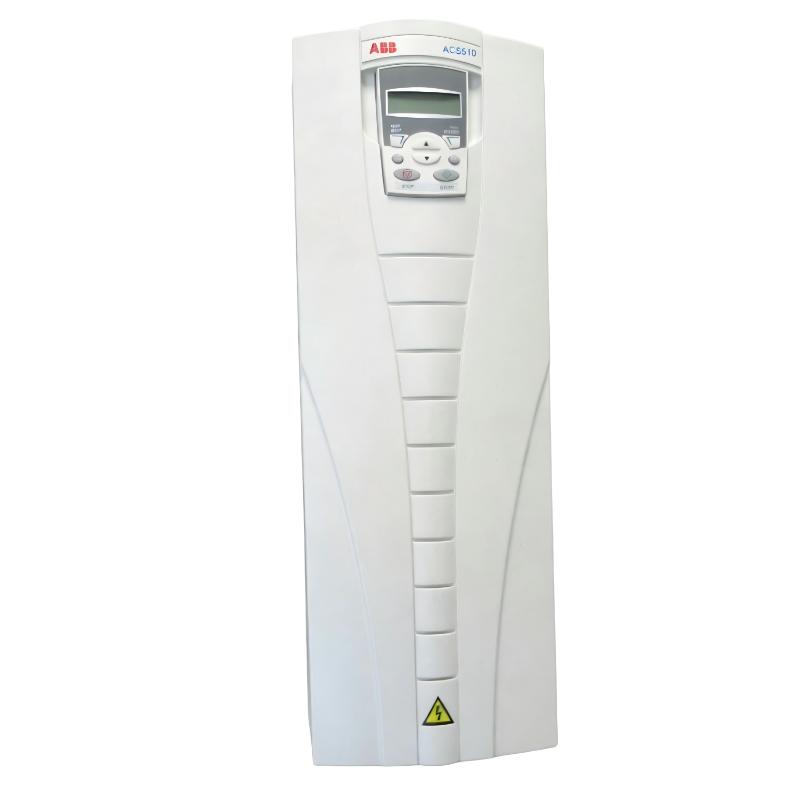

ABB ACS510-01-088A-4 3ABD00021616-D Variable Frequency Drive (VFD)_ABB PLC

Introduction

The ABB ACS510-01-088A-4 Variable Frequency Drive is engineered to deliver efficient and reliable motor control for medium and high-power industrial applications. Designed with ABB’s established drive technology, this model provides smooth acceleration, accurate speed adjustment, and dependable operation across a wide range of machinery systems.

With a rated output current of 88 A and a robust R4 frame construction, the ACS510-01-088A-4 offers excellent performance for applications where energy efficiency and operational stability are critical. Its practical design supports easy integration into industrial control systems while helping users achieve improved productivity and reduced energy consumption.

Technical Specifications

Specification	Details
Product Model	ABB ACS510-01-088A-4
Product ID	3ABD00021616-D
Module Type	Variable Frequency Drive (VFD)
Drive Series	ACS510
Rated Output Current	88 A
Rated Power	45 kW
Input Voltage	380–480 V AC
Input Phase	Three-phase
Frequency Range	47.5–63 Hz
Frame Size	R4
Efficiency Level	IE2
Protection Class	IP21
Mounting Type	Wall-mounted
Cooling Method	Air-cooled
Dimensions (H × W × D)	800 × 310 × 410 mm
Weight	26.00 kg (57.32 lb)

Recommended Related Models

Model	Description
ABB ACS510-01-072A-4	Lower current option for medium-duty pump and fan applications
ABB ACS510-01-088A-4	High-capacity model for 45 kW industrial motor control
ABB ACS510-01-125A-4	Higher output model for larger motor applications
ABB ACS510-01-157A-4	Extended capacity VFD for demanding industrial systems

Popular Related Models

Model	Description
ABB ACS510-01-060A-4	General-purpose VFD for medium power industrial equipment
ABB ACS510-01-046A-4	Compact solution for smaller variable torque applications
ABB ACS580-01-088A-4	Advanced generation drive with enhanced control features
ABB ACS880-01-087A-5	Premium industrial drive solution for complex automation systems

The ABB ACS510-01-088A-4 Variable Frequency Drive provides a strong combination of industrial durability, efficient motor management, and flexible system integration. It is a reliable choice for applications requiring consistent performance, energy optimization, and long-term operational value.

Applications

The ABB ACS510-01-088A-4 Variable Frequency Drive is a high-performance motor control solution designed for industrial systems requiring reliable speed regulation, efficient energy management, and stable operation. With its 88 A output current capability and industrial-grade design, this VFD is well suited for demanding applications such as large pumps, ventilation systems, HVAC equipment, conveyors, compressors, and process machinery.

Built within the ABB ACS510 drive family, this model provides a practical solution for industries looking to improve motor efficiency while maintaining smooth process control. Its flexible configuration and robust operating characteristics make it suitable for OEM equipment, manufacturing facilities, and automation projects requiring dependable variable speed control.

Advantages

Advantage	Description
Powerful motor control capability	Designed for higher-power industrial motors requiring stable speed and torque management
Energy optimization performance	Helps reduce operational costs by adjusting motor speed according to load requirements
Reliable ABB engineering	Delivers consistent performance with proven industrial drive technology
Flexible industrial integration	Supports connection with automation systems through optional communication solutions
Advanced protection functions	Helps safeguard motors and drive components during abnormal operating conditions
Simplified commissioning process	Provides user-friendly configuration for faster installation and startup

The ACS510-01-088A-4 combines efficiency, reliability, and ease of operation, making it an ideal choice for industrial users seeking long-term performance and reduced maintenance requirements.

Technical FAQs

1. What is the main purpose of the ABB ACS510-01-088A-4?

The ACS510-01-088A-4 is a variable frequency drive designed to control AC motors by adjusting frequency and voltage output for optimized speed and torque performance.

2. What type of motors can be controlled by this VFD?

This drive is primarily designed for three-phase AC induction motors used in industrial automation and process applications.

3. What applications are commonly supported by the ACS510 series?

The ACS510 series is commonly applied in pumps, fans, HVAC systems, conveyors, and other variable torque industrial applications.

4. Does the ACS510-01-088A-4 support PID control functions?

Yes. The ACS510 platform includes built-in PID functions suitable for process control applications such as pressure, flow, and temperature regulation.
