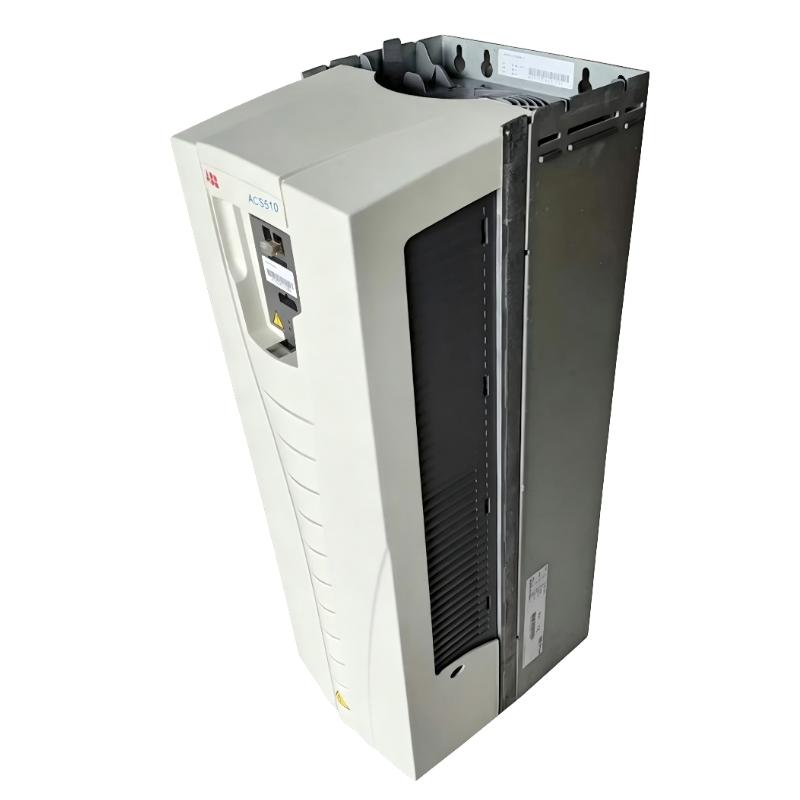

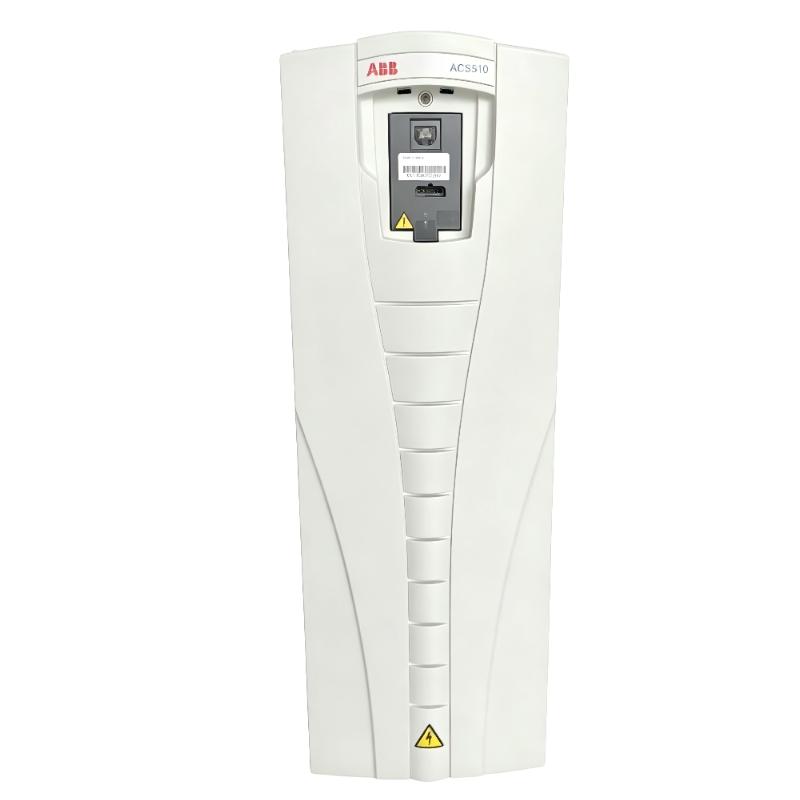

ABB ACS510-01-088A-4 3ABD00021616-S Variable Frequency Drive (VFD)
ABB ACS510-01-088A-4 3ABD00021616-S Variable Frequency Drive (VFD)
0.0
Points
Brand:ABB PLC Item No.:ACS510-01-088A-4 Product Origin:Sweden (SE) Product Dimensions:800 × 310 × 410 mm Product Weight:26 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB ACS510-01-088A-4 Variable Frequency Drive is a robust industrial drive solution developed for applications requiring efficient motor control and dependable performance. This model belongs to the ABB ACS510 family and is designed to deliver reliable operation for general-purpose industrial systems.
Featuring an 88 A output current rating, 45 kW power capability, and R4 frame construction, the ACS510-01-088A-4 provides excellent control flexibility for larger motors used in industrial processes. Its combination of energy optimization, easy commissioning, and reliable hardware makes it a preferred choice for automation projects where performance and durability are essential.
The 3ABD00021616-S version provides the same trusted ACS510 platform performance while offering a specific ABB product identification option for industrial supply and replacement requirements.
Technical Specifications
Specification
Details
Product Model
ABB ACS510-01-088A-4
Product ID
3ABD00021616-S
Module Type
Variable Frequency Drive (VFD)
Drive Family
ACS510
Rated Output Current
88 A
Rated Power
45 kW
Input Voltage
380–480 V AC
Input Phase
Three-phase
Frequency Range
47.5–63 Hz
Frame Size
R4
Efficiency Level
IE2
Protection Class
IP21
Mounting Type
Wall-mounted
Cooling Method
Air-cooled
Dimensions (H × W × D)
800 × 310 × 410 mm
Weight
26.00 kg (57.32 lb)
Recommended Related Models
Model
Description
ABB ACS510-01-072A-4
Lower current model suitable for medium-power industrial motor applications
ABB ACS510-01-088A-4
Same current class model for ACS510 industrial drive applications
ABB ACS510-01-125A-4
Higher output capacity model for larger motor systems
ABB ACS510-01-157A-4
Advanced capacity option for heavy-duty variable speed applications
Popular Related Models
Model
Description
ABB ACS510-01-046A-4
General-purpose VFD for medium industrial applications
ABB ACS510-01-060A-4
Flexible drive solution for pumps, fans, and machinery
ABB ACS580-01-088A-4
Modern ABB drive platform with enhanced control features
ABB ACS880-01-087A-4
Premium industrial drive for advanced automation systems
The ABB ACS510-01-088A-4 Variable Frequency Drive delivers a strong balance of efficiency, reliability, and application flexibility. With proven ABB engineering and robust industrial performance, it provides a dependable solution for motor control systems requiring stable operation and long service life.
Applications
The ABB ACS510-01-088A-4 Variable Frequency Drive is designed for industrial motor control applications that require high reliability, efficient operation, and precise speed management. With an 88 A output current rating, this VFD is suitable for medium-to-high power motor systems including pumps, fans, HVAC equipment, compressors, conveyors, and process machinery.
Built for demanding industrial environments, the ACS510-01-088A-4 helps optimize motor performance by providing smooth acceleration, controlled operation, and improved energy efficiency. It is widely used by system integrators, machine builders, and industrial facilities that need a dependable drive solution for continuous operation.
Advantages
Key Advantage
Description
High-performance motor regulation
Provides accurate frequency and speed control for demanding industrial motor applications
Energy-saving operation
Helps reduce power consumption by adjusting motor speed according to actual process requirements
Industrial-grade reliability
Designed with ABB drive technology for stable and long-term operation
Flexible system integration
Supports connection with automation systems through compatible communication options
Advanced protection capability
Provides monitoring and protective functions to improve system safety
Efficient commissioning
Simplifies installation, configuration, and maintenance processes
The ABB ACS510-01-088A-4 combines strong motor control performance with practical usability, offering an efficient solution for industries seeking reliable automation and reduced operating costs.
Technical FAQs
1. What is the ABB ACS510-01-088A-4 used for?
The ABB ACS510-01-088A-4 is a variable frequency drive designed to control AC motor speed, torque, and operating efficiency in industrial applications.
2. What motor type is compatible with this VFD?
This drive is mainly designed for three-phase AC induction motors used in industrial machinery and process systems.
3. Does the ACS510-01-088A-4 support pump and fan applications?
Yes. The ACS510 series is optimized for variable torque applications such as pumps, fans, and HVAC systems.
4. Can this VFD be integrated with PLC control systems?
Yes. The drive supports industrial automation integration through optional fieldbus communication modules and control interfaces.
5. Does the ACS510-01-088A-4 include PID control functionality?
Yes. Built-in PID control functions allow the drive to regulate process variables such as pressure, flow, and temperature.
6. How does this VFD improve motor efficiency?
The drive adjusts motor speed based on operating requirements, reducing unnecessary energy consumption and improving overall system efficiency.
7. What communication protocols can be supported?
The ACS510 platform supports optional communication adapters for integration with common industrial automation networks.
8. Can users customize operating parameters?
Yes. Motor data, acceleration settings, control parameters, and protection values can be configured according to application needs.
9. What protection functions are available in this drive?
The VFD includes protective monitoring features for conditions such as overload, overcurrent, overheating, and motor faults.
10. Is the ACS510-01-088A-4 suitable for continuous industrial operation?
Yes. It is designed for reliable operation in industrial environments requiring stable motor control and consistent performance.
