The Bently Nevada 330854-080-24-05 Extension Cable is a specialized connection component designed for 3300 XL 25 mm proximity monitoring systems. It provides an extended signal path between compatible proximity probes and monitoring electronics, allowing greater installation flexibility for large rotating machinery applications.
With an 8-meter cable length and high-temperature FluidLoc cable construction, this extension cable is engineered to maintain stable signal transmission in demanding industrial environments. Its durable design supports reliable operation in applications where temperature resistance, mechanical strength, and consistent monitoring performance are essential.
The 330854-080-24-05 is commonly selected for critical equipment monitoring systems, helping engineers optimize sensor installation layouts while maintaining accurate vibration and position measurement performance.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330854-080-24-05 |
| Product Type | 3300 XL 25 mm Extension Cable |
| Cable Length | 8.0 m (26.2 ft) |
| Cable Type | High Temperature FluidLoc Cable |
| Cable Construction | 75 Ω Triaxial PFA Insulated Cable |
| Cable Configuration | FluidLoc Extension Cable |
| Approval Option | 05 Configuration |
| Compatible System | 3300 XL Proximity Transducer System |
| Application | Proximity Probe Signal Extension |
| Operating Temperature | Approx. -35°C to +200°C |
| Cable Diameter | Approx. 7.1 mm |
| Minimum Bend Radius | Approx. 38 mm |
| Approximate Dimensions | 8000 mm × 7.1 mm |
| Approximate Weight | 0.45 kg |
The 330854-080-24-05 configuration combines an extended 8-meter connection length with high-temperature cable technology, making it suitable for industrial installations requiring reliable communication between field sensors and monitoring equipment.
Recommended Related Models
| Model | Product Type | Recommended Application |
|---|---|---|
| Bently Nevada 330854-040-24-05 | 3300 XL Extension Cable | Shorter installation distance requirements |
| Bently Nevada 330854-080-24-00 | 3300 XL Extension Cable | Standard high-temperature cable applications |
| Bently Nevada 330854-080-24-CN | 3300 XL Extension Cable | Hazardous area monitoring configurations |
| Bently Nevada 330851 Series | 3300 XL 25 mm Proximity Probe | Shaft vibration and displacement measurement |
These related components provide flexible options for building complete machinery monitoring systems for industrial rotating equipment.
Popular Bently Nevada Models
| Model | Product Category |
|---|---|

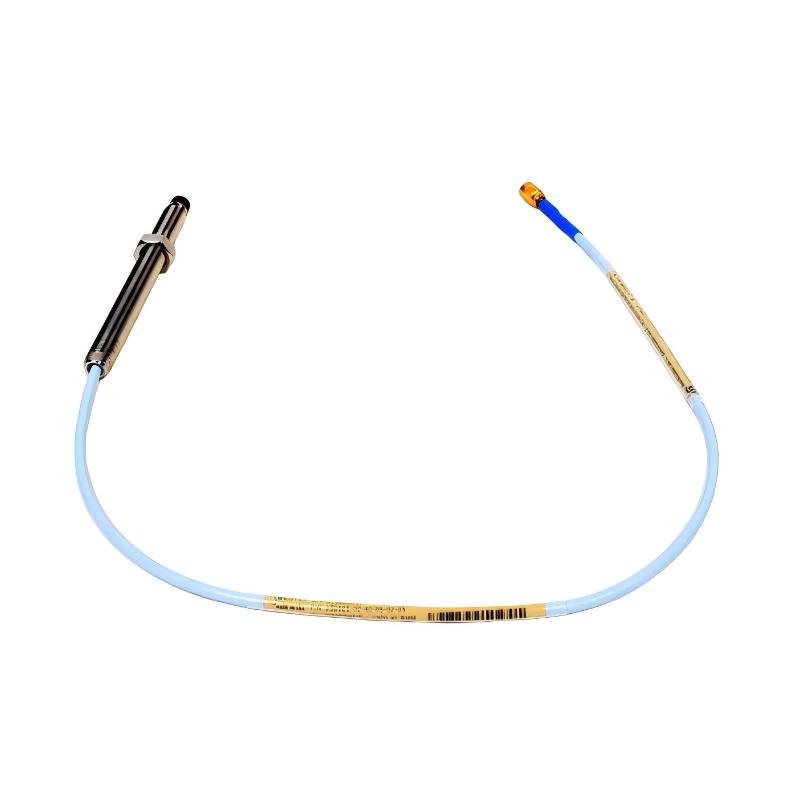

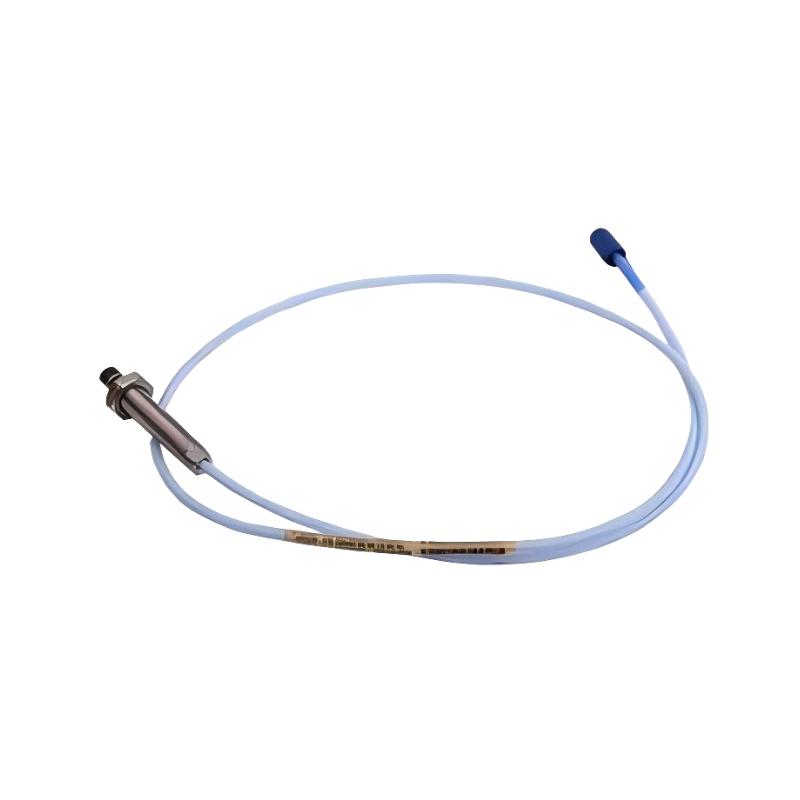

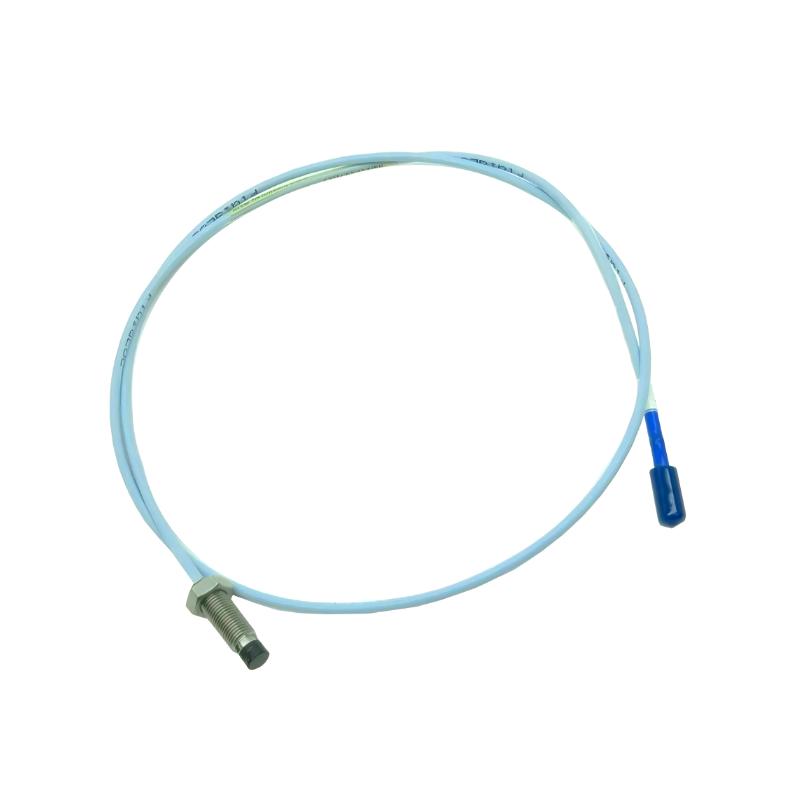

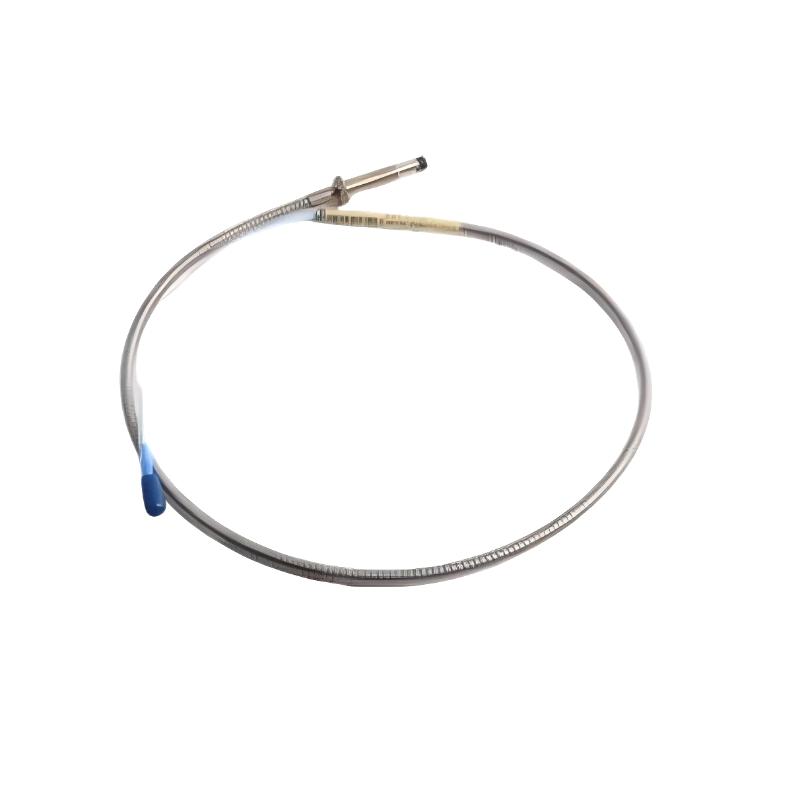

| Bently Nevada 330101 Series | 3300 XL 8 mm Proximity Probe |
