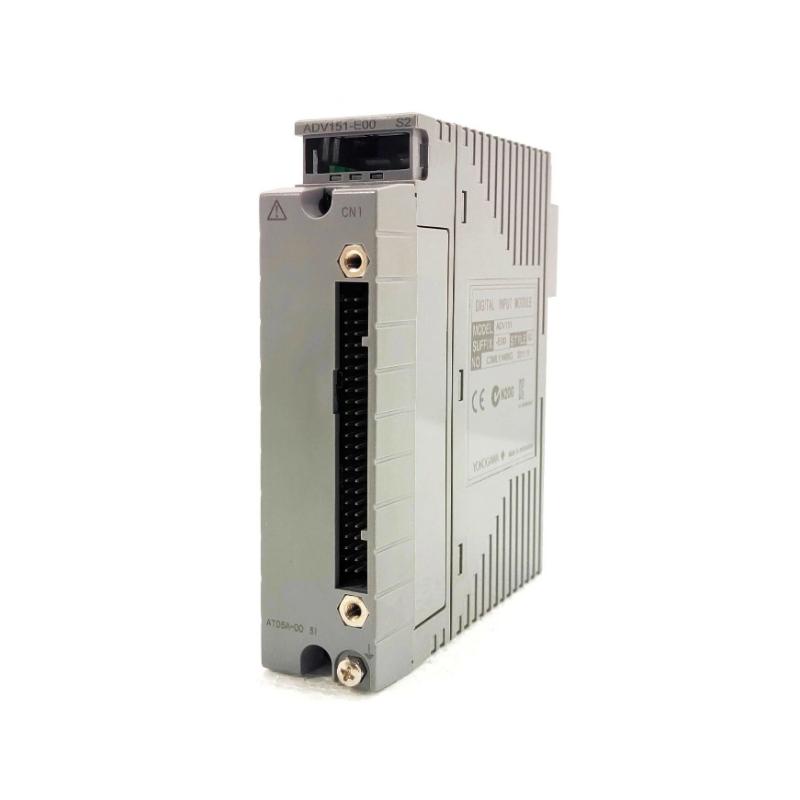

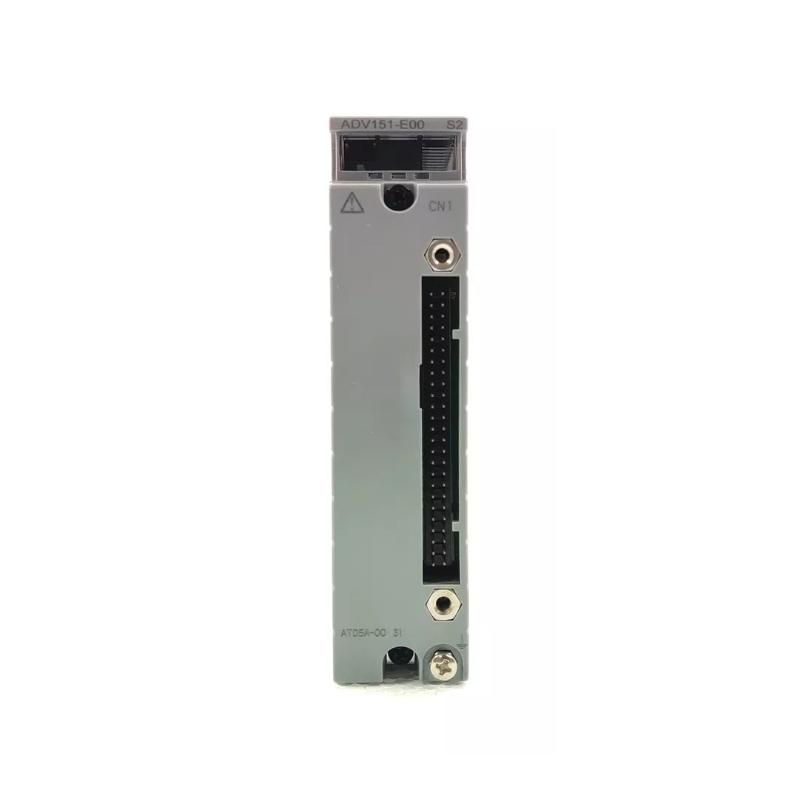

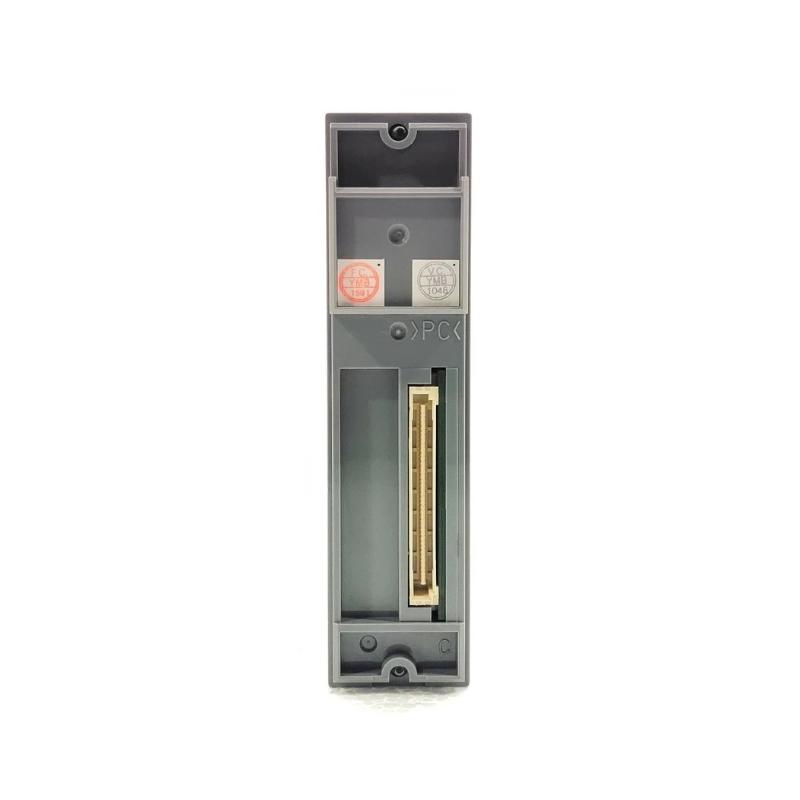

ADV151-E00 S2 2 ADV151-E00 S2 3 ADV151-E00 S2 4

The Yokogawa ADV151-E00 Analog Input Module is a high-performance signal processing solution tailored for complex industrial applications where precision and reliability are paramount. This module is ideal for industries such as power generation, oil & gas, chemical processing, and manufacturing, where accurate real-time data acquisition of critical process variables like temperature, pressure, flow, and level is crucial. The ADV151-E00 seamlessly integrates with Yokogawa’s Distributed Control Systems (DCS), Programmable Logic Controllers (PLCs), and SCADA systems, enabling precise control, monitoring, and optimization of industrial processes.

With support for a wide range of input signals, including voltage, current, RTD, and thermocouple, the ADV151-E00 provides versatile and scalable solutions for various industrial measurement needs. Its enhanced signal processing capabilities ensure the highest levels of accuracy and speed, making it a vital component in maintaining process safety and maximizing system performance.

Technical Specifications

Model: ADV151-E00
Type: Analog Input Module
Input Types:
- Voltage (0-10V, 1-5V, etc.)
- Current (4-20mA)
- RTD (Resistance Temperature Detector)
- Thermocouple (Types J, K, T, R, S, N, B, E)
Number of Channels: 8 or 16 channels (configurable based on variant)
Accuracy:
- Analog Inputs: ±0.1% of full scale
- RTD Inputs: ±0.2% of full scale
- Thermocouple Inputs: ±0.5% of full scale
Signal Conversion Speed: 200 ms per channel
Power Supply: 24 VDC
Mounting Type: DIN rail or panel mount
Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
Dimensions (L x W x H): 6.7 x 4.1 x 2.6 inches (170 x 105 x 66 mm)
Weight: 1.4 lbs (635 g)
Communication Protocols: Yokogawa proprietary protocol, Modbus RTU, OPC
LED Indicators: Power, I/O status, Communication status

Recommended Related Models

Yokogawa FA-M3 PLC: A modular and high-performance PLC system that integrates seamlessly with the ADV151-E00, making it ideal for complex process automation tasks.
Yokogawa YS1700: A versatile transmitter designed to provide accurate measurements of temperature, pressure, and flow, complementing the ADV151-E00 for precise process monitoring.
Yokogawa ADMAG AXF: Magnetic flowmeters that offer highly accurate flow measurements, perfect for integration with the ADV151-E00 for optimized flow control.
Yokogawa DPharp EJA: A range of advanced pressure transmitters that work harmoniously with the ADV151-E00 to ensure accurate pressure readings in demanding environments.

Popular Yokogawa Models

Yokogawa CENTUM VP: A comprehensive Distributed Control System (DCS) that integrates with the ADV151-E00 to enable real-time process control and data acquisition for critical industrial systems.
Yokogawa RX3i PLC: A flexible, modular PLC system that pairs perfectly with the ADV151-E00 for efficient and scalable process automation and control.
Yokogawa YS1000: A precision transmitter for measuring temperature, pressure, and flow, which complements the ADV151-E00 for seamless process control and monitoring.
Yokogawa EJX Series: Advanced transmitters designed for accurate pressure measurement, integrating with the ADV151-E00 to provide real-time insights into critical parameters.

Applications

The Yokogawa ADV151-E00 Analog Input Module is designed for industrial applications where precision, reliability, and versatility are required. Some of the key applications include:

Power Generation: The ADV151-E00 is used to monitor key parameters like turbine temperature, pressure, and flow, ensuring safe and efficient operation in power plants.
Oil & Gas: In the oil and gas industry, the ADV151-E00 measures wellhead pressure, temperature, and flow, optimizing system safety and performance in both upstream and downstream processes.
Chemical Processing: The ADV151-E00 provides precise monitoring of temperature, pressure, and flow in chemical plants, contributing to consistent product quality and safe operations.
Manufacturing Automation: The module ensures that key production parameters such as temperature and pressure are accurately monitored, leading to reduced downtime, better product quality, and more efficient manufacturing processes.
Water and Wastewater Treatment: The ADV151-E00 is used in water treatment facilities to monitor pumps, valves, chemical dosing systems, and flow rates, ensuring effective water treatment and compliance with environmental regulations.
HVAC and Building Automation: In HVAC systems, the ADV151-E00 helps monitor temperature and humidity, contributing to energy efficiency and comfortable indoor environments.

Advantages

High-Precision Measurement: With ±0.1% accuracy for analog inputs, ±0.2% for RTD inputs, and ±0.5% for thermocouple inputs, the ADV151-E00 ensures precise data acquisition and monitoring for critical industrial processes.
Wide Range of Input Types: The module supports multiple input types, including voltage, current, RTD, and thermocouple, offering flexibility for diverse industrial applications.
Seamless Integration with Yokogawa Systems: The ADV151-E00 integrates effortlessly with Yokogawa’s DCS, PLCs, and SCADA systems, providing seamless data exchange and optimized process control.
Fast Data Acquisition: The module features a signal conversion speed of 200 ms per channel, allowing for real-time monitoring and rapid response to changing process conditions.
Durability in Harsh Environments: With an operating temperature range of -20°C to 60°C, the ADV151-E00 is designed for reliable performance in harsh industrial environments.
Compact and Efficient Design: The ADV151-E00’s compact form factor allows for easy integration into space-constrained control panels, ensuring efficient use of valuable space.

Technical FAQs

What types of input signals can the ADV151-E00 process?
- The ADV151-E00 processes voltage (0-10V, 1-5V), current (4-20mA), RTD, and thermocouple inputs (Types J, K, T, R, S, N, B, E).
What is the accuracy of the ADV151-E00 for temperature measurements?
- The ADV151-E00 provides ±0.2% accuracy for RTD inputs and ±0.5% for thermocouple inputs.
How many channels does the ADV151-E00 support?
- The ADV151-E00 can be configured with either 8 or 16 channels depending on the model variant.
What is the signal conversion speed of the ADV151-E00?
- The ADV151-E00 has a signal conversion speed of 200 ms per channel.
What power supply is required for the ADV151-E00?
- The ADV151-E00 operates on a 24 VDC power supply.
Can the ADV151-E00 be integrated with other Yokogawa products?
- Yes, the ADV151-E00 integrates seamlessly with Yokogawa’s DCS, PLCs, and SCADA systems.
What is the operating temperature range of the ADV151-E00?
- The ADV151-E00 operates within a temperature range of -20°C to 60°C (-4°F to 140°F).
What are the dimensions of the ADV151-E00?
- The ADV151-E00 measures 6.7 x 4.1 x 2.6 inches (170 x 105 x 66 mm).
How is the ADV151-E00 mounted?
- The ADV151-E00 can be mounted on a DIN rail or directly onto a panel for flexible installation.
Is the ADV151-E00 suitable for use in hazardous environments?
