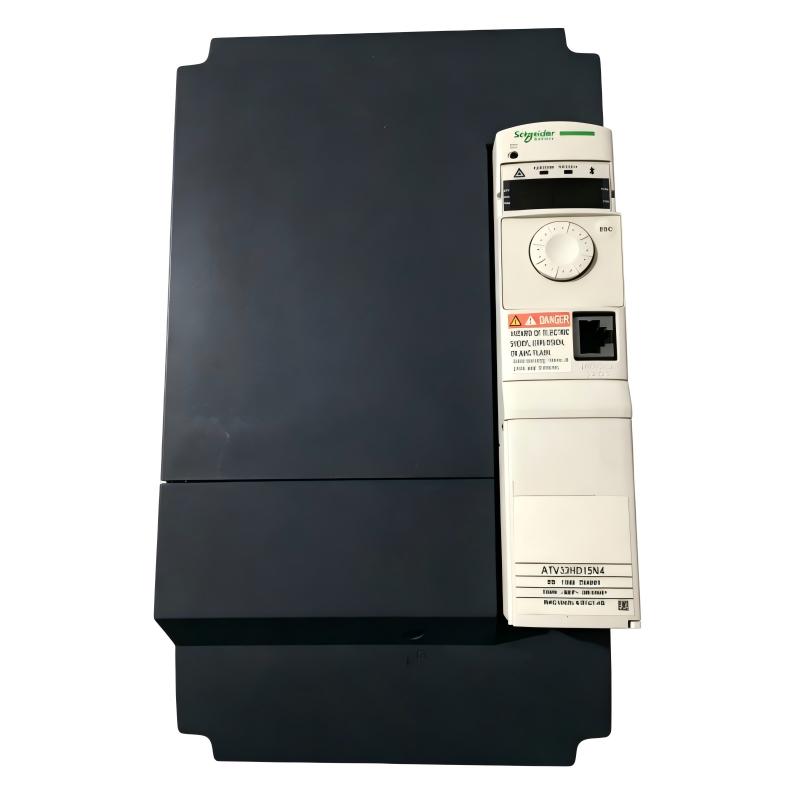

Schneider ATV32HD15N4 Variable Speed Drive faults are commonly caused by motor overload, incorrect acceleration settings, insufficient cooling, or mechanical load changes rather than internal drive failure. In practical troubleshooting, engineers should analyze the entire drive system before replacing the inverter unit.

This article describes a field failure where an ATV32HD15N4 drive repeatedly stopped during acceleration after a production line capacity upgrade.

Schneider ATV32HD15N4 Variable Speed Drive Fault Symptoms

The machine showed:

• Drive stopped during startup
• Motor restarted after reset
• Fault occurred mainly during acceleration
• Low-speed operation remained normal

Initial inspection:

• Drive display worked normally
• Control signal was correct
• Motor insulation condition was acceptable

The maintenance team suspected a damaged variable speed drive.

However, engineers started troubleshooting from the complete operating system.

Schneider ATV32HD15N4 Fault Diagnosis Process and System Analysis

The troubleshooting path:

Power Supply
      |
ATV32HD15N4 Drive
      |
Motor Cable
      |
Motor
      |
Mechanical Load

Engineers checked:

• Input voltage
• Motor current
• Drive parameters
• Mechanical resistance

The purpose was to determine whether the problem came from:

• Power supply instability
• Drive configuration
• Motor condition
• Machine load increase

Schneider ATV32HD15N4 Overcurrent Fault Investigation

Field measurements:

Before repair:

• Input voltage: 398V AC
• Motor rated current: 30A
• Startup current peak: 51A
• Fault occurrence: 5 times/day

The electrical supply remained stable.

Further inspection showed:

• Production load had increased
• Conveyor resistance became higher
• Original acceleration setting was unchanged

Engineering conclusion:

The drive was responding correctly by limiting abnormal current.

The fault was caused by changed mechanical conditions.

Schneider ATV32HD15N4 Root Cause Analysis and Recovery

The final root cause was an unsuitable acceleration profile after production expansion.

Previous condition:

• Lower material load
• Original settings acceptable

Current condition:

• Higher production capacity
• Increased starting torque requirement

Failure pattern:

Before correction:

• Acceleration overcurrent fault
• Frequent manual resets
• Production interruption

After correction:

• Acceleration time increased
• Current peak reduced
• Machine returned to normal operation

Schneider ATV32HD15N4 Troubleshooting Repair Procedure and Testing

Corrective actions:

Drive Parameter Adjustment

Engineers modified:

• Acceleration ramp
• Current limitation settings
• Motor control parameters

Mechanical System Inspection

Checked:

• Conveyor movement
• Bearing condition
• Load resistance

Final validation:

Before repair:

• Faults: 5 times per shift
• Machine stops: Frequent

After repair:

• 7-day continuous production test completed
• No acceleration faults occurred

Schneider ATV32HD15N4 Common Fault Patterns and Diagnostic Methods

Overcurrent Fault During Acceleration

Symptoms:

• Drive trips when starting motor
• Current increases rapidly

Diagnostic method:

• Check acceleration time
• Measure motor current
• Inspect mechanical load

Overtemperature Fault

Symptoms:

• Fault occurs after long operation
• Restart temporarily restores operation

Diagnostic method:

• Check cabinet temperature
• Inspect cooling airflow
• Verify installation space

Speed Instability Fault

Symptoms:

• Motor speed fluctuates
• Output frequency changes unexpectedly

Diagnostic method:

• Verify speed reference signal
• Check motor parameters
• Inspect control wiring

Schneider ATV32HD15N4 Long-Term Maintenance Strategy

For reliable operation of the ATV32HD15N4 Variable Speed Drive:

• Record fault history regularly
• Maintain clean cooling channels
• Monitor motor current trends
• Keep parameter backups
• Inspect electrical connections

A practical engineering rule:

“When an ATV32HD15N4 fault occurs, diagnose the complete motor-drive system before replacing the drive unit.”

Recommended troubleshooting sequence:

Fault history review → Power measurement → Parameter verification → Motor inspection → Mechanical load analysis → Final operation test.
