Bently Nevada 3500/72 176449-08+135489-01 Reciprocating Rod Position Monitor + I/O Module
Bently Nevada 3500/72 176449-08+135489-01 Reciprocating Rod Position Monitor + I/O Module
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/72 Product Origin:USA Product Dimensions:241.3 x 24.4 x 241.8 mm Product Weight:0.91 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

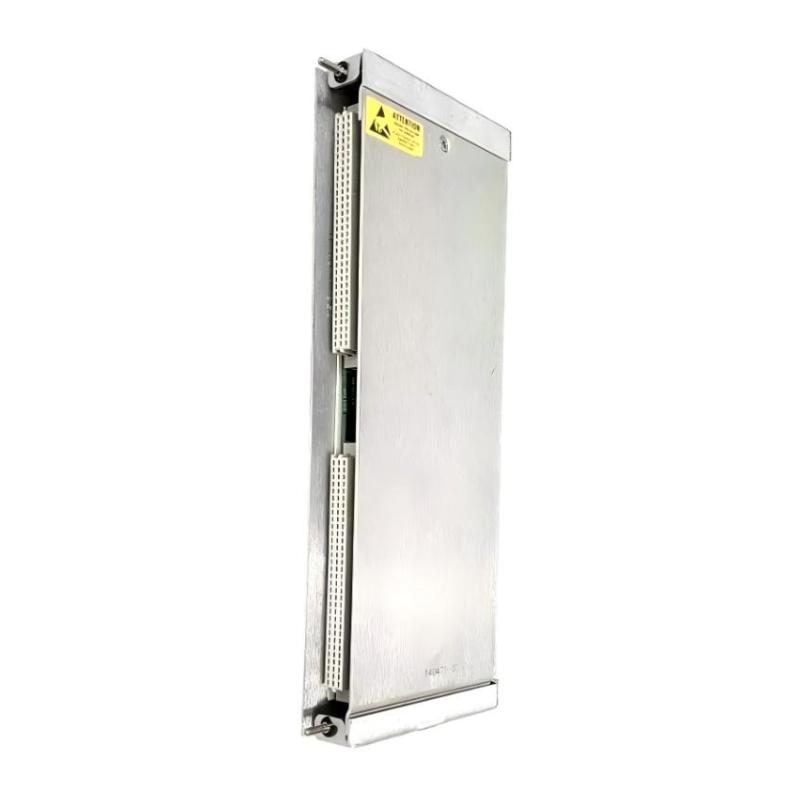

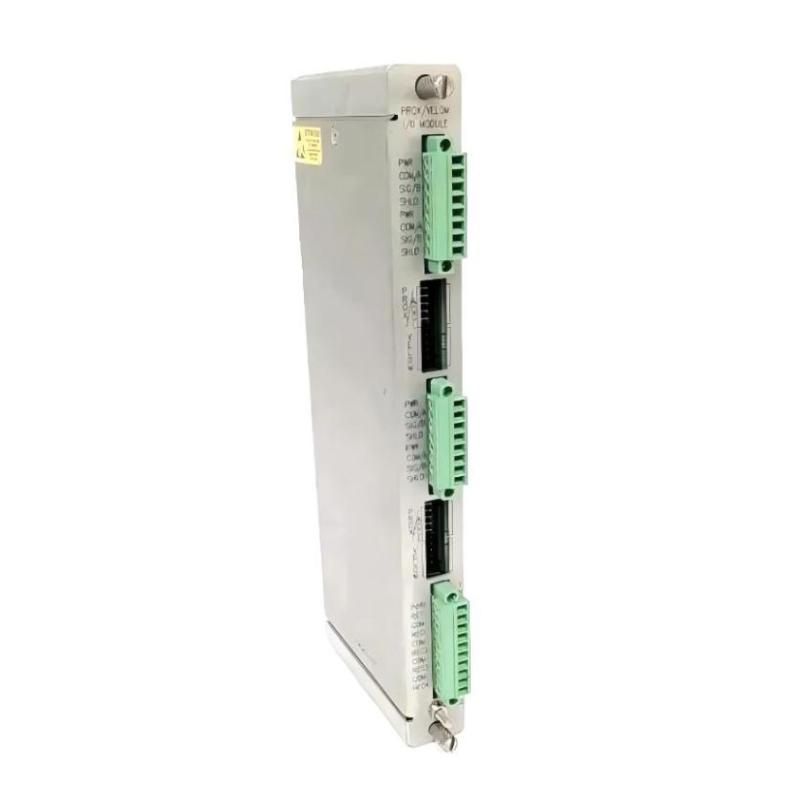

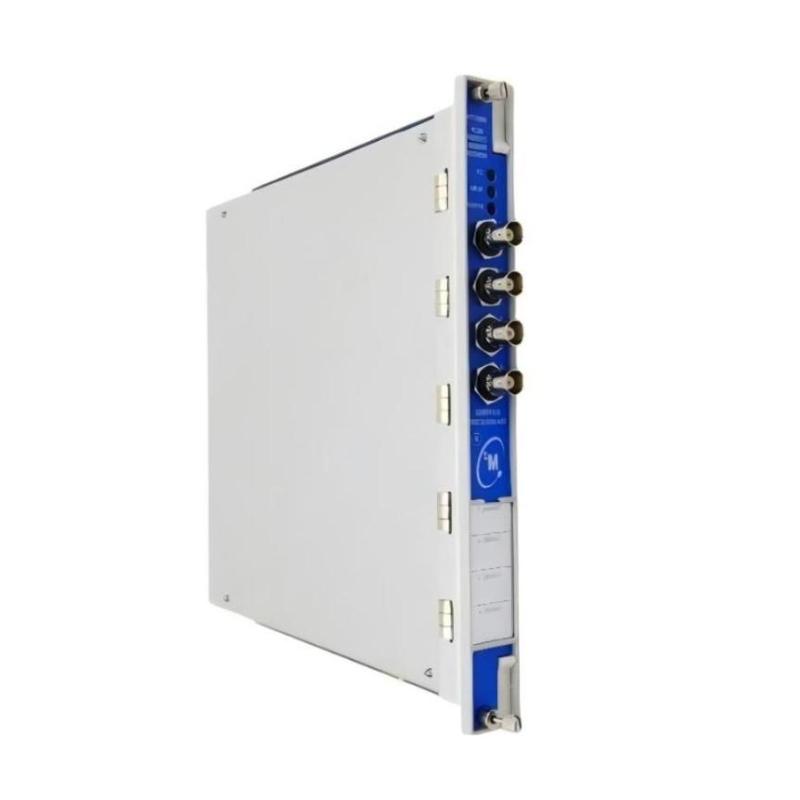

The Bently Nevada 3500/72 176449-08 Reciprocating Rod Position Monitor, combined with the 135489-01 I/O Module, delivers precise rod motion monitoring for reciprocating equipment. Its robust design and seamless integration into the 3500 platform make it an essential component for protecting high-value machinery and ensuring stable, efficient operation.
Technical Specifications
Specification Item
Details
Model
3500/72
Monitor Part No.
176449-08
I/O Module Part No.
135489-01
Product Type
Reciprocating Rod Position Monitor
Dimensions
241.3 × 24.4 × 241.8 mm
Weight
0.91 kg
Monitoring Function
Rod position monitoring
System Compatibility
Bently Nevada 3500 Series
Installation Location
3500 Series rack
Operating Mode
Continuous industrial operation
Recommended Related Modules
Bently Nevada 3500/45 Position Monitor
Bently Nevada 3500/65 16-Channel Temperature Monitor
Bently Nevada 3500/22 Transient Data Interface Module
Popular Related Models
Bently Nevada 3500/72 Reciprocating Rod Position Monitor
The Bently Nevada 3500/72 Reciprocating Rod Position Monitor is specifically engineered for monitoring rod position and related motion parameters in reciprocating machinery. It is commonly deployed in reciprocating compressors, pumps, and engines across oil & gas, petrochemical, refining, and power generation industries where accurate rod position measurement is critical for machinery protection and performance optimization.
Key Performance Highlights
Dedicated for Reciprocating Machines: Optimized for rod position monitoring rather than rotating shaft measurements.
High-Accuracy Position Tracking: Enables precise detection of rod movement and position changes.
Integrated I/O Module: Provides stable signal conditioning and seamless system communication.
Full 3500 Series Compatibility: Installs directly into Bently Nevada 3500 racks without additional adapters.
Industrial Reliability: Designed for continuous operation under vibration, temperature variation, and electrical interference.
Common Questions & Answers
What is the main purpose of the 3500/72 module?
It monitors rod position in reciprocating machinery to support protection and diagnostics.
Which machines typically use this module?
Reciprocating compressors, pumps, and engines.
Does this package include an I/O module?
Yes, it includes the 135489-01 I/O module.
Is it suitable for continuous monitoring?
Yes, it is designed for 24/7 industrial operation.
Can it be installed in any 3500 rack?
Yes, it is fully compatible with standard 3500 Series racks.
What are the physical dimensions?
241.3 × 24.4 × 241.8 mm.
What is the approximate weight?
About 0.91 kg.
How does it improve machinery protection?
By detecting abnormal rod motion that could indicate wear or mechanical faults.
Is it resistant to harsh industrial environments?
Yes, it is built to withstand vibration, EMI, and temperature stress.
Does it support condition-based maintenance strategies?
Yes, it provides critical data for predictive maintenance programs.
