Product Overview

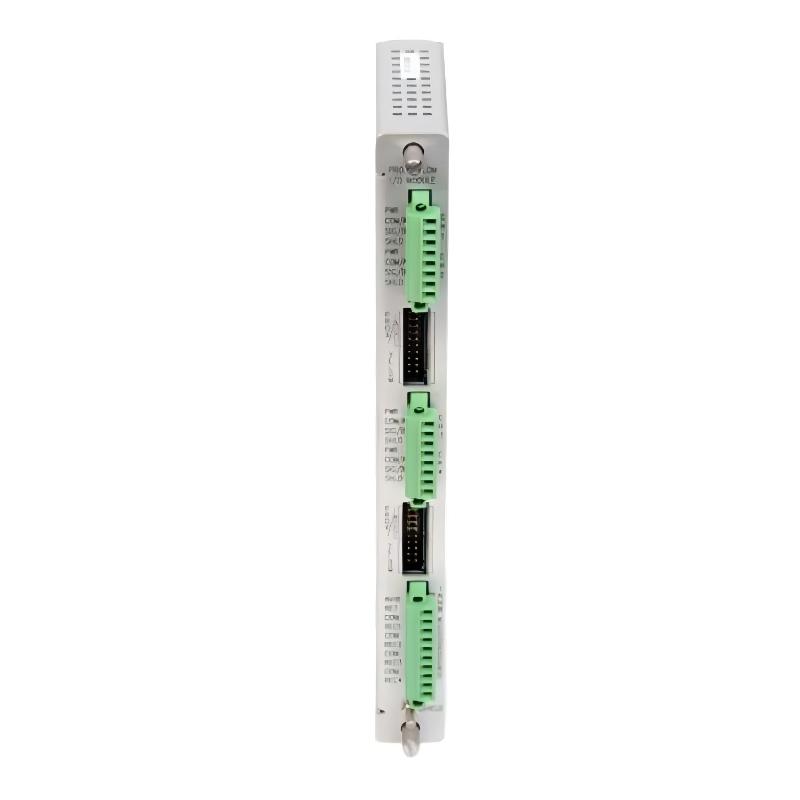

The Bently Nevada 3500/77M 143737-01 Cylinder Pressure Input/Output Module serves as a critical interface for capturing cylinder pressure data in reciprocating machinery. By delivering accurate signal conditioning and seamless integration within the 3500 platform, it supports reliable diagnostics, machinery protection, and performance optimization.

Technical Specifications

Specification Item	Details
Model	3500/77M
Part Number	143737-01
Product Type	Cylinder Pressure I/O Module
Dimensions	241.3 × 24.4 × 99.1 mm
Weight	0.2 kg
Signal Type	Cylinder pressure
System Compatibility	Bently Nevada 3500 Series
Installation	3500 rack-mounted
Operating Mode	Continuous industrial operation

Recommended Related Modules

Bently Nevada 3500/72 Reciprocating Rod Position Monitor
Bently Nevada 3500/70M Reciprocating Compressor Monitor
Bently Nevada 3500/22 Transient Data Interface Module

Popular Related Models

Bently Nevada 3500/70 – Reciprocating Pulse Velocity Monitor
Bently Nevada 3500/72 – Reciprocating Rod Position Monitor
Bently Nevada 3500/22 – Transient Data Interface Module
Bently Nevada 3500/42M – Preamplifier Seismic Monitor
Bently Nevada 3500/60 – Temperature Monitor

Application Environments

The Bently Nevada 3500/77M Cylinder Pressure I/O Module is designed for acquiring and conditioning cylinder pressure signals in reciprocating machinery. It is widely used in reciprocating compressors and engines within oil & gas, petrochemical, refining, and power generation facilities, where accurate cylinder pressure data is essential for performance analysis and machinery protection.

Key Performance Highlights

Dedicated Cylinder Pressure Interface: Specifically developed for dynamic pressure measurement in reciprocating cylinders.
Accurate Signal Conditioning: Ensures stable and reliable transmission of pressure signals to the monitoring system.
Seamless 3500 System Integration: Fully compatible with Bently Nevada 3500 Series monitors and racks.
Supports Advanced Diagnostics: Enables analysis of compression efficiency, valve condition, and combustion behavior.
Industrial-Grade Design: Suitable for continuous operation in demanding industrial environments.

Common Questions & Answers

What is the function of the 3500/77M module?
It provides input and output interfaces for cylinder pressure measurements.
Which machines typically use this module?
Reciprocating compressors and engines.
Is this a monitoring module or an I/O module?
It is an I/O module used in conjunction with compatible 3500 monitors.
Can it be installed in a standard 3500 rack?
Yes, it fits directly into the 3500 Series rack.
What type of data does it handle?
Dynamic cylinder pressure signals.
Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial use.
What are the physical dimensions?
241.3 × 24.4 × 99.1 mm.
What is the approximate weight?
About 0.2 kg.
Does it support machinery diagnostics?
Yes, it enables advanced condition monitoring and analysis.
Is it resistant to harsh operating conditions?
Yes, it is built to withstand vibration and electrical noise.
