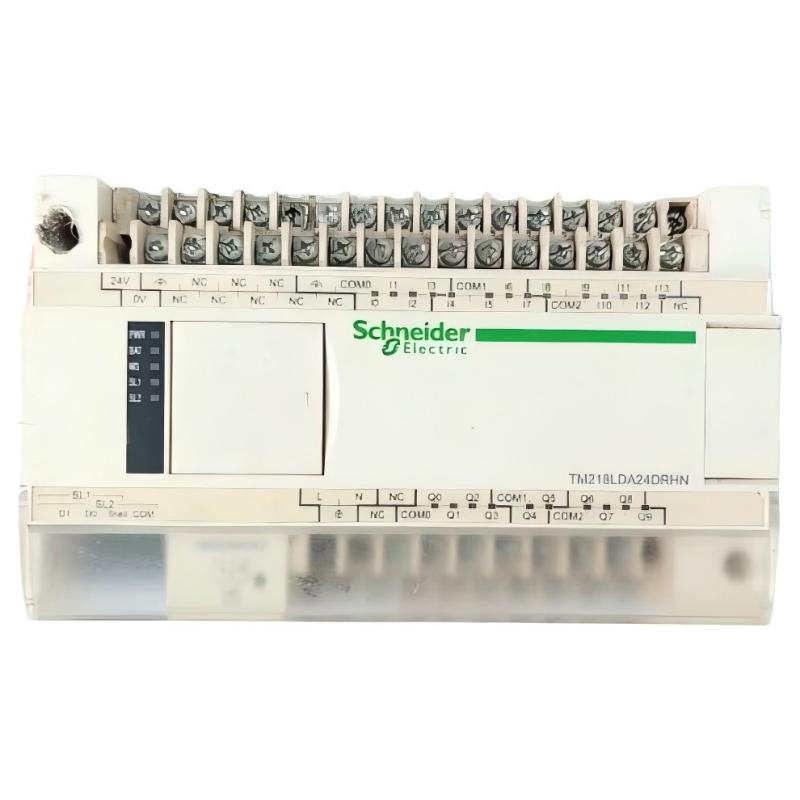

Schneider TM218LDA24DRHN Modicon M218 Logic Controller

Industrial Applications and Flexible Machine Control

The Schneider TM218LDA24DRHN Modicon M218 Logic Controller is a compact programmable controller designed for machine automation systems requiring reliable processing, flexible I/O control, and efficient equipment management. It provides PLC logic execution, digital signal handling, relay output control, high-speed input processing, and expansion capability within a compact industrial housing.

The TM218LDA24DRHN is suitable for a wide range of automation applications, including:

• Packaging and assembly machines
• Conveyor and material handling systems
• Automated production equipment
• Industrial testing machines
• Small manufacturing systems
• OEM machine control applications
• Process monitoring equipment

With its integrated I/O resources, reliable relay outputs, high-speed signal processing capability, and modular expansion design, the TM218LDA24DRHN provides engineers with a practical PLC solution for developing efficient and dependable automation systems.

Engineering Advantages and Performance Benefits

The Schneider TM218LDA24DRHN Modicon M218 Logic Controller combines compact design with powerful control functions to support modern industrial automation requirements.

Integrated PLC Processing Platform
The TM218LDA24DRHN combines CPU processing, digital I/O management, communication functions, and application memory into a single controller, helping simplify machine design and reduce system complexity.

Flexible Digital I/O Management
The controller provides 24 digital I/O points, allowing connection with various industrial sensors, switches, and actuators for efficient machine control.

High-Speed Signal Processing Capability
Integrated high-speed input functions allow the controller to process pulse signals from sensors and encoders, supporting applications involving counting, speed monitoring, and position detection.

Reliable Relay Output Control
The relay output structure provides flexible switching performance for industrial devices such as contactors, valves, motors, and other automation components.

Expandable Automation Architecture
The TM218LDA24DRHN supports compatible expansion modules, enabling users to increase system capacity and adapt automation solutions for future requirements.

Efficient Programming and Maintenance
The controller supports structured PLC programming methods, helping engineers develop organized control applications with easier troubleshooting and maintenance.

Technical FAQs and Troubleshooting Guide

Q1: What is the main function of the Schneider TM218LDA24DRHN?
A: The TM218LDA24DRHN is a PLC controller used for executing automation programs, processing field signals, and controlling industrial machinery.

Q2: What type of outputs does the TM218LDA24DRHN provide?
A: The controller uses relay outputs, providing flexible switching capability for various industrial loads.

Q3: Why does the controller fail to power on?
A: Possible causes include incorrect power wiring, unstable voltage supply, loose terminal connections, or internal hardware faults.

Q4: How can communication problems with the controller be diagnosed?
A: Check communication wiring, interface configuration, software settings, and controller operating status.

Q5: Why are relay outputs not responding correctly?
A: Possible causes include incorrect PLC logic, output configuration errors, wiring problems, or external device failures.

Q6: How can high-speed input faults be resolved?
A: Verify sensor connections, input signal quality, frequency settings, grounding conditions, and PLC configuration parameters.

Q7: What causes slow PLC program execution?
A: Possible causes include complex application logic, excessive communication operations, or inefficient program structures.

Q8: Can the TM218LDA24DRHN be expanded for larger systems?
A: Yes, compatible expansion modules can be added to increase I/O capacity and extend system functionality.

Q9: Why can the programming software not connect to the controller?
A: Common causes include incorrect communication settings, cable issues, driver problems, or incompatible software configuration.

Q10: How can the reliability of the TM218LDA24DRHN be improved?
A: Proper installation, regular inspection, stable power supply, environmental protection, and program backups help maintain reliable operation.
